Digital video connections

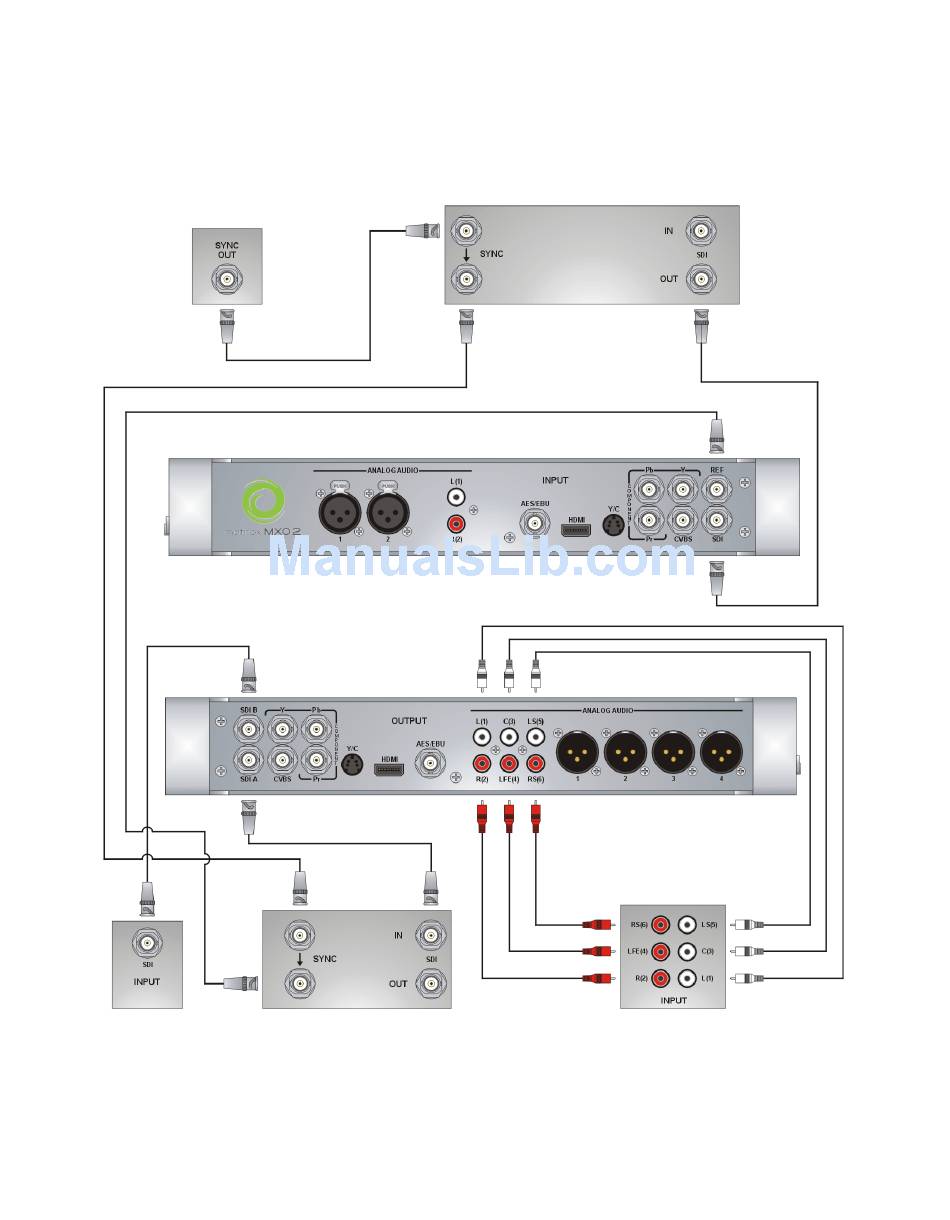

In this illustration, we're using SDI connectors for video and audio, an SDI
connector for video monitoring, and we're monitoring the audio on a surround
sound speaker system through RCA connectors. The video is genlocked using a
tri-level sync generator.
Tri-level
sync
generator
Video monitor
Chapter 3, Connecting External Devices to Matrox MXO2
MXO2 Inputs
MXO2 Outputs
Recorder (Deck 2)
Source
(Deck 1)
Surround sound
speaker system
