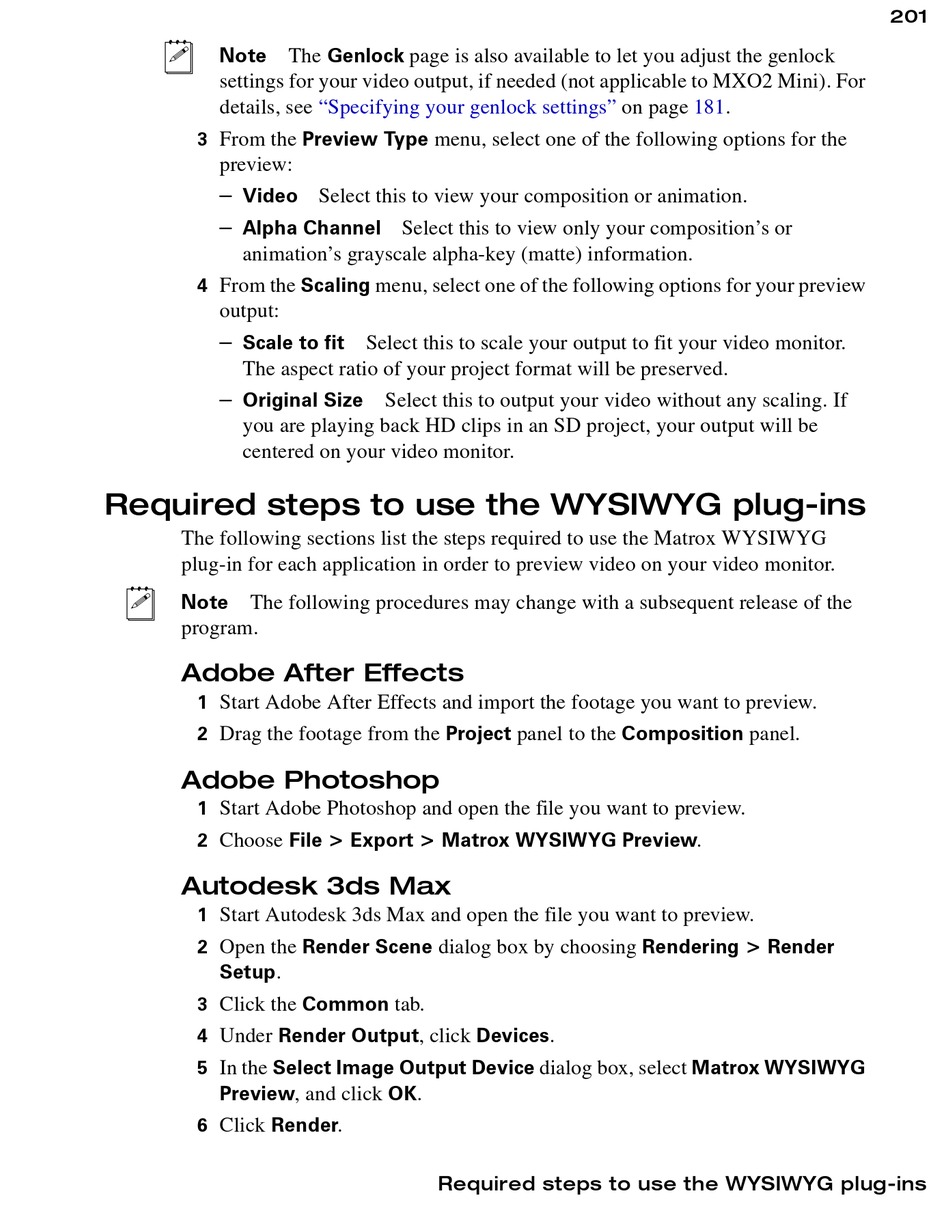

Required Steps To Use The Wysiwyg Plug-Ins; Adobe After Effects; Adobe Photoshop; Autodesk 3Ds Max - Matrox MXO2 Installation And User Manual

¦ Note
settings for your video output, if needed (not applicable to MXO2 Mini). For
details, see
From the Preview Type menu, select one of the following options for the
3
preview:
Video
$
Alpha Channel
$
animation's grayscale alpha-key (matte) information.
4 From the Scaling menu, select one of the following options for your preview
output:
Scale to fit
$
The aspect ratio of your project format will be preserved.
Original Size
$
you are playing back HD clips in an SD project, your output will be
centered on your video monitor.

Required steps to use the WYSIWYG plug-ins

The following sections list the steps required to use the Matrox WYSIWYG
plug-in for each application in order to preview video on your video monitor.
¦ Note
The following procedures may change with a subsequent release of the
program.

Adobe After Effects

1 Start Adobe After Effects and import the footage you want to preview.
Drag the footage from the Project panel to the Composition panel.
2

Adobe Photoshop

Start Adobe Photoshop and open the file you want to preview.
1
Choose File > Export > Matrox WYSIWYG Preview .
2

Autodesk 3ds Max

Start Autodesk 3ds Max and open the file you want to preview.
1
Open the Render Scene dialog box by choosing Rendering > Render
2
Setup .
Click the Common tab.
3
Under Render Output , click Devices .
4
In the Select Image Output Device dialog box, select Matrox WYSIWYG
5
Preview
Click Render .
6
The Genlock page is also available to let you adjust the genlock
"Specifying your genlock settings"
Select this to view your composition or animation.
Select this to view only your composition's or
Select this to scale your output to fit your video monitor.
Select this to output your video without any scaling. If
, and click OK .
Required steps to use the WYSIWYG plug-ins
on page 181.
201
