Using The Luma Key Graph - Matrox MXO2 Installation And User Manual

138
of the Low Gain control as defining a "Transparent to Opaque" range for
keying the dark areas of your foreground image.
• High Clip This control is similar to Low Clip , except you use it to select
the higher (brighter) luminance values to be keyed.
• High Gain This control is similar to Low Gain , except you use it to set the
range of luminance values you want to be partially transparent based on the
value set by the High Clip control. You can think of the High Gain control
as defining an "Opaque to Transparent" range for keying the lighter areas of
your foreground image.
The values you can select using the Low Clip and Low Gain controls are
dependent on the High Clip and High Gain controls, and vice versa. This
prevents the low and high controls from keying on the same luminance
values.
• Mask
see
• Transparent Outside Mask Select this option to apply transparency
outside the mask area. This allows you to define a mask area where you want
the keying to be performed, and show only your underlying image outside
the mask. For more information, see
effects"
• Invert Key Select this to invert the key selection, giving you the opposite
result of what you originally selected
• Show Key as Output Select this to display the matte used to create your
key effect. This enables you to further refine your key settings. For example,
when you display the matte, areas of your clip that are completely
transparent appear as black, and opaque areas appear as white. If you notice
some white spots that you want to key, you can adjust the key controls until
the undesired white spots disappear.

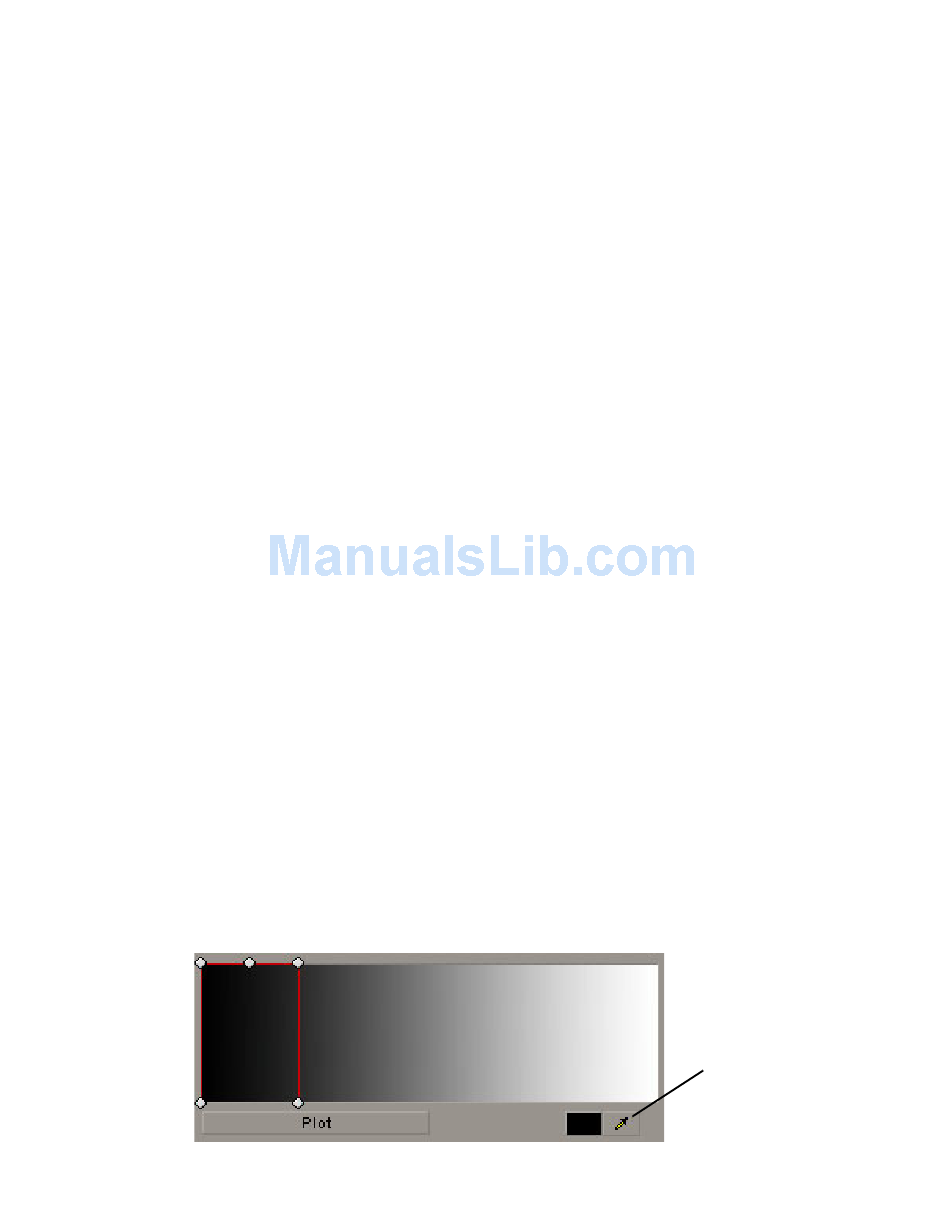

Using the luma key graph

The luma key graph contains a luminance spectrum and a luminance eyedropper.
You can drag the handles in the luminance spectrum to adjust the Transparency ,
Low Clip
Chapter 9, Setting Up Matrox Effects with Adobe Premiere Pro
Allows you to apply a mask to your effect. For more information,
"Applying a mask to your Matrox effects"
on page 102.
, High Clip , Low Gain , and High Gain properties.
on page 102.
"Applying a mask to your Matrox
Eyedropper
