74

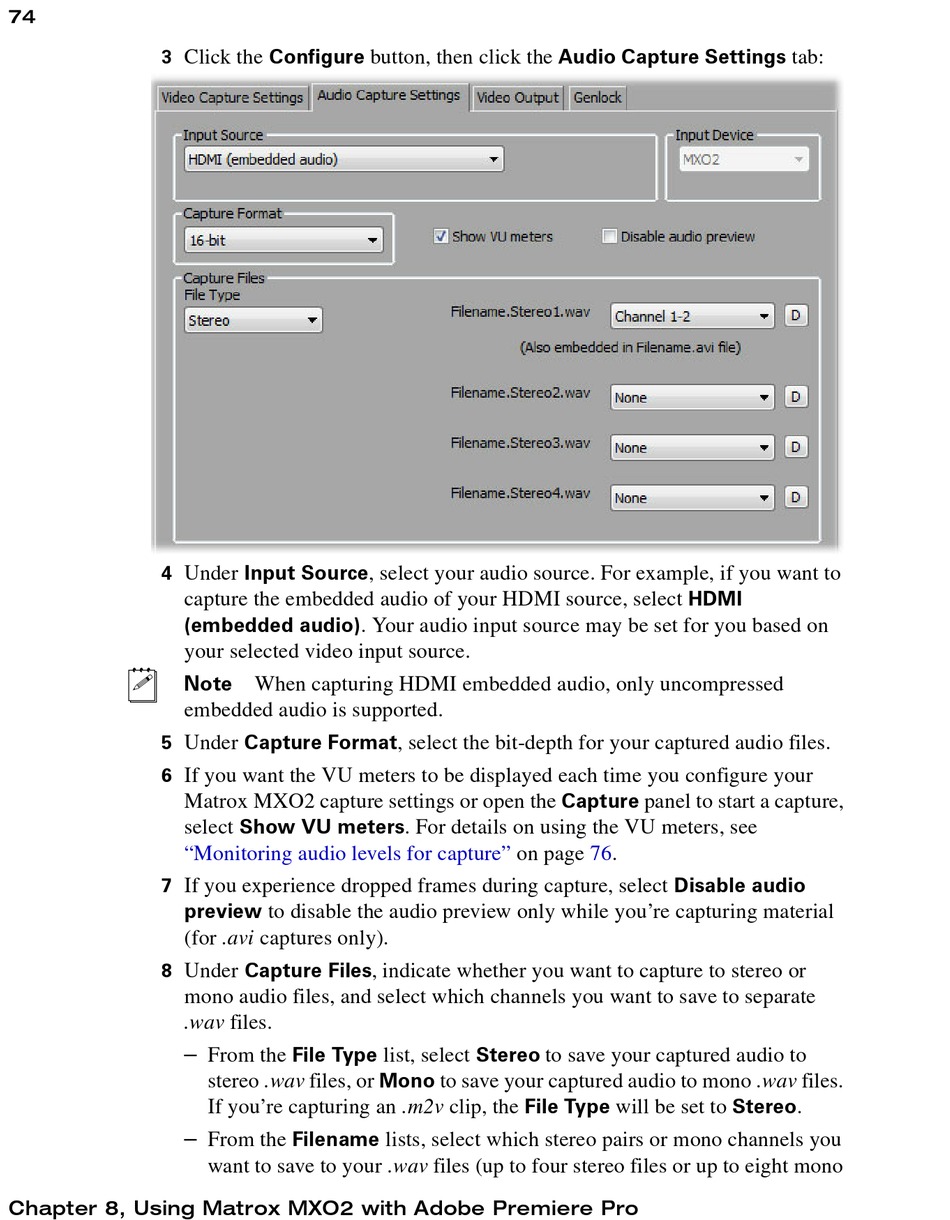

Click the Configure button, then click the Audio Capture Settings tab:
3
Under Input Source , select your audio source. For example, if you want to
4
capture the embedded audio of your HDMI source, select HDMI
(embedded audio)
your selected video input source.
¦ Note
embedded audio is supported.
Under Capture Format , select the bit-depth for your captured audio files.
5
If you want the VU meters to be displayed each time you configure your
6
Matrox MXO2 capture settings or open the Capture panel to start a capture,
select Show VU meters . For details on using the VU meters, see
"Monitoring audio levels for capture"
If you experience dropped frames during capture, select Disable audio
7
preview
(for .avi captures only).
Under Capture Files , indicate whether you want to capture to stereo or
8
mono audio files, and select which channels you want to save to separate
.wav files.
$
$
Chapter 8, Using Matrox MXO2 with Adobe Premiere Pro
. Your audio input source may be set for you based on
When capturing HDMI embedded audio, only uncompressed
to disable the audio preview only while you're capturing material
From the File Type list, select Stereo to save your captured audio to
stereo .wav files, or Mono to save your captured audio to mono .wav files.
If you're capturing an .m2v clip, the File Type will be set to Stereo .
From the Filename lists, select which stereo pairs or mono channels you
want to save to your .wav files (up to four stereo files or up to eight mono
on page 76.
