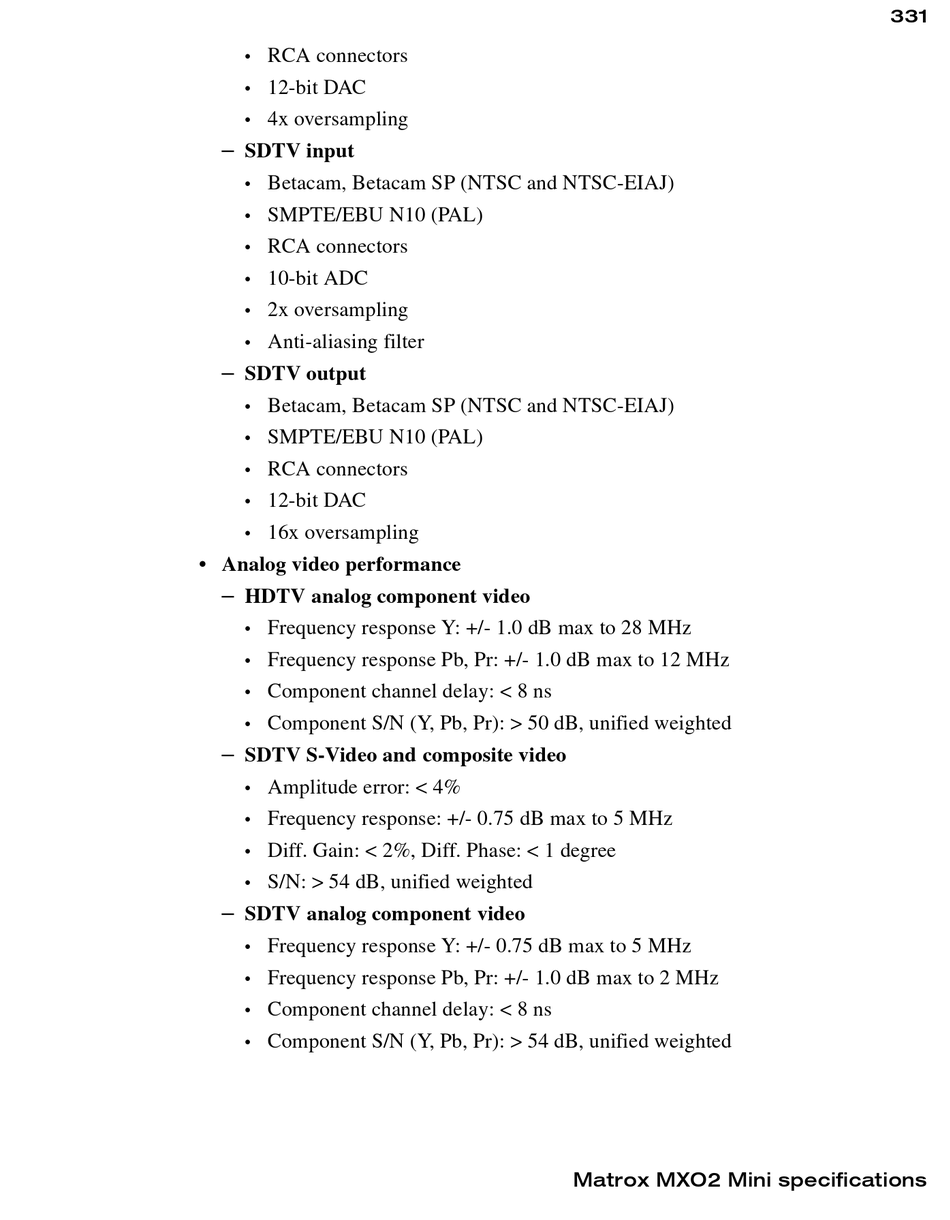

RCA connectors
•
12-bit DAC
•
4x oversampling
•
SDTV input
$
Betacam, Betacam SP (NTSC and NTSC-EIAJ)
•
SMPTE/EBU N10 (PAL)
•
RCA connectors
•
10-bit ADC
•
2x oversampling
•
Anti-aliasing filter
•
SDTV output
$
Betacam, Betacam SP (NTSC and NTSC-EIAJ)
•
SMPTE/EBU N10 (PAL)
•
RCA connectors
•
12-bit DAC
•
16x oversampling
•
• Analog video performance
HDTV analog component video
$
Frequency response Y: +/- 1.0 dB max to 28 MHz
•
Frequency response Pb, Pr: +/- 1.0 dB max to 12 MHz
•
Component channel delay: < 8 ns
•
Component S/N (Y, Pb, Pr): > 50 dB, unified weighted
•
SDTV S-Video and composite video
$
Amplitude error: < 4%
•
Frequency response: +/- 0.75 dB max to 5 MHz
•
Diff. Gain: < 2%, Diff. Phase: < 1 degree
•
S/N: > 54 dB, unified weighted
•
SDTV analog component video
$
Frequency response Y: +/- 0.75 dB max to 5 MHz
•
Frequency response Pb, Pr: +/- 1.0 dB max to 2 MHz
•
Component channel delay: < 8 ns
•
Component S/N (Y, Pb, Pr): > 54 dB, unified weighted
•
Matrox MXO2 Mini specifications
331
