Typical Matrox MXO2 connections

In the following typical connection examples, we've connected a monitor to view
the signal that will be recorded, and separate source and record decks. You may,
however, use the same deck as both your source and record device by making the
input and output connections to a single deck. For details on the Matrox MXO2
connectors, see

Analog component video connections

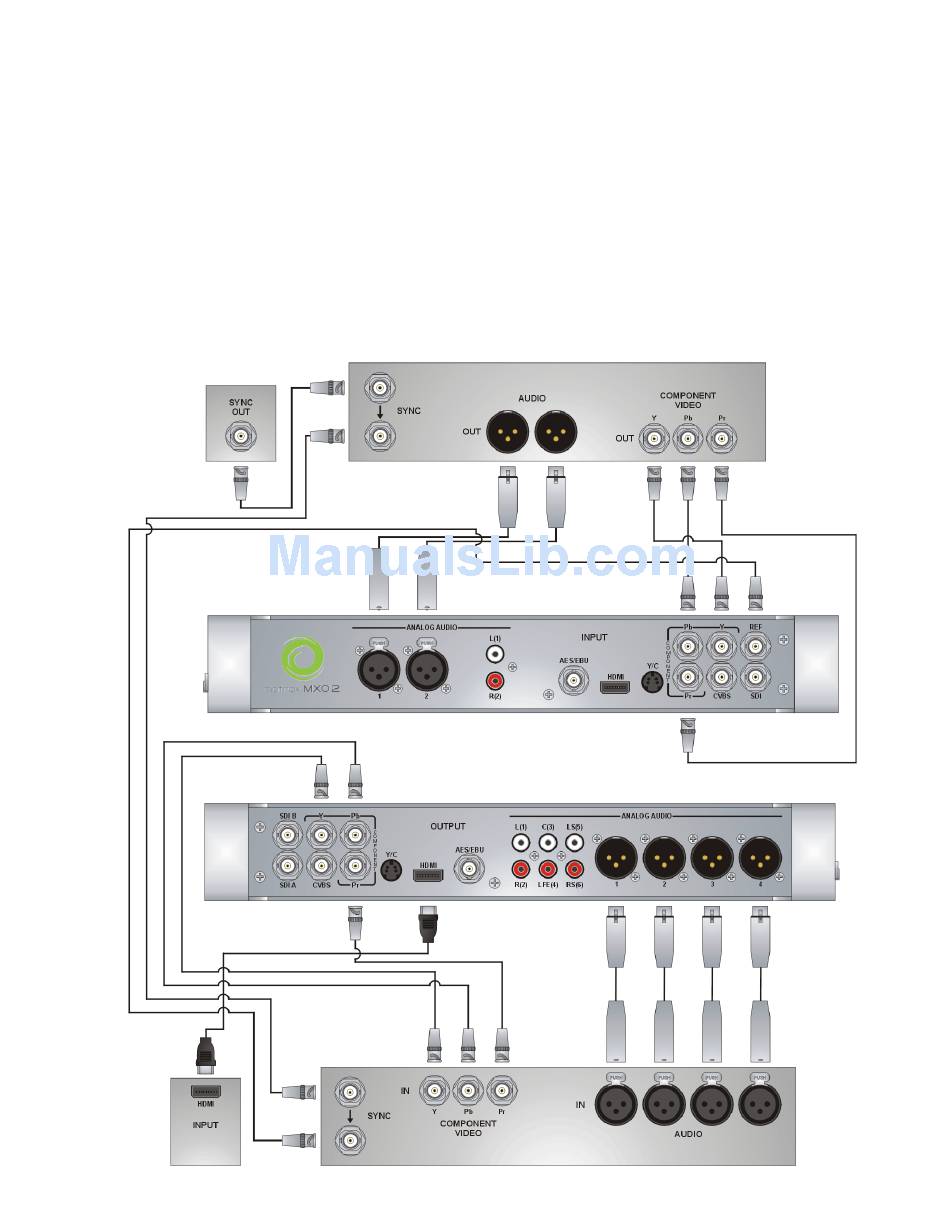

In this illustration, we're using analog component connectors for video, XLR
connectors for audio, and an HDMI connector for video monitoring. The video is
genlocked using a tri-level sync generator.
Tri-level
sync
generator
HDMI
monitor
Appendix B, "Matrox MXO2
MXO2 Inputs
MXO2 Outputs
Connectors."
Typical Matrox MXO2 connections
19
Source
(Deck 1)
Recorder
(Deck 2)
