Under Bit Depth , select the bit depth you want for your video.
1
¦ Note Matrox RT.X2 does not support 10-bit uncompressed video.
Under Scan Mode , select the scan mode of your video.
2
Click to save your selection. The settings you selected will be used each
3 OK
time you render material with your program, until you change the settings
again.

Configuring the Matrox MPEG-2 I-frame codecs

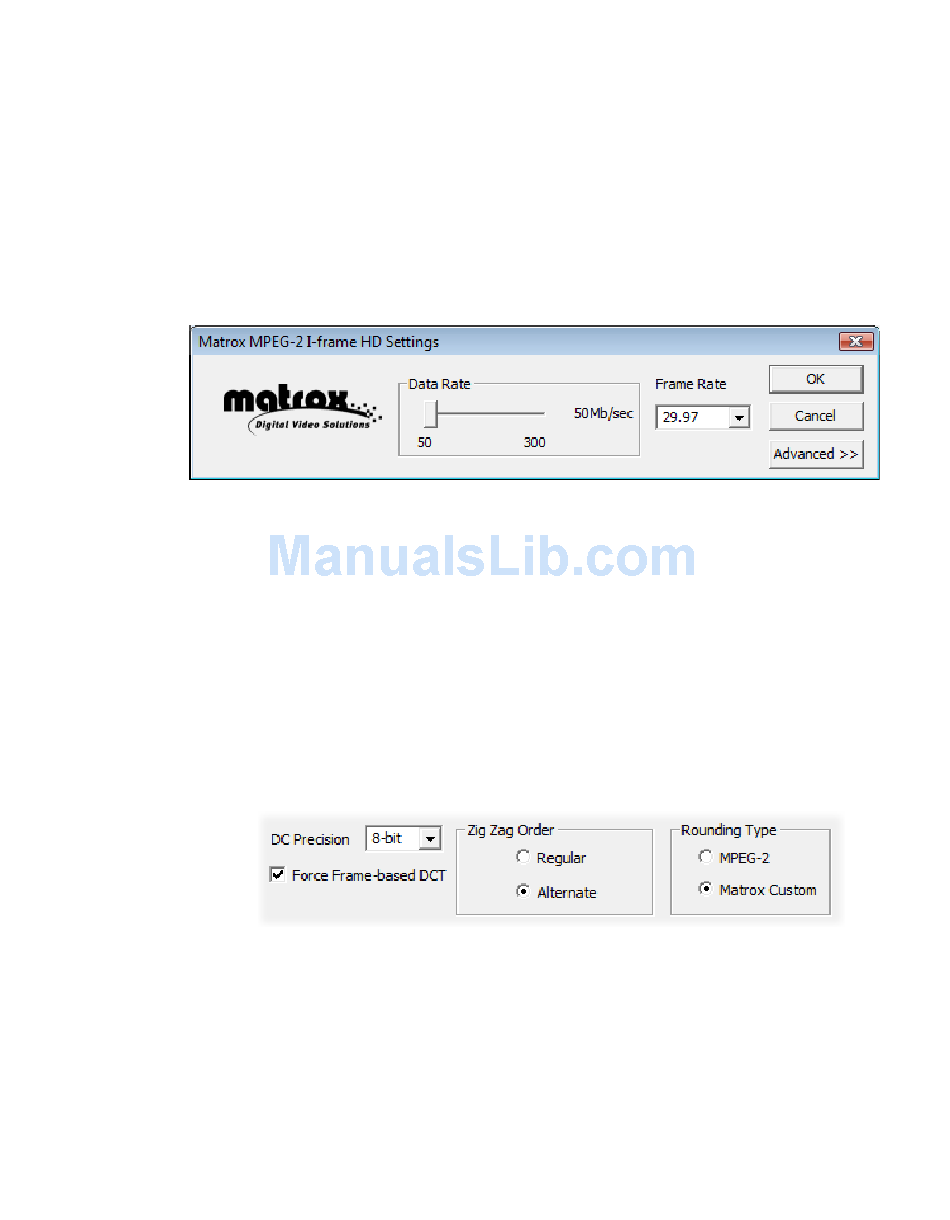

When you choose to configure a Matrox MPEG-2 I-frame codec (SD or HD
resolution), a dialog box similar to the following appears:
Drag the Data Rate slider until your desired data rate is displayed. The
1
higher the data rate you select, the better the video quality will be.
Depending on the capabilities of your system, however, you may not be able
to smoothly play back video at a high quality using your VFW program.
Beside Frame Rate , select a frame rate from the list. Make sure the frame
2
rate you select is appropriate for the format to which you are rendering.
To apply advanced settings to your MPEG-2 I-frame file, click the
3
Advanced button.
¦ Note The default advanced settings should provide good results for most
applications. It's recommended that you change these settings only when
needed for special purposes.
Beside DC Precision , select the bit-depth precision of the DC intra block.
4
The higher the DC precision value that's used to render your video, the more
likely that the DC content will be increased at the expense of the AC content
in the encoded stream. This may result in lowering the overall quality of the
compressed stream at a specified data rate.
Under Zig Zag Order , select one of the following:
5
