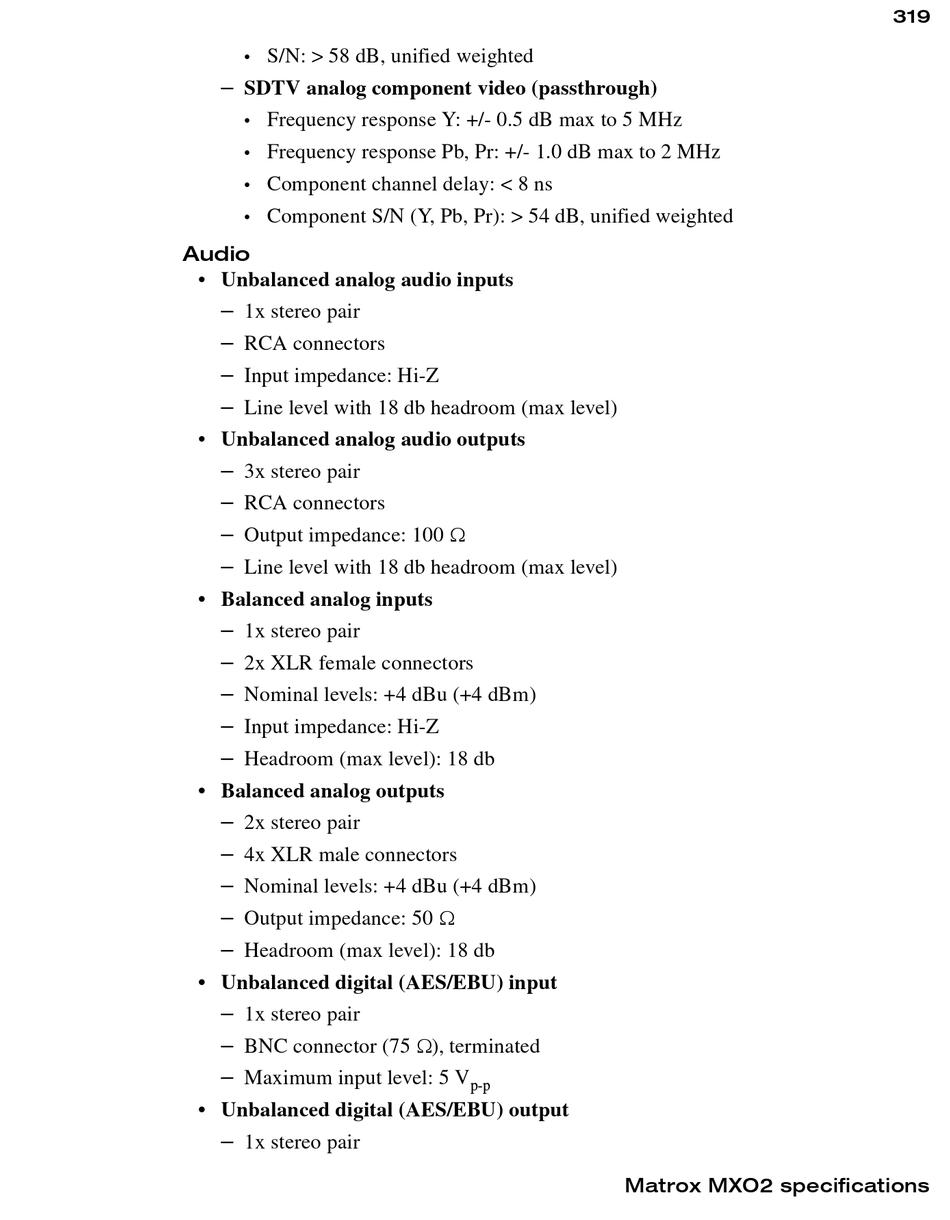

Matrox MXO2 Installation And User Manual page 339

S/N: > 58 dB, unified weighted
•
SDTV analog component video (passthrough)
$
Frequency response Y: +/- 0.5 dB max to 5 MHz
•
Frequency response Pb, Pr: +/- 1.0 dB max to 2 MHz
•
Component channel delay: < 8 ns
•
Component S/N (Y, Pb, Pr): > 54 dB, unified weighted
•
Audio
• Unbalanced analog audio inputs
1x stereo pair
$
RCA connectors
$
Input impedance: Hi-Z
$
Line level with 18 db headroom (max level)
$
• Unbalanced analog audio outputs
3x stereo pair
$
RCA connectors
$
Output impedance: 100 
$
Line level with 18 db headroom (max level)
$
• Balanced analog inputs
1x stereo pair
$
2x XLR female connectors
$
Nominal levels: +4 dBu (+4 dBm)
$
Input impedance: Hi-Z
$
Headroom (max level): 18 db
$
• Balanced analog outputs
2x stereo pair
$
4x XLR male connectors
$
Nominal levels: +4 dBu (+4 dBm)
$
Output impedance: 50 
$
Headroom (max level): 18 db
$
• Unbalanced digital (AES/EBU) input
1x stereo pair
$
BNC connector (75  ), terminated
$
Maximum input level: 5 V
$
• Unbalanced digital (AES/EBU) output
1x stereo pair
$
p-p
