MXO2 Rack RS-422 serial connection

The Matrox MXO2 Rack RS-422 serial connector lets you use RS-422 device
control with a supported video editing application when capturing material and
exporting your sequence to tape. This serial connection supports any device that
uses the RS-422 SMPTE time code protocol, such as a VTR or digital disk
recorder. For information on how to configure Matrox RS-422 device control
settings in Adobe Premiere Pro, see "Setting up Matrox device control" on
page 90.

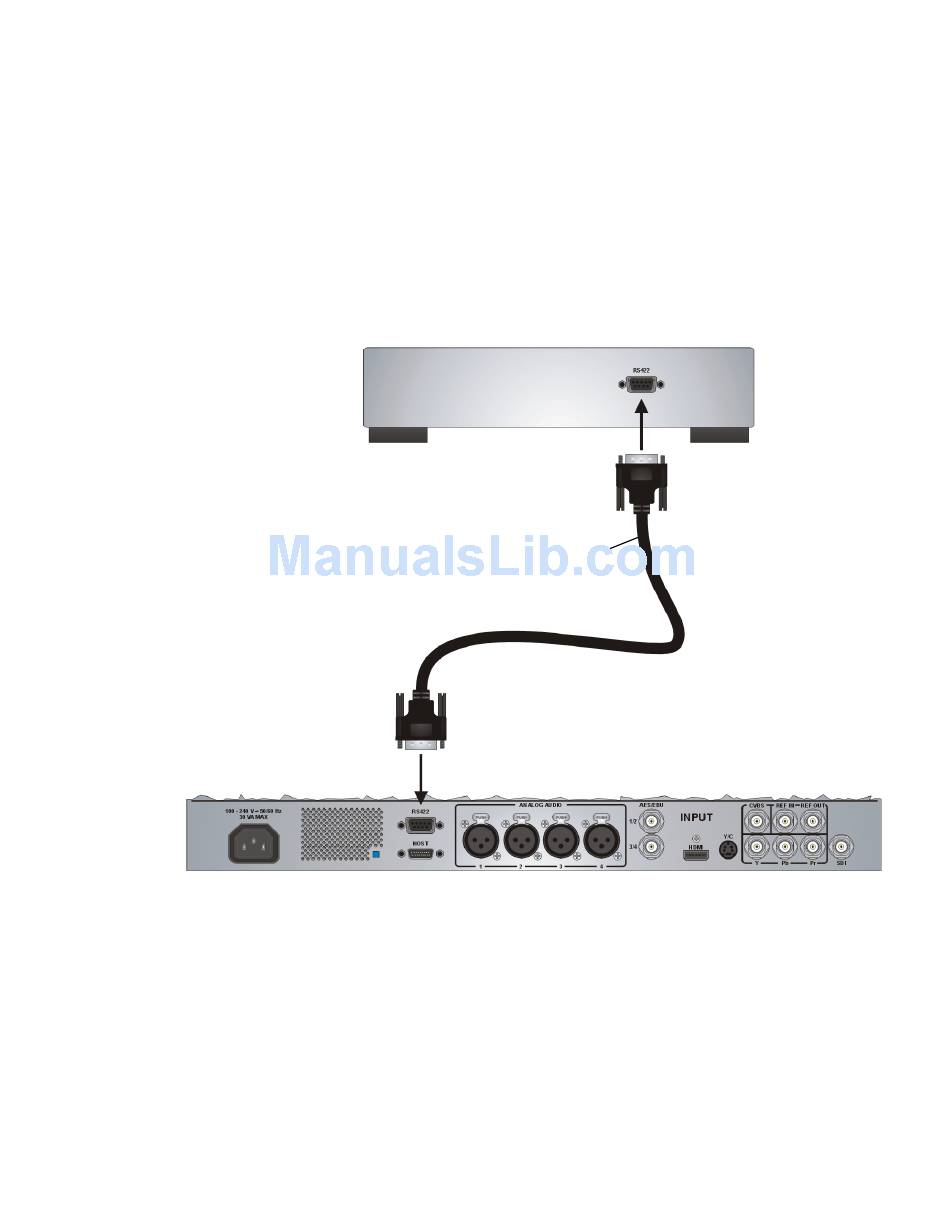

RS-422 device
RS-422 serial cable
MXO2 Rack
(partial view)
MXO2 Rack RS-422 serial connection
