258

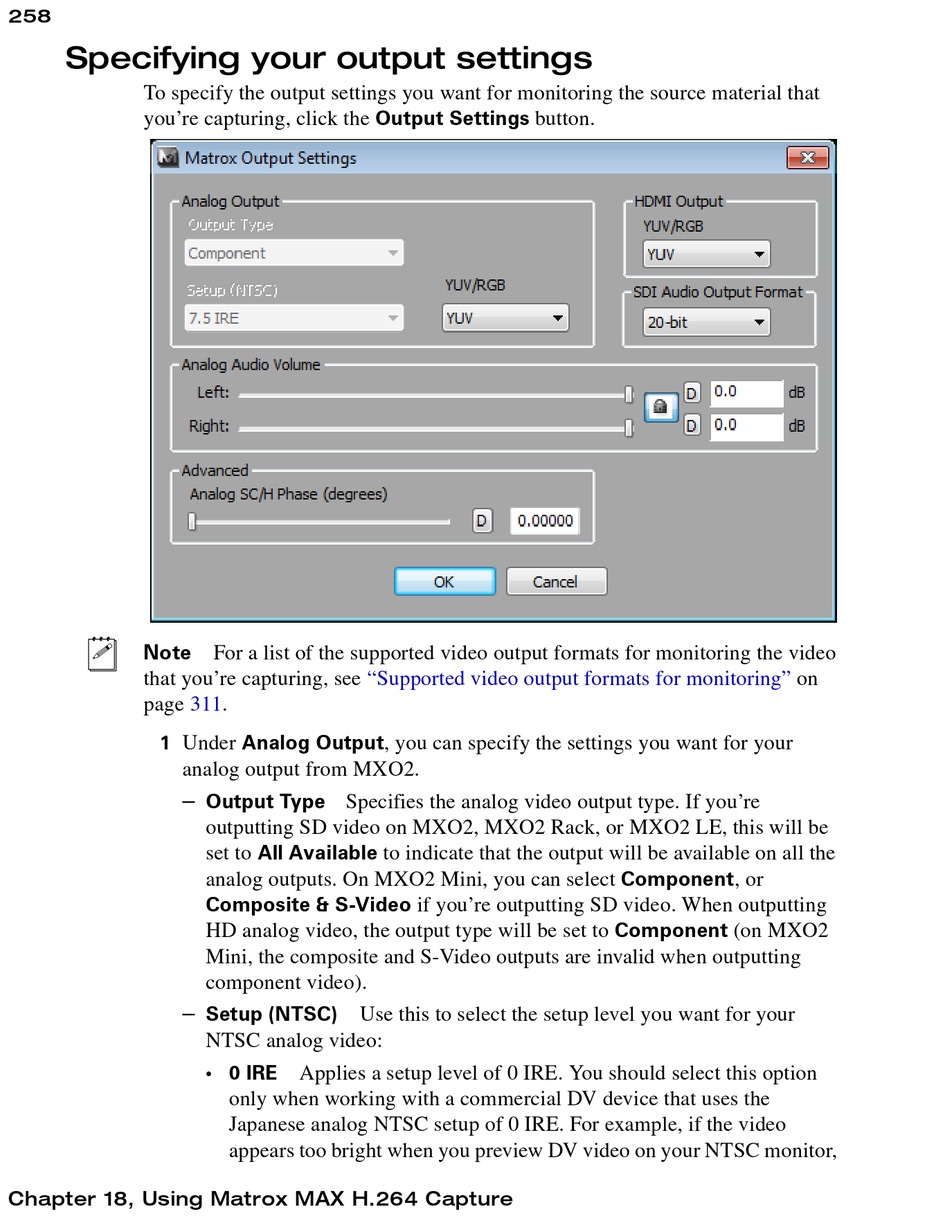

Specifying your output settings

To specify the output settings you want for monitoring the source material that
you're capturing, click the Output Settings button.
¦ Note
that you're capturing, see
page 311.
Under Analog Output , you can specify the settings you want for your
1
analog output from MXO2.
$
$
Chapter 18, Using Matrox MAX H.264 Capture
For a list of the supported video output formats for monitoring the video
"Supported video output formats for monitoring"
Output Type Specifies the analog video output type. If you're
outputting SD video on MXO2, MXO2 Rack, or MXO2 LE, this will be
set to All Available to indicate that the output will be available on all the
analog outputs. On MXO2 Mini, you can select Component , or
Composite & S-Video
HD analog video, the output type will be set to Component (on MXO2
Mini, the composite and S-Video outputs are invalid when outputting
component video).
Setup (NTSC) Use this to select the setup level you want for your
NTSC analog video:
0 IRE Applies a setup level of 0 IRE. You should select this option
•
only when working with a commercial DV device that uses the
Japanese analog NTSC setup of 0 IRE. For example, if the video
appears too bright when you preview DV video on your NTSC monitor,
if you're outputting SD video. When outputting
on
