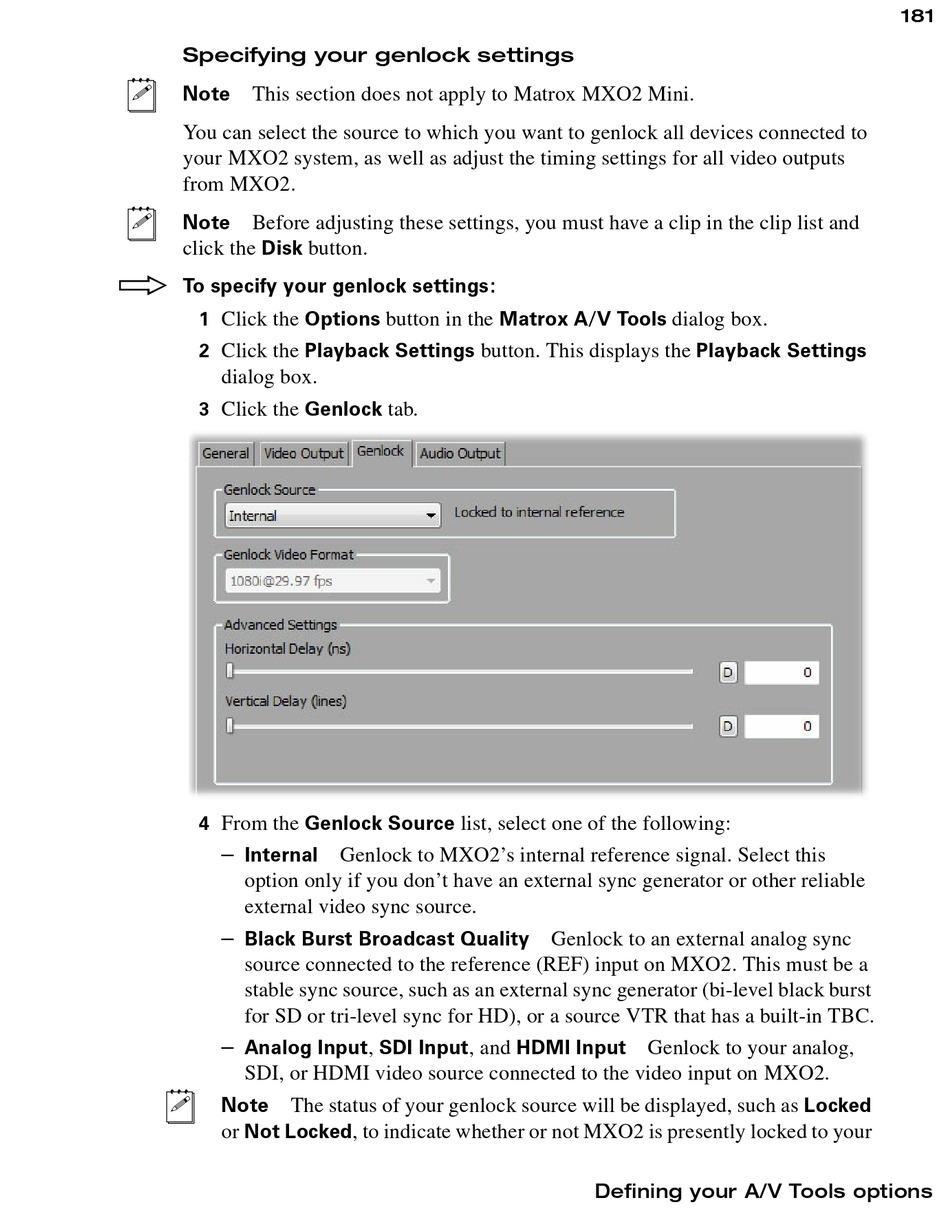

Specifying your genlock settings
¦ Note This section does not apply to Matrox MXO2 Mini.
You can select the source to which you want to genlock all devices connected to
your MXO2 system, as well as adjust the timing settings for all video outputs
from MXO2.
¦ Note Before adjusting these settings, you must have a clip in the clip list and
click the Disk button.
° To specify your genlock settings:
Click the Options button in the Matrox A/V Tools dialog box.
1
2 Click the Playback Settings button. This displays the Playback Settings
dialog box.
Click the Genlock tab.
3
From the Genlock Source list, select one of the following:
4
Internal
$
option only if you don't have an external sync generator or other reliable
external video sync source.
Black Burst Broadcast Quality
$
source connected to the reference (REF) input on MXO2. This must be a
stable sync source, such as an external sync generator (bi-level black burst
for SD or tri-level sync for HD), or a source VTR that has a built-in TBC.
Analog Input
$
SDI, or HDMI video source connected to the video input on MXO2.
¦ Note The status of your genlock source will be displayed, such as Locked
or Not Locked , to indicate whether or not MXO2 is presently locked to your
Genlock to MXO2's internal reference signal. Select this
, SDI Input , and HDMI Input Genlock to your analog,
Genlock to an external analog sync
Defining your A/V Tools options
181
