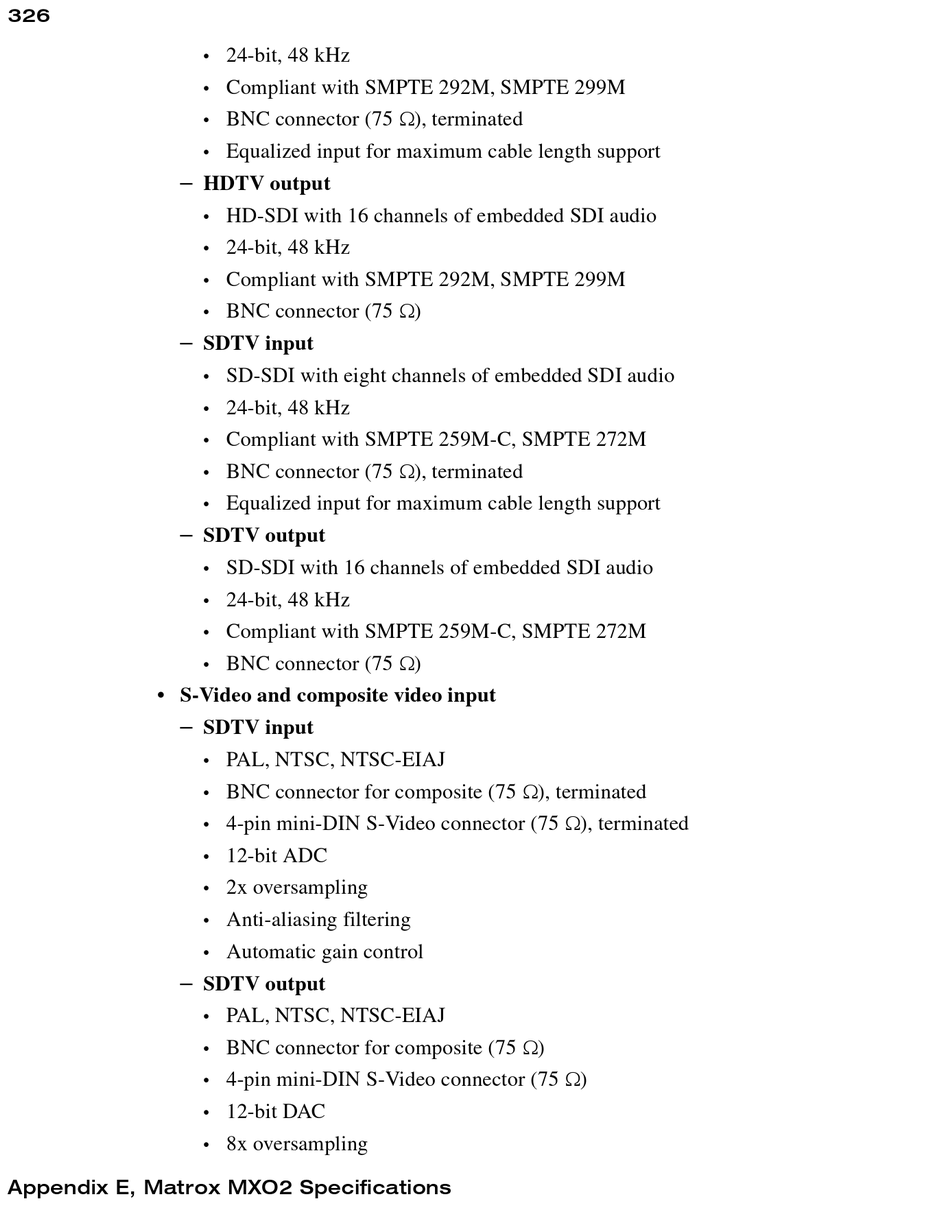

• S-Video and composite video input
$
$
Appendix E, Matrox MXO2 Specifications
24-bit, 48 kHz
•
Compliant with SMPTE 292M, SMPTE 299M
•
BNC connector (75  ), terminated
•
Equalized input for maximum cable length support
•
HDTV output
HD-SDI with 16 channels of embedded SDI audio
•
24-bit, 48 kHz
•
Compliant with SMPTE 292M, SMPTE 299M
•
BNC connector (75  )
•
SDTV input
SD-SDI with eight channels of embedded SDI audio
•
24-bit, 48 kHz
•
Compliant with SMPTE 259M-C, SMPTE 272M
•
BNC connector (75  ), terminated
•
Equalized input for maximum cable length support
•
SDTV output
SD-SDI with 16 channels of embedded SDI audio
•
24-bit, 48 kHz
•
Compliant with SMPTE 259M-C, SMPTE 272M
•
BNC connector (75  )
•
SDTV input
PAL, NTSC, NTSC-EIAJ
•
BNC connector for composite (75  ), terminated
•
4-pin mini-DIN S-Video connector (75  ), terminated
•
12-bit ADC
•
2x oversampling
•
Anti-aliasing filtering
•
Automatic gain control
•
SDTV output
PAL, NTSC, NTSC-EIAJ
•
BNC connector for composite (75  )
•
4-pin mini-DIN S-Video connector (75  )
•
12-bit DAC
•
8x oversampling
•
