Specifying your audio output settings
The audio output page lets you adjust various settings for your audio output from
your MXO2 system. For example, you can adjust the volume of your analog
audio output before or while playing back clips.
¦ Note Before adjusting these settings, you must have a clip in the clip list and
click the Disk button.
° To specify your audio output settings:
Click the Options button in the Matrox A/V Tools dialog box.
1
2 Click the Playback Settings button. This displays the Matrox Playback
Settings

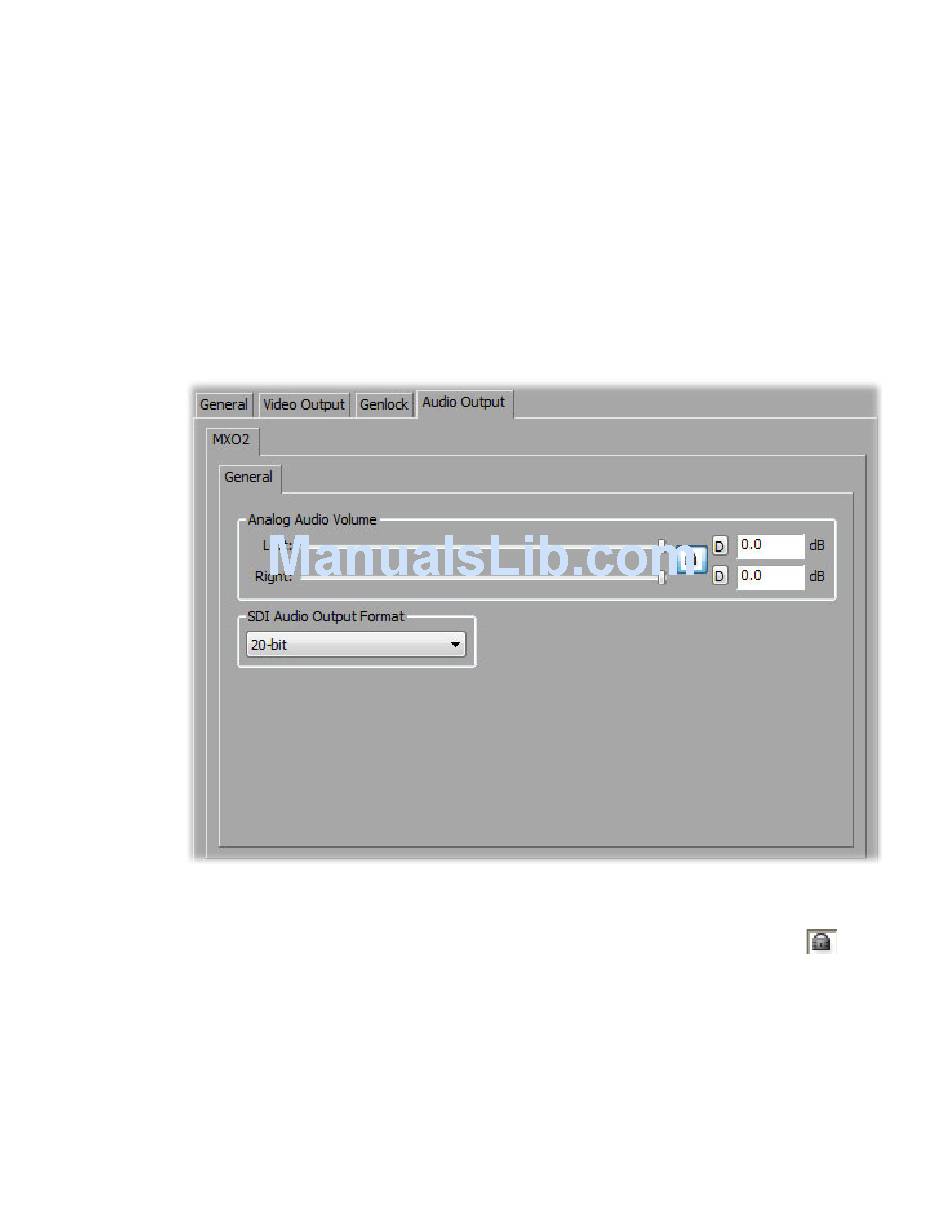

Click the Audio Output tab.
3
Under Analog Audio Volume , drag the sliders to adjust the volume of your
4
analog audio output. By default, the sliders are locked so that they move
together. To move each slider independently, click the lock button (
disable it.
Under SDI Audio Output Format , select the bit depth you want for your
5
embedded SDI audio output ( 20-bit or 24-bit ). This setting is not available
on MXO2 Mini.
6 Click OK to save your settings.
dialog box.
Defining your A/V Tools options
183
) to
