16

Connecting MXO2 to your computer

Connect MXO2 to your computer using the Matrox PCIe cable and the
appropriate Matrox host adapter.

Ensuring proper PCIe cable connection

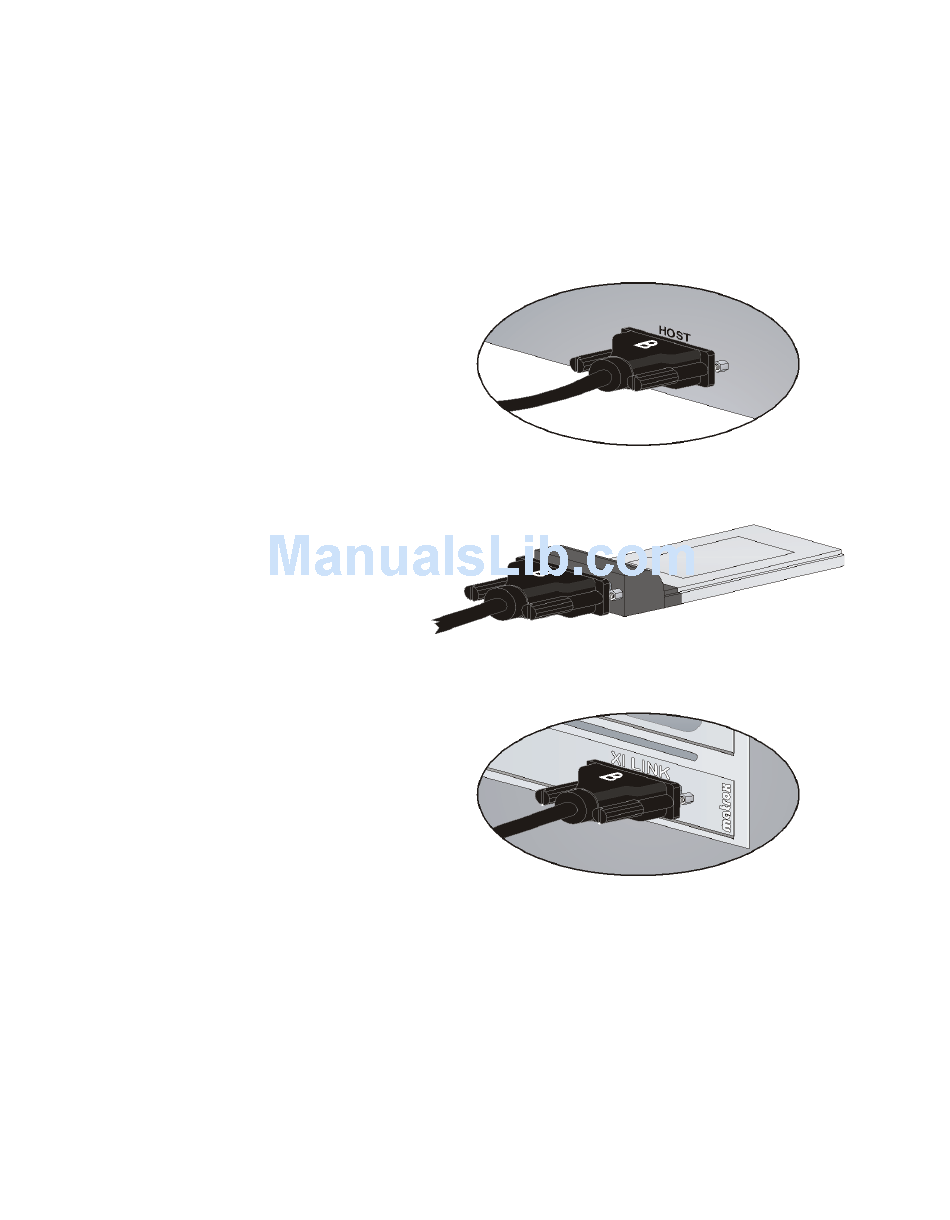

To ensure functionality and avoid damaging the PCIe cable or host connector
when connecting MXO2 to your computer, the PCIe cable must be connected to
your MXO2 and host connector as shown below:
To Matrox MXO2
"B" side of PCIe cable must face the side
labeled "HOST" on MXO2.
To Matrox PCIe ExpressCard/34 adapter
"B" side of PCIe cable must face the
top of the Matrox PCIe
ExpressCard/34 adapter.
To Matrox PCIe host adapter
"B" side of PCIe cable must face the side
labeled "XI LINK" on the Matrox PCIe
host adapter.
Chapter 3, Connecting External Devices to Matrox MXO2
