82

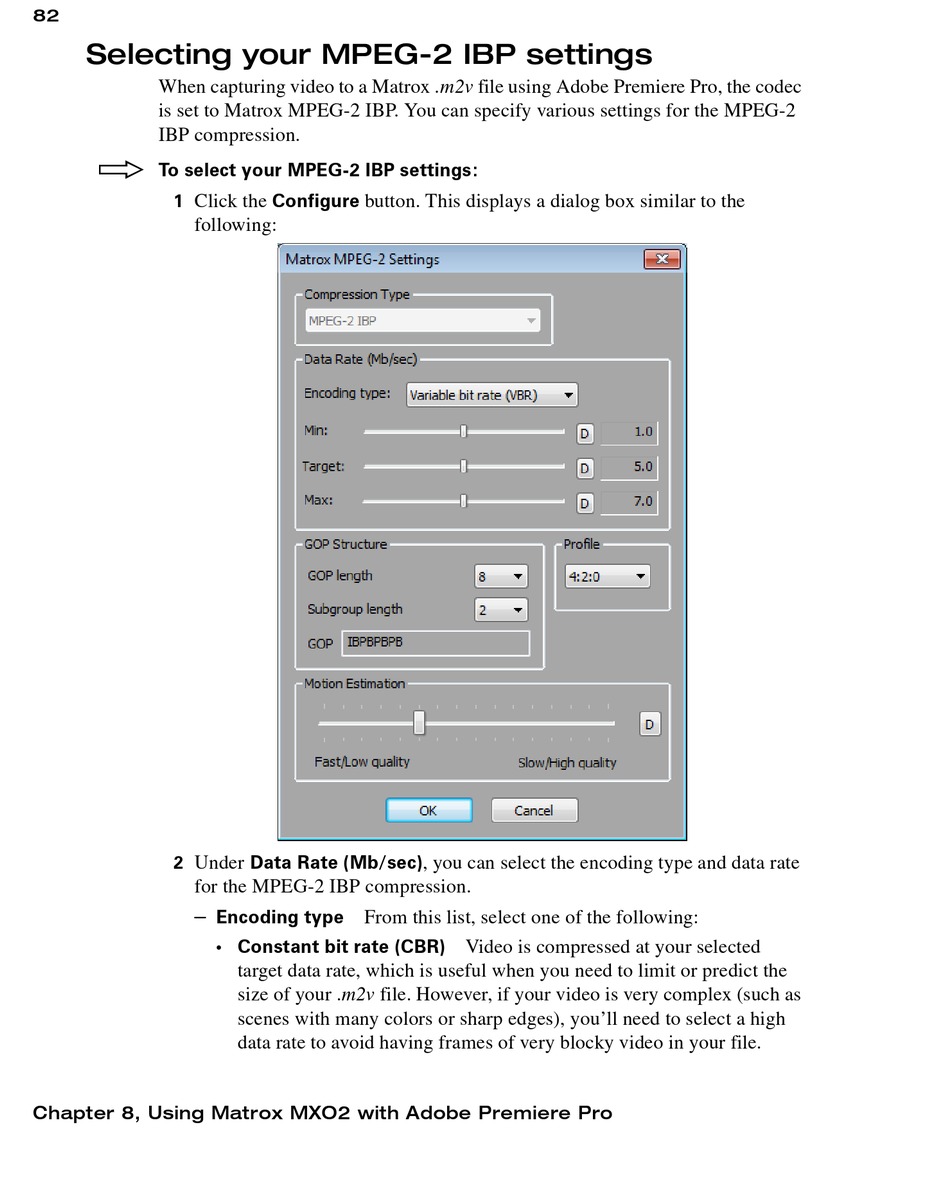

Selecting your MPEG-2 IBP settings

When capturing video to a Matrox .m2v file using Adobe Premiere Pro, the codec
is set to Matrox MPEG-2 IBP. You can specify various settings for the MPEG-2
IBP compression.
° To select your MPEG-2 IBP settings:
Click the Configure button. This displays a dialog box similar to the
1
following:
Under Data Rate (Mb/sec) , you can select the encoding type and data rate
2
for the MPEG-2 IBP compression.
$
Chapter 8, Using Matrox MXO2 with Adobe Premiere Pro
Encoding type From this list, select one of the following:
Constant bit rate (CBR)
•
target data rate, which is useful when you need to limit or predict the
size of your .m2v file. However, if your video is very complex (such as
scenes with many colors or sharp edges), you'll need to select a high
data rate to avoid having frames of very blocky video in your file.
Video is compressed at your selected
