Typical Matrox MXO2 LE connections

In the following typical connection examples, we've connected a monitor to view
the signal that will be recorded, and separate source and record decks. You may,
however, use the same deck as both your source and record device by making the
input and output connections to a single deck. For details on the Matrox
MXO2 LE connectors, see

Analog component video connections

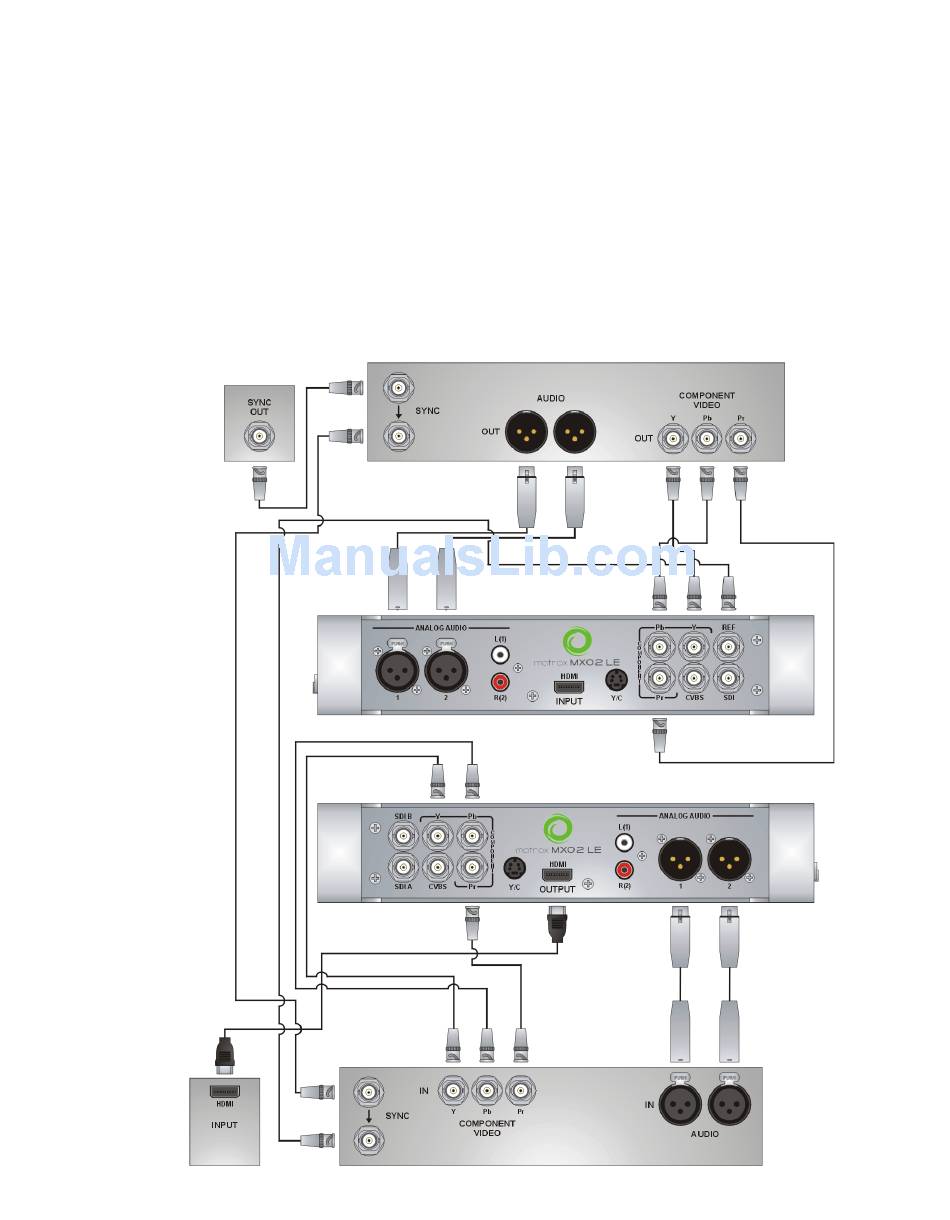

In this illustration, we're using analog component connectors for video, XLR
connectors for audio, and an HDMI connector for video monitoring. The video is
genlocked using a tri-level sync generator.
Tri-level
sync
generator
HDMI
monitor
Appendix B, "Matrox MXO2
MXO2 LE Inputs
MXO2 LE Outputs
Typical Matrox MXO2 LE connections
Connectors."
Source
(Deck 1)
Recorder
(Deck 2)
37
