MXO2 Rack can be recess mounted to allow extra space for connectors and
3
cables. Depending on your mounting needs, align the screw holes on each
rackmount bracket with the desired screw holes on either side of the MXO2
Rack.
Rackmount
bracket
²Caution For stability and safety, whichever mounting method you choose,
make sure to fasten each rackmount bracket to MXO2 Rack using all four
supplied screws.
Using a hand screwdriver only (no power screwdrivers), carefully tighten
4
each screw until snug. Do not overtighten!
Fasten your MXO2 Rack to the standard 19-inch rack as per your rack's
5
instructions.
MXO2 Rack

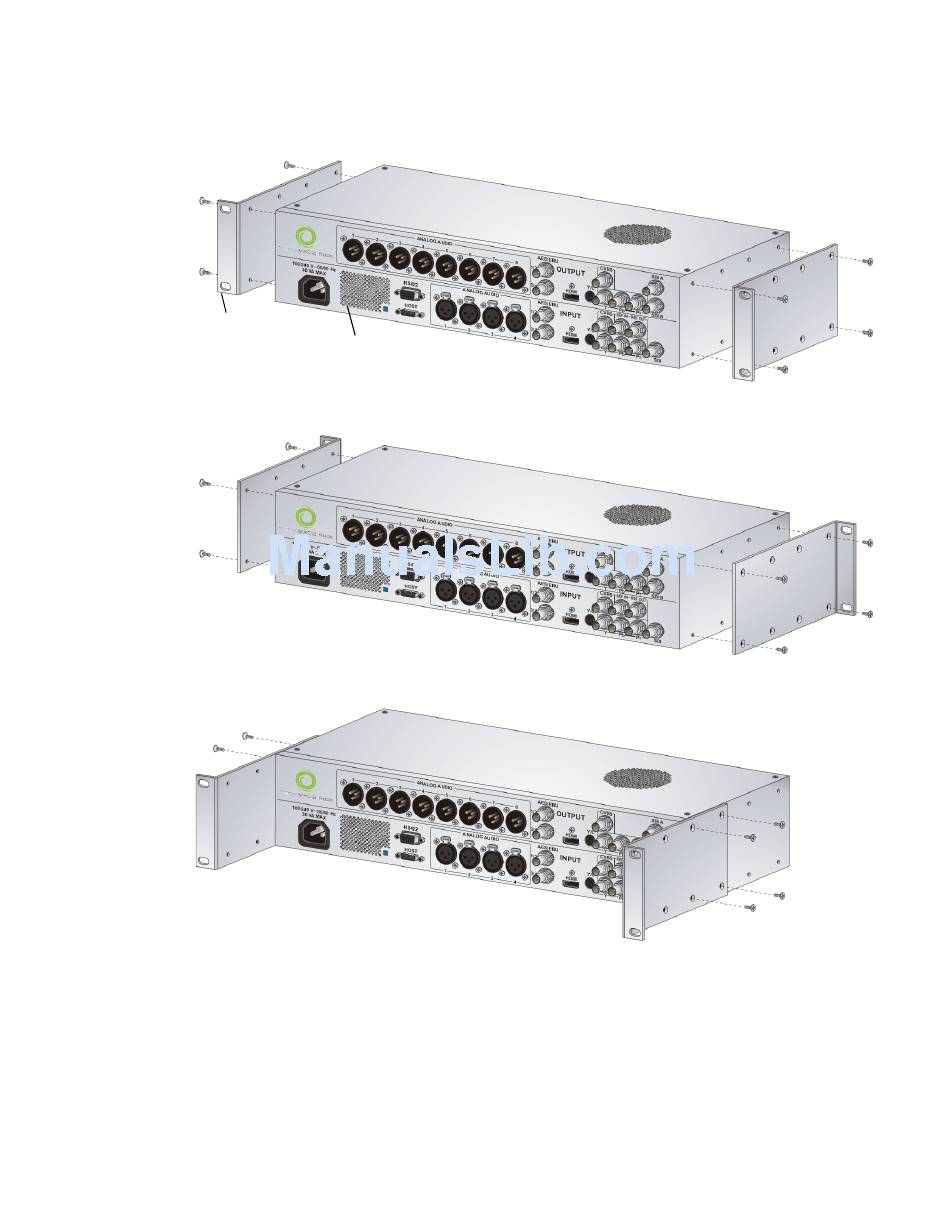

Front rackmounting
Rear rackmounting
Recessed rackmounting
Rack mounting your MXO2 Rack
