66
° To specify your audio output settings:

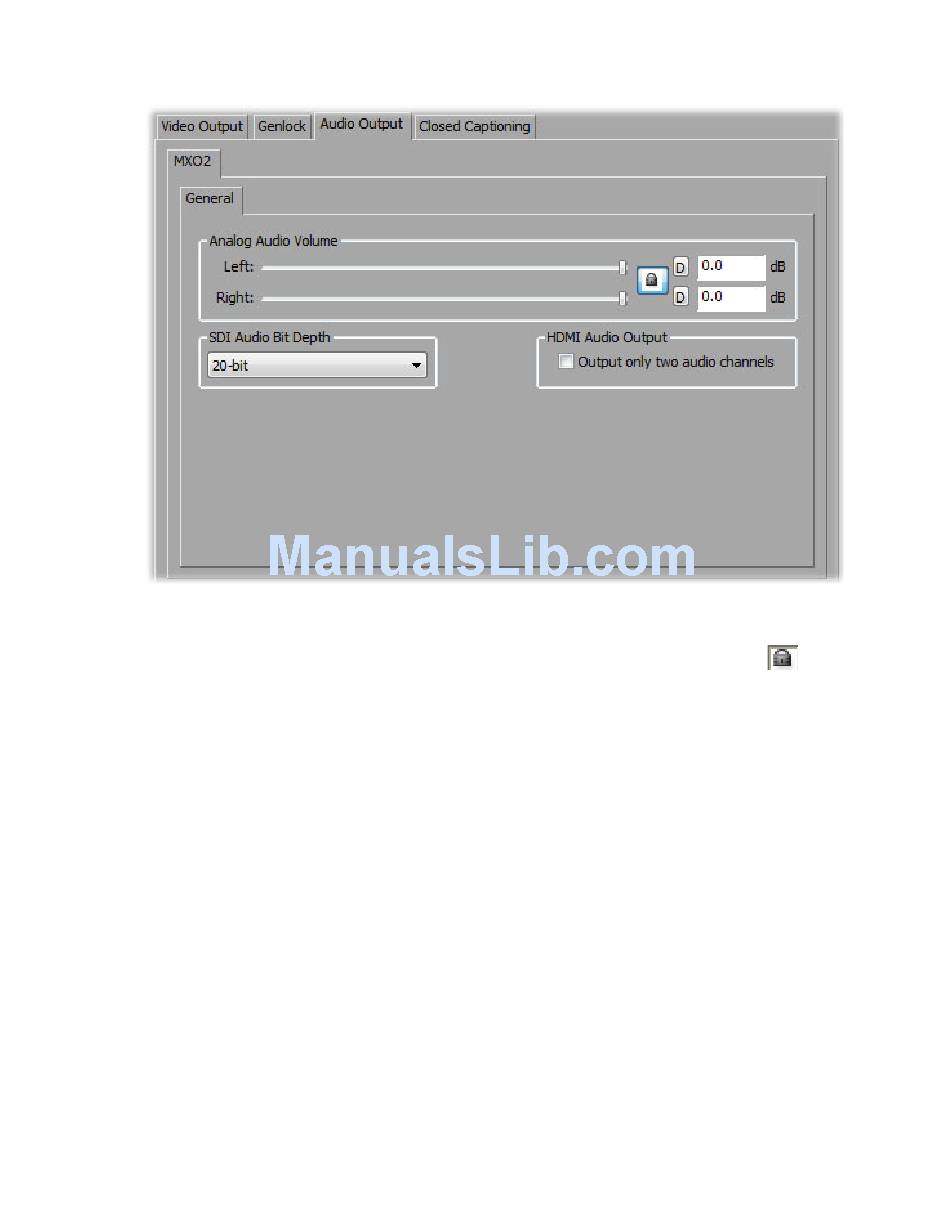

In the Matrox Playback Settings dialog box, click the Audio Output tab.
1
Under Analog Audio Volume , drag the sliders to adjust the volume of your
2
analog audio output. By default, the sliders are locked so that they move
together. To move each slider independently, click the lock button (
disable it.
Under SDI Audio Bit Depth , select the bit depth you want for your
3
embedded SDI audio output ( 20-bit or 24-bit ). This setting is not available
on MXO2 Mini.
4 Under HDMI Audio Output , select Output only two audio channels if
you want to output two audio channels from the MXO2 HDMI output,
instead of eight channels. This option is especially useful for HDMI
monitors that don't accept more than two audio channels.
Click OK to save your settings.
5
Chapter 8, Using Matrox MXO2 with Adobe Premiere Pro
) to
