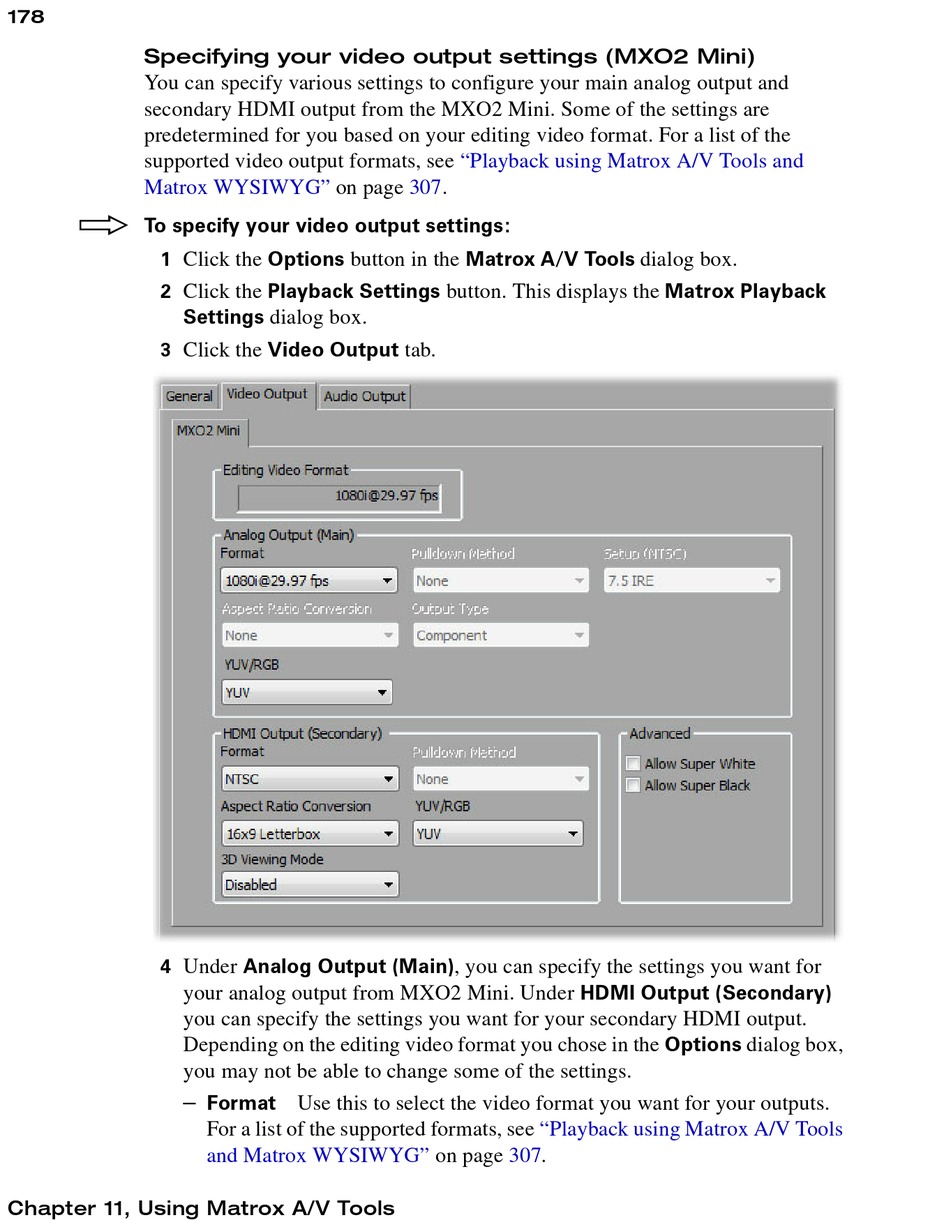

Matrox MXO2 Installation And User Manual page 198

178
Specifying your video output settings (MXO2 Mini)
You can specify various settings to configure your main analog output and
secondary HDMI output from the MXO2 Mini. Some of the settings are
predetermined for you based on your editing video format. For a list of the
supported video output formats, see
Matrox WYSIWYG"
° To specify your video output settings:
Click the Options button in the Matrox A/V Tools dialog box.
1
2 Click the Playback Settings button. This displays the Matrox Playback
Settings
Click the Video Output tab.
3
Under Analog Output (Main) , you can specify the settings you want for
4
your analog output from MXO2 Mini. Under HDMI Output (Secondary)
you can specify the settings you want for your secondary HDMI output.
Depending on the editing video format you chose in the Options dialog box,
you may not be able to change some of the settings.
$
Chapter 11, Using Matrox A/V Tools
on page 307.
dialog box.
Use this to select the video format you want for your outputs.
Format
For a list of the supported formats, see
and Matrox WYSIWYG"
"Playback using Matrox A/V Tools and
"Playback using Matrox A/V Tools
on page 307.
