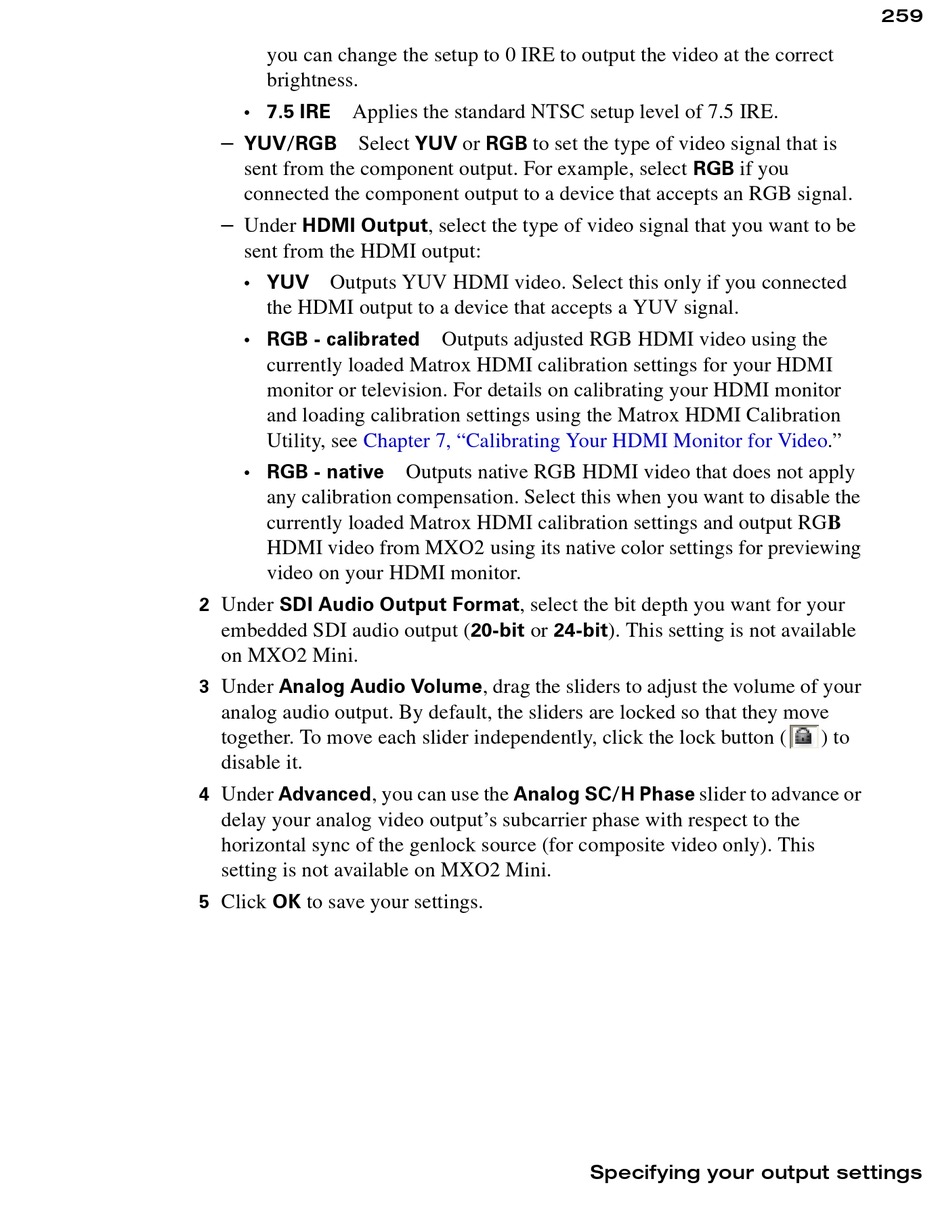

you can change the setup to 0 IRE to output the video at the correct
brightness.
7.5 IRE Applies the standard NTSC setup level of 7.5 IRE.
•
Select YUV or RGB to set the type of video signal that is
YUV/RGB
$
sent from the component output. For example, select RGB if you
connected the component output to a device that accepts an RGB signal.
Under HDMI Output , select the type of video signal that you want to be
$
sent from the HDMI output:
YUV Outputs YUV HDMI video. Select this only if you connected
•
the HDMI output to a device that accepts a YUV signal.
RGB - calibrated
•
currently loaded Matrox HDMI calibration settings for your HDMI
monitor or television. For details on calibrating your HDMI monitor
and loading calibration settings using the Matrox HDMI Calibration
Utility, see Chapter 7, "Calibrating Your HDMI Monitor for
RGB - native
•
any calibration compensation. Select this when you want to disable the
currently loaded Matrox HDMI calibration settings and output RGB
HDMI video from MXO2 using its native color settings for previewing
video on your HDMI monitor.
Under SDI Audio Output Format , select the bit depth you want for your
2
embedded SDI audio output ( 20-bit or 24-bit ). This setting is not available
on MXO2 Mini.
Under Analog Audio Volume , drag the sliders to adjust the volume of your
3
analog audio output. By default, the sliders are locked so that they move
together. To move each slider independently, click the lock button (
disable it.
Under Advanced , you can use the Analog SC/H Phase slider to advance or
4
delay your analog video output's subcarrier phase with respect to the
horizontal sync of the genlock source (for composite video only). This
setting is not available on MXO2 Mini.
Click OK to save your settings.
5
Outputs adjusted RGB HDMI video using the
Outputs native RGB HDMI video that does not apply
Specifying your output settings
