16x9 Letterbox
$
video by adding black bars at the top and bottom of the picture for display
on a standard 4:3 television screen.
4x3 Pillarbox
$
adding black bars at the left and right sides of the picture for display on a
widescreen 16:9 television screen.
Center Cut
$
the left and right sides of the picture for display on a standard 4:3
television screen.
Center Zoom
$
top and bottom edges of the picture for display on a widescreen 16:9
television screen.
¦ Note
When capturing to an SD 16:9 format, such as NTSC 16:9, the video
will be captured as horizontally compressed 4:3 (anamorphic) video. To
display the video with the correct proportions on an NTSC or PAL monitor,
select the 16:9 display setting on the monitor.
Click OK to save your settings.
14

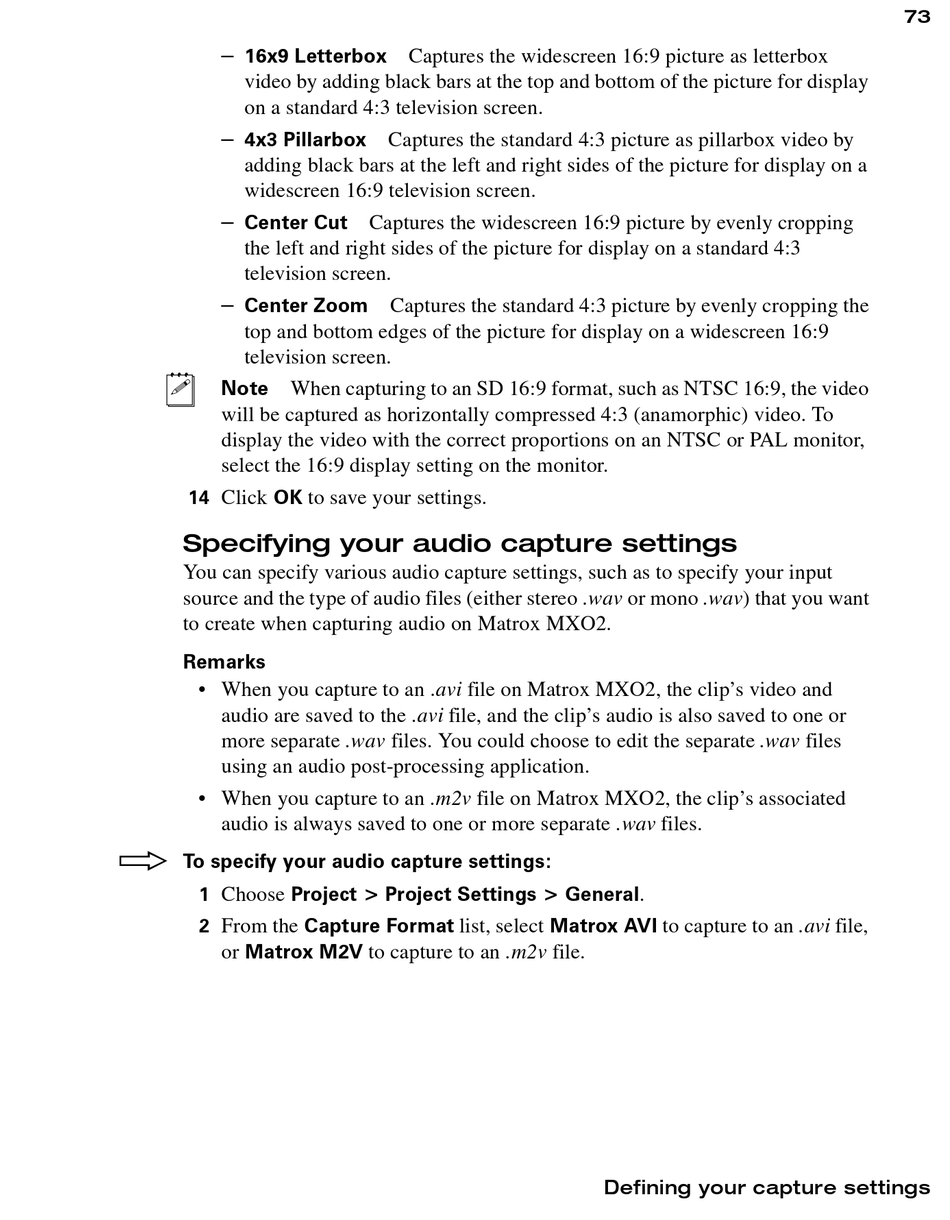

Specifying your audio capture settings

You can specify various audio capture settings, such as to specify your input
source and the type of audio files (either stereo .wav or mono .wav) that you want
to create when capturing audio on Matrox MXO2.
Remarks
• When you capture to an .avi file on Matrox MXO2, the clip's video and
audio are saved to the .avi file, and the clip's audio is also saved to one or
more separate .wav files. You could choose to edit the separate .wav files
using an audio post-processing application.
• When you capture to an .m2v file on Matrox MXO2, the clip's associated
audio is always saved to one or more separate .wav files.
° To specify your audio capture settings:
1 Choose Project > Project Settings > General .
From the Capture Format list, select Matrox AVI to capture to an .avi file,
2
or Matrox M2V to capture to an .m2v file.
Captures the widescreen 16:9 picture as letterbox
Captures the standard 4:3 picture as pillarbox video by
Captures the widescreen 16:9 picture by evenly cropping
Captures the standard 4:3 picture by evenly cropping the
