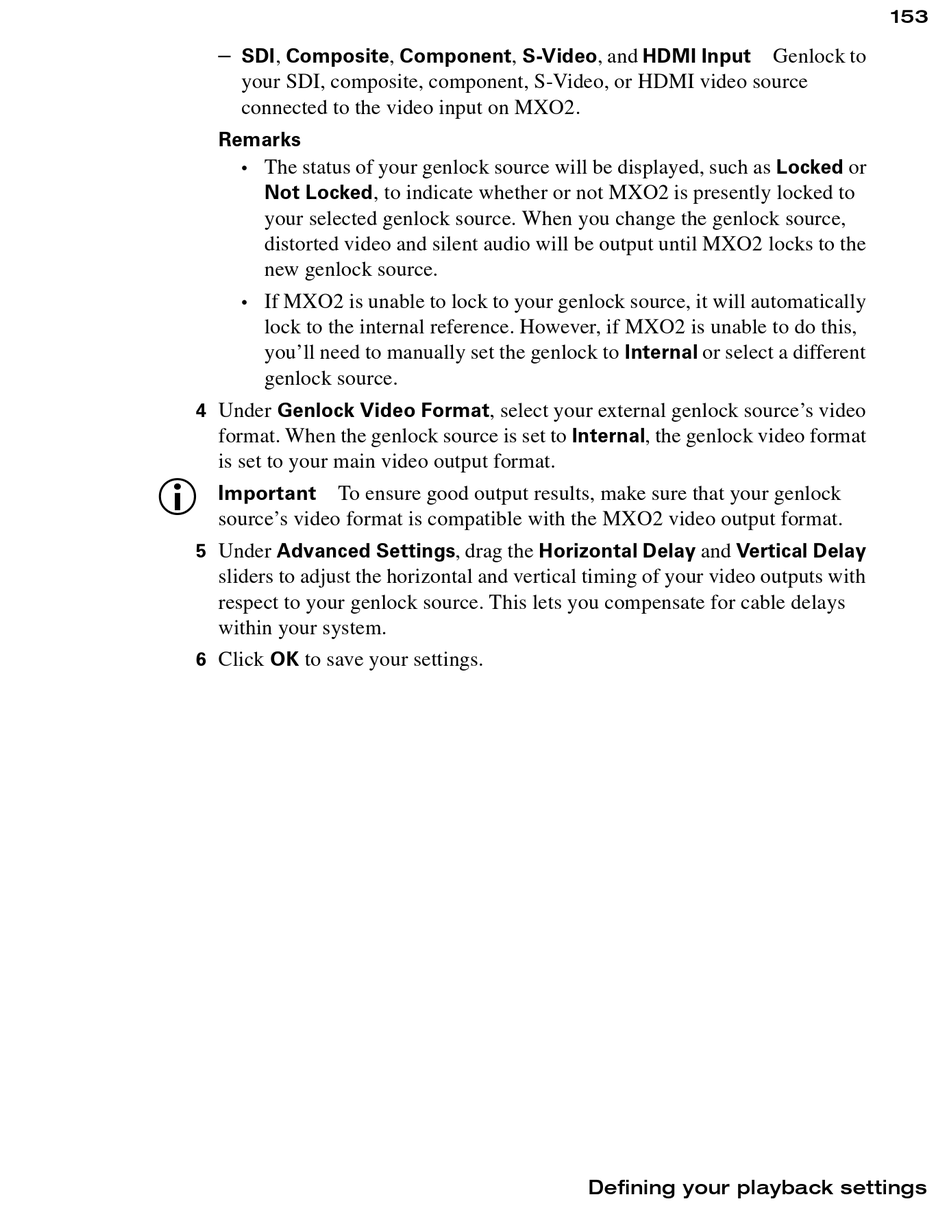

Matrox MXO2 Installation And User Manual page 173

, Composite , Component , S-Video , and HDMI Input Genlock to
SDI
$
your SDI, composite, component, S-Video, or HDMI video source
connected to the video input on MXO2.
Remarks
The status of your genlock source will be displayed, such as Locked or
•
Not Locked
your selected genlock source. When you change the genlock source,
distorted video and silent audio will be output until MXO2 locks to the
new genlock source.
If MXO2 is unable to lock to your genlock source, it will automatically
•
lock to the internal reference. However, if MXO2 is unable to do this,
you'll need to manually set the genlock to Internal or select a different
genlock source.
Under Genlock Video Format , select your external genlock source's video
4
format. When the genlock source is set to Internal , the genlock video format
is set to your main video output format.
¡ Important To ensure good output results, make sure that your genlock
source's video format is compatible with the MXO2 video output format.
Under Advanced Settings , drag the Horizontal Delay and Vertical Delay
5
sliders to adjust the horizontal and vertical timing of your video outputs with
respect to your genlock source. This lets you compensate for cable delays
within your system.
Click OK to save your settings.
6
, to indicate whether or not MXO2 is presently locked to
Defining your playback settings
153
