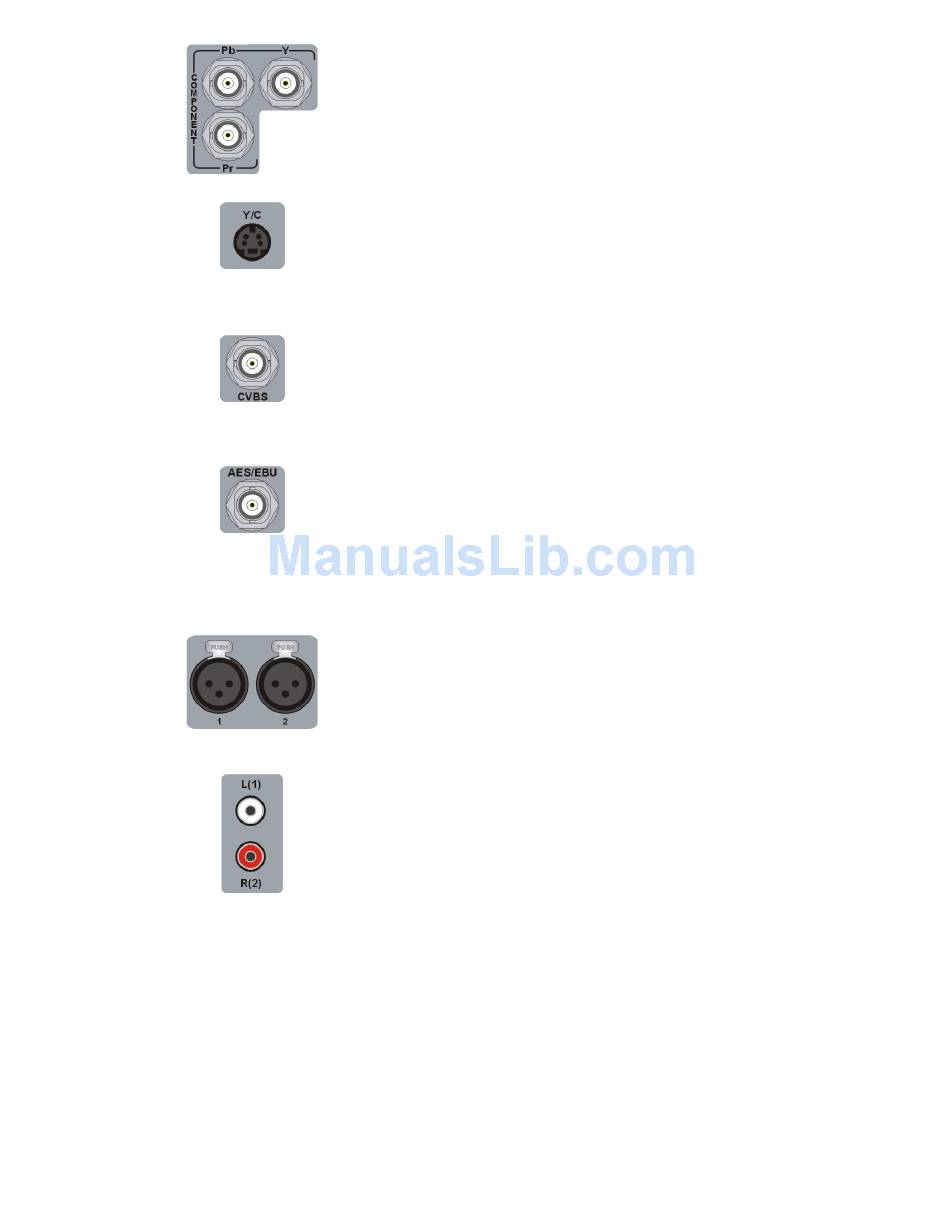

Component video (Y, Pb, Pr) Provide inputs for use with an
analog component device, and support HD and SD video.
Connect component Y, Pb, Pr video cables from a camera,
VTR, or other video input source.
Y/C (S-Video) Provides an input for use with an analog
S-Video device (SD only). Connect an S-Video cable from a
camera, VTR, or other video input source.
Composite video (CVBS) Allows you to input SD video
from an analog NTSC or PAL device. Connect a composite
video cable from a camera, VTR, or other video input source.
AES/EBU digital audio Allows you to input stereo digital
audio. Connect a coaxial BNC audio cable from a camera,
VTR, audio mixer, or other audio input source.
¦ Note Not available on MXO2 LE.
Analog audio (balanced) Allows you to input balanced
stereo analog audio. Connect XLR cables from a camera, VTR,
audio mixer, or other audio input source.
Analog audio (unbalanced) Allows you to input unbalanced
stereo analog audio. Connect RCA cables from a camera, VTR,
audio mixer, or other audio input source.
