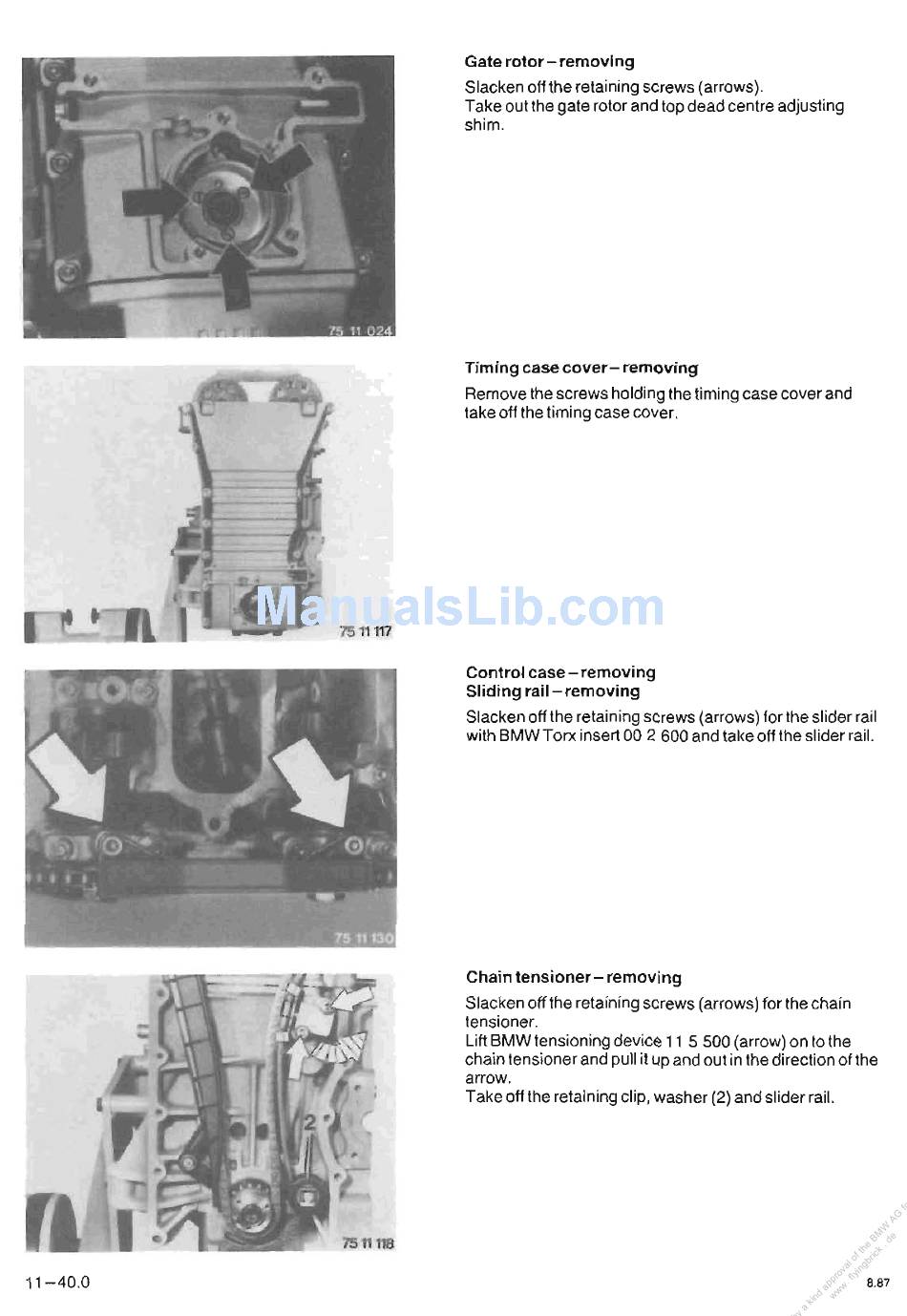

Gate rotor - removing
Slacken off the retaining screws (arrows).
Take outthe gate rotor and top dead centre adjusting
shim .
Timing case cover- removing
Remove the screws holding the timing case cover and
take off the timing case cover.
Control case - removing
Sliding rail- removing
Slacken offthe retaining screws (arrows) lorthe slider rail
with BMWTorx insert 00 2 600 and take offthe slider rail.
Chain tensioner - removing
Slacken off the retaining screws (arrows) lorthe chain
tensioner.
Lift BMW tensioning device 11 5 500 (arrow) on to the
chain tensioner and pull it up and out in the direction
01
the
arrow.
Take off the retaining clip, washer (2) and slider rail.
