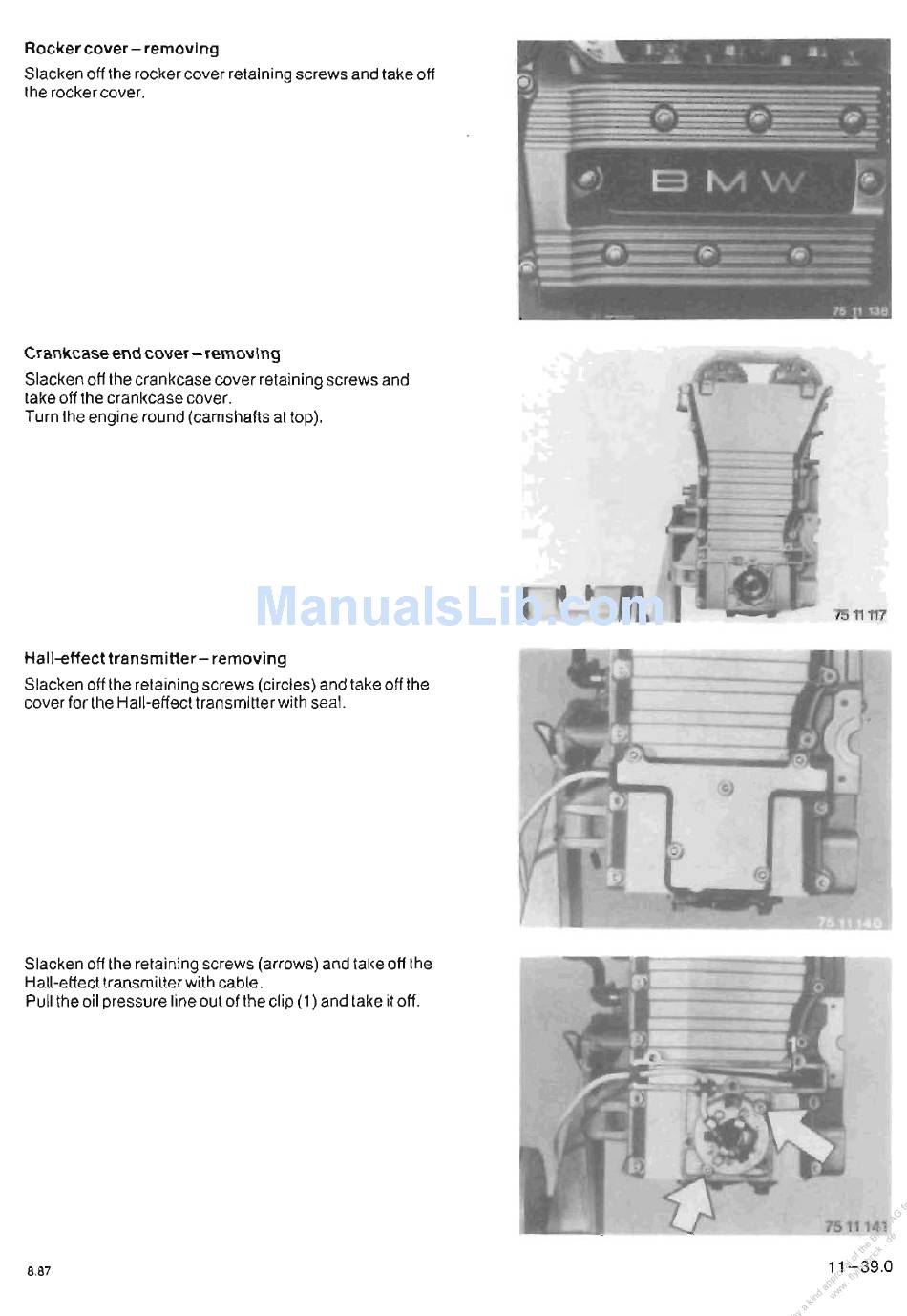

Rocker cover - removing
Slacken offthe rocker cover retaining screws and take off
the rocker cover.
Crankcase end cover - removing
Slacken offthe crankcase cover retaining screws and
take offthe crankcase cover.
Turn the engine round (camshafts attop).
Hall-effect transmitter - removing
Slacken offthe retaining screws (circles) and take offthe
cover for the Hall-effect transmitter with seal.
Slacken off the retaining screws (arrows) and take off the
Hall-effect transmitter with cable.
Pull the oil pressure li ne out ofthe clip (1) and take it off.
8.87
7511117
1511
141
11-39.0
