11 5 640

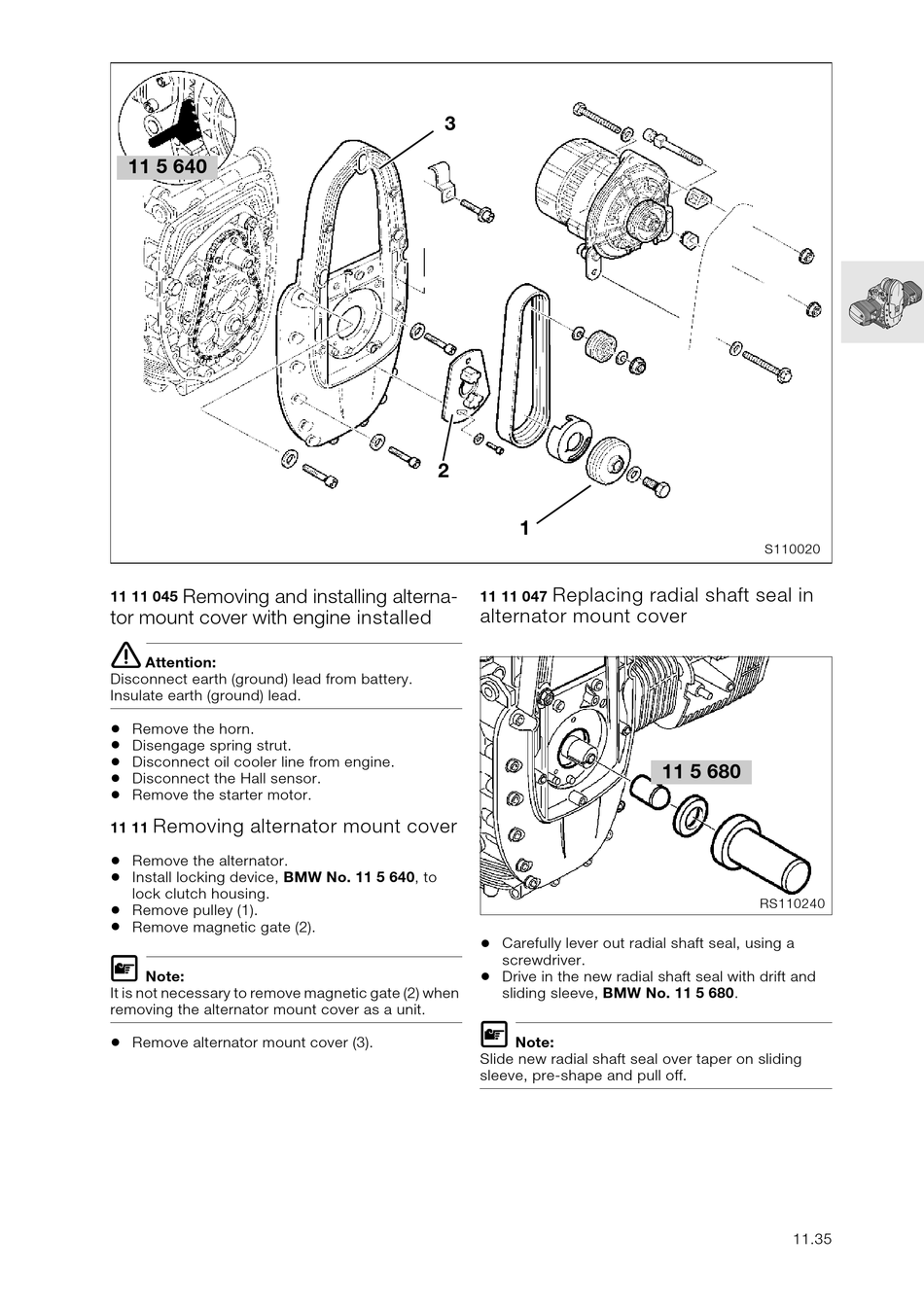

Removing and installing alterna-
11 11 045
tor mount cover with engine installed
e
Attention:
Disconnect earth (ground) lead from battery.
Insulate earth (ground) lead.
•
Remove the horn.
•
Disengage spring strut.
•
Disconnect oil cooler line from engine.
•
Disconnect the Hall sensor.
•
Remove the starter motor.

Removing alternator mount cover

11 11
•
Remove the alternator.
•
Install locking device, BMW No. 11 5 640, to
lock clutch housing.
•
Remove pulley (1).
•
Remove magnetic gate (2).
L
Note:
It is not necessary to remove magnetic gate (2) when
removing the alternator mount cover as a unit.
•
Remove alternator mount cover (3).
3
2
1
Replacing radial shaft seal in
11 11 047
alternator mount cover
•
Carefully lever out radial shaft seal, using a
screwdriver.
•
Drive in the new radial shaft seal with drift and
sliding sleeve, BMW No. 11 5 680.
L
Note:
Slide new radial shaft seal over taper on sliding
sleeve, pre-shape and pull off.
S110020
11 5 680
RS110240
11.35
