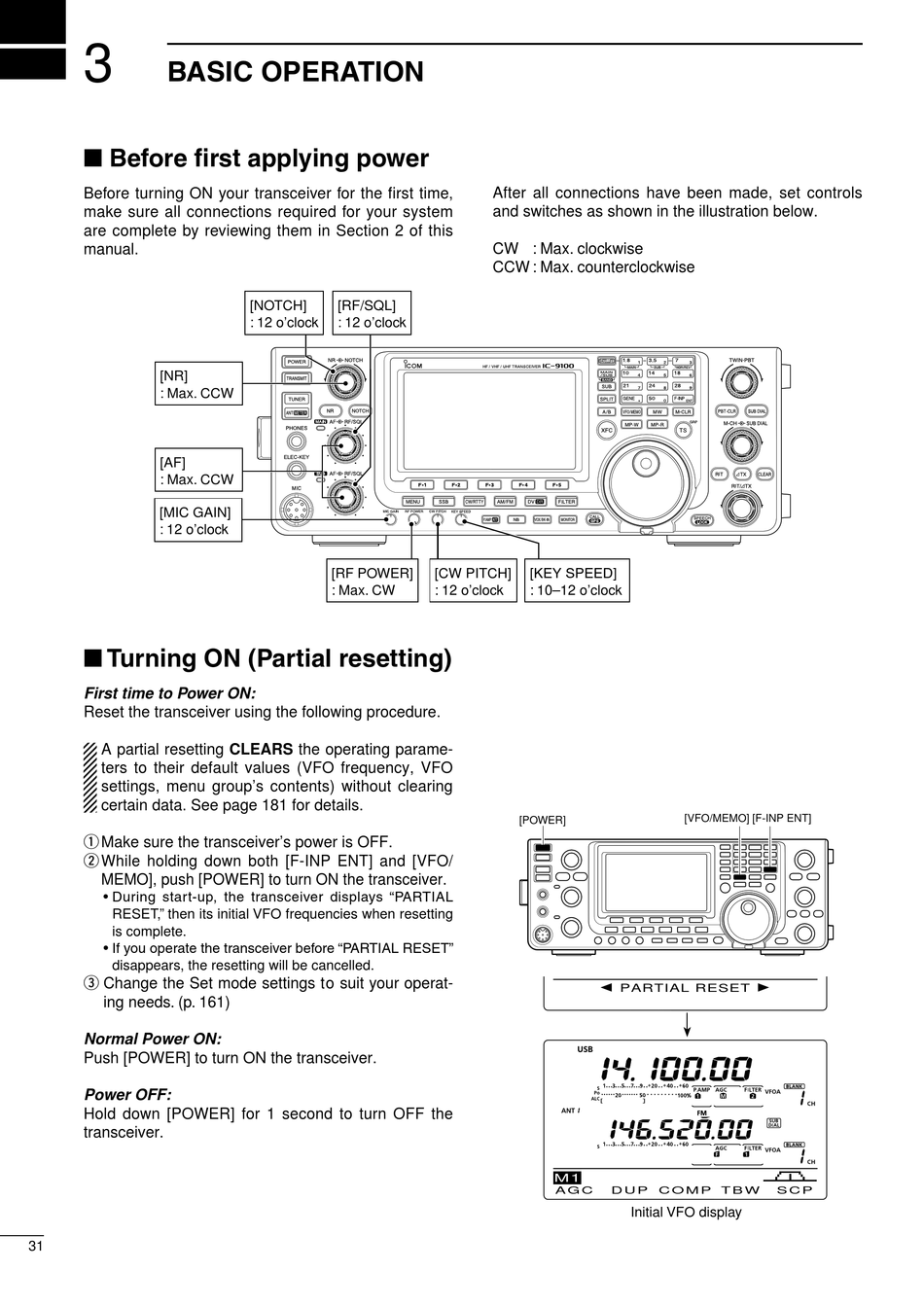

BASIC OPERATION

■ Before first applying power

Before turning ON your transceiver for the first time,
make sure all connections required for your system
are complete by reviewing them in Section 2 of this
manual.
[NR]
: Max. CCW
[AF]
: Max. CCW
[MIC GAIN]
: 12 o'clock

■ Turning ON (Partial resetting)

First time to Power ON:
Reset the transceiver using the following procedure.
A partial resetting CLEARS the operating parame-
ters to their default values (VFO frequency, VFO
settings, menu group's contents) without clearing
certain data. See page 181 for details.
q Make sure the transceiver's power is OFF.
w While holding down both [F-INP ENT] and [VFO/
MEMO], push [POWER] to turn ON the transceiver.
• During start-up, the transceiver displays "PARTIAL
RESET," then its initial VFO frequencies when resetting
is complete.
• If you operate the transceiver before "PARTIAL RESET"
disappears, the resetting will be cancelled.
e Change the Set mode settings to suit your operat-
ing needs. (p. 161)
Normal Power ON:
Push [POWER] to turn ON the transceiver.
Power OFF:
Hold down [POWER] for 1 second to turn OFF the
transceiver.
31
[NOTCH] [RF/SQL]
: 12 o'clock : 12 o'clock
[RF POWER]
: Max. CW
After all connections have been made, set controls
and switches as shown in the illustration below.
CW : Max. clockwise
CCW : Max. counterclockwise
[KEY SPEED]
[CW PITCH]
: 12 o'clock : 10–12 o'clock
[POWER]
Ω PARTIAL RESET ≈
M1
A G C
[VFO/MEMO] [F-INP ENT]
D U P C O M P T B W S C P
Initial VFO display
