Operation; W Initial Settings; W Basic Operation - Icom IC-707 Instruction Manual

13
[POWER] switch: =
OFF g
mm)
3

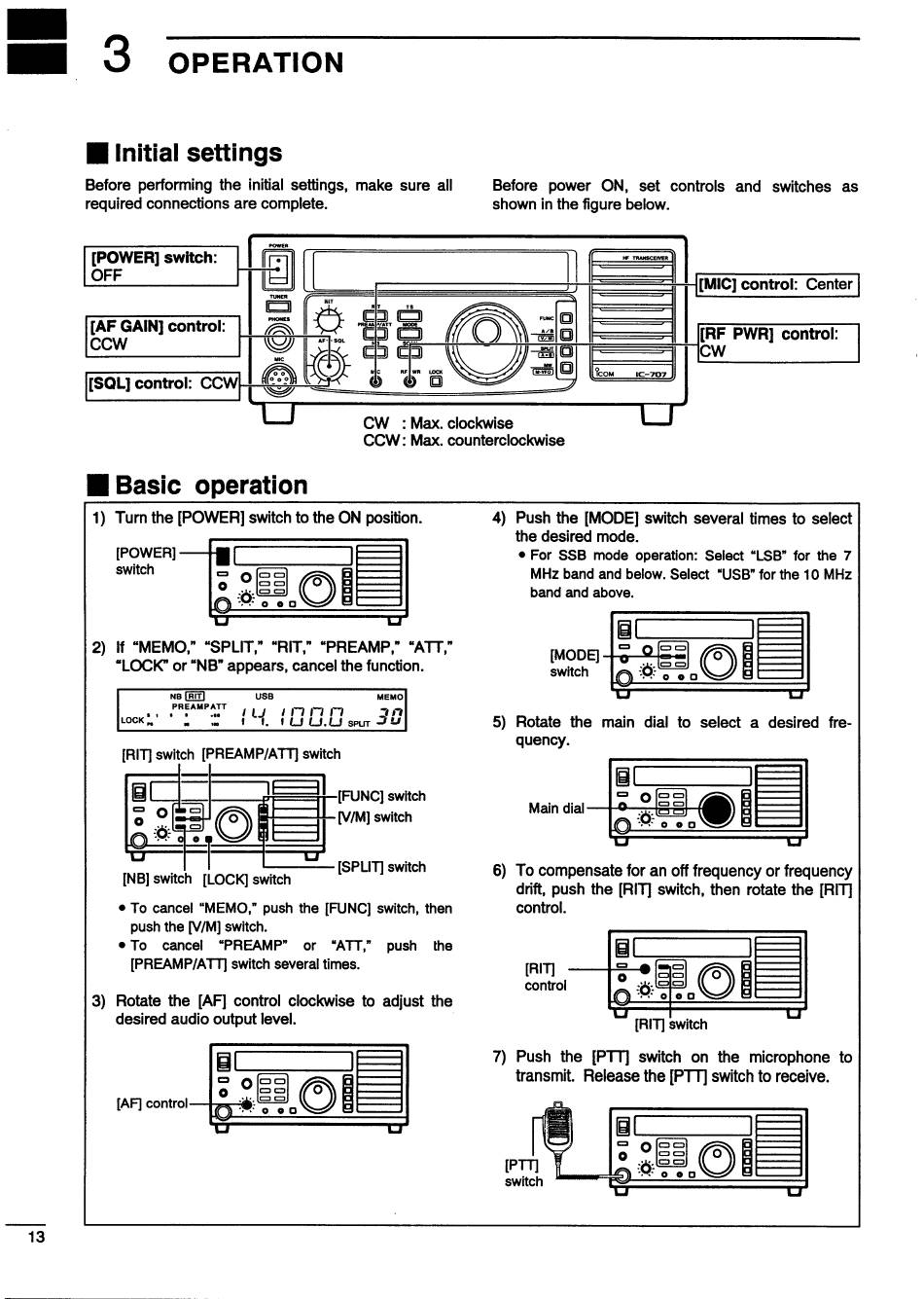

OPERATION
W Initial settings
Before performing the initial settings, make sure all
required connections are complete.
RIT
CW
: Max. clockwise
Before power ON, set controls and switches as
shown in the figure below.
[MIC] control: Center
[RF PWR] control:
CW
_
CCW: Max. counterclockwise
Mi Basic operation
1) Turn the [POWER] switch to the ON position.
[POWER]
switch
2) If "MEMO," "SPLIT," "RIT," "PREAMP," "ATT,"
"LOCK" or "NB" appears, cancel the function.
JIN = | [FUNC] switch
= [V/M] switch —
ji [SPLIT] switch
[NB] switch [LOCK] switch
e To cancel "MEMO," push the [FUNC] switch, then
push the [V/M] switch.
ə To cancel "PREAMP" or "ATT,"
[PREAMP/ATT] switch several times.
push the
Rotate the [AF] control clockwise to adjust the
desired audio output level.
4) Push the [MODE] switch several times to select
the desired mode.
e For SSB mode operation: Select "LSB" for the 7
MHz band and below. Select "USB" for the 10 MHz
band and above.
[MODE]
switch
5) Rotate the main dial to select a desired fre-
quency.
6) To compensate for an off frequency or frequency
drift, push the [RIT] switch, then rotate the [RIT]
control.
[RIT]
control
[RIT] switch
7) Push the [PTT] switch on the microphone to
transmit. Release the [PTT] switch to receive.
switch
