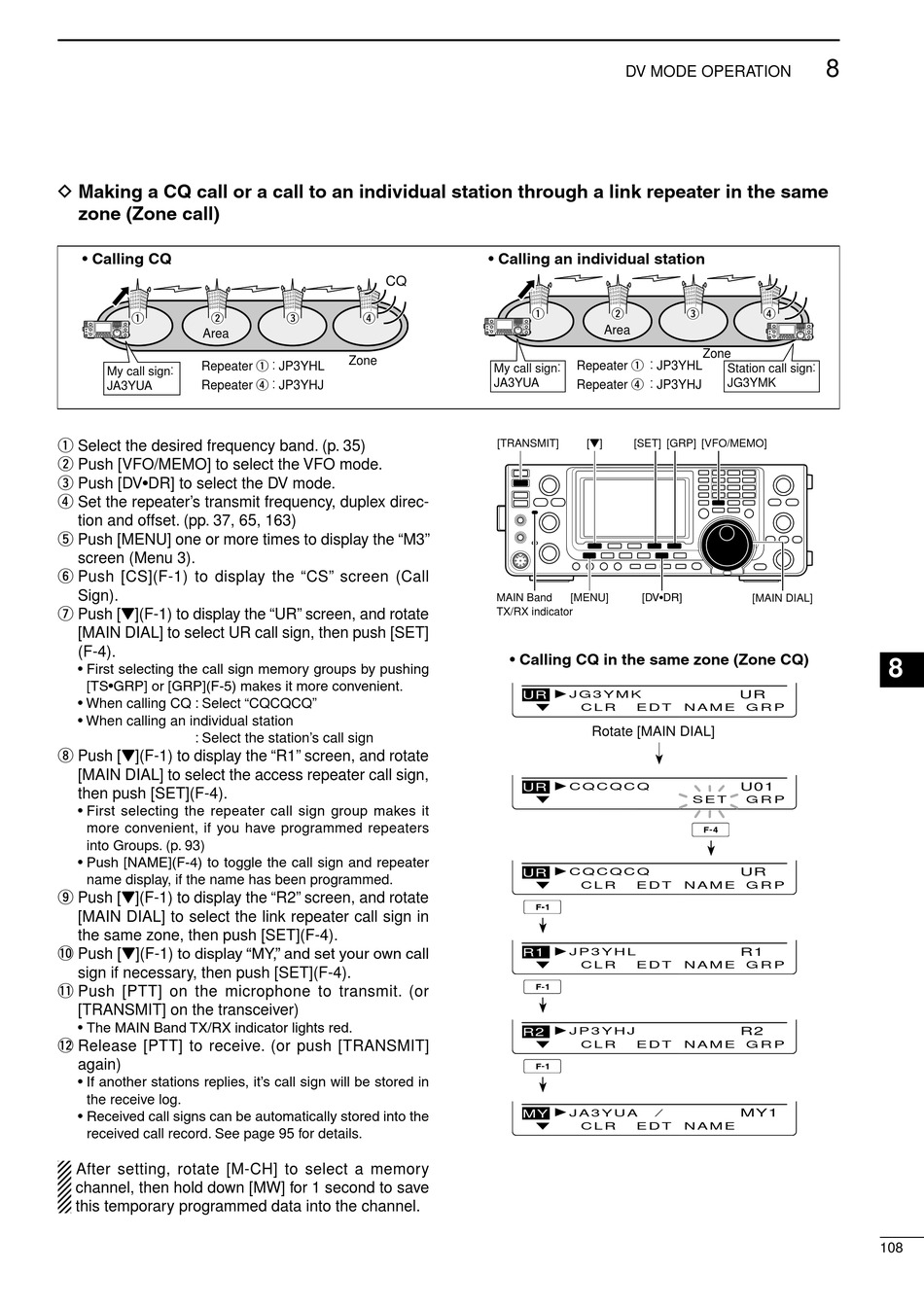

D Making a CQ call or a call to an individual station through a link repeater in the same
zone (Zone call)
• Calling CQ
q w
Area
Repeater q JP3YHL
My call sign
JA3YUA Repeater r JP3YHJ
q Select the desired frequency band. (p. 35)
w Push [VFO/MEMO] to select the VFO mode.
e Push [DV•DR] to select the DV mode.
r Set the repeater's transmit frequency, duplex direc-
tion and offset. (pp. 37, 65, 163)
t Push [MENU] one or more times to display the "M3"
screen (Menu 3).
y Push [CS](F-1) to display the "CS" screen (Call
Sign).
u Push [Z](F-1) to display the "UR" screen, and rotate
[MAIN DIAL] to select UR call sign, then push [SET]
(F-4).
• First selecting the call sign memory groups by pushing
[TS•GRP] or [GRP](F-5) makes it more convenient.
• When calling CQ : Select "CQCQCQ"
• When calling an individual station
: Select the station's call sign
i Push [Z](F-1) to display the "R1" screen, and rotate
[MAIN DIAL] to select the access repeater call sign,
then push [SET](F-4).
• First selecting the repeater call sign group makes it
more convenient, if you have programmed repeaters
into Groups. (p. 93)
• Push [NAME](F-4) to toggle the call sign and repeater
name display, if the name has been programmed.
o Push [Z](F-1) to display the "R2" screen, and rotate
[MAIN DIAL] to select the link repeater call sign in
the same zone, then push [SET](F-4).
!0 Push [Z](F-1) to display "MY," and set your own call
sign if necessary, then push [SET](F-4).
!1 Push [PTT] on the microphone to transmit. (or
[TRANSMIT] on the transceiver)
• The MAIN Band TX/RX indicator lights red.
!2 Release [PTT] to receive. (or push [TRANSMIT]
again)
• If another stations replies, it's call sign will be stored in
the receive log.
• Received call signs can be automatically stored into the
received call record. See page 95 for details.
After setting, rotate [M-CH] to select a memory
channel, then hold down [MW] for 1 second to save
this temporary programmed data into the channel.
CQ
e r
Zone
DV MODE OPERATION
• Calling an individual station
q w
Area
Repeater q JP3YHL
My call sign
JA3YUA
Repeater r JP3YHJ
[TRANSMIT] [Z] [SET]
MAIN Band [MENU] [DV•DR]
TX/RX indicator
• Calling CQ in the same zone (Zone CQ)
≈
UR J G 3 Y M K
Ú
C L R E D T
Rotate [MAIN DIAL]
UR ≈ C Q C Q C Q
Ú
≈
UR C Q C Q C Q
Ú
C L R E D T
≈
R1 J P 3 Y H L
Ú
C L R E D T
≈
R2 J P 3 Y H J
Ú
C L R E D T
≈
MY J A 3 Y U A ⁄
Ú
C L R E D T
8
e r
Zone
Station call sign
JG3YMK
[GRP] [VFO/MEMO]
[MAIN DIAL]
UR
N A M E G R P
U01
S E T G R P
UR
N A M E G R P
R1
N A M E G R P
R2
N A M E G R P
MY1
N A M E
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
108
