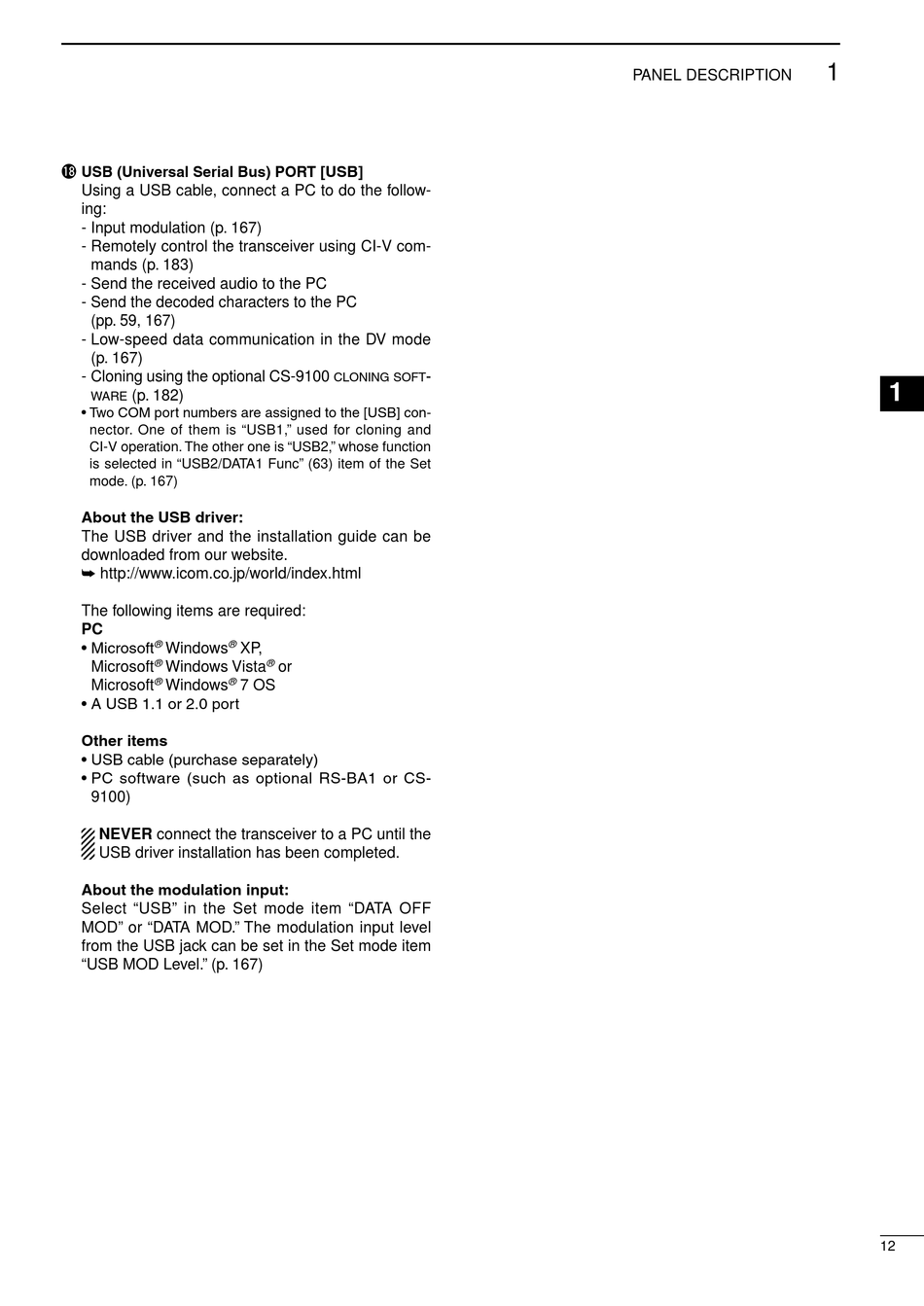

!8 USB (Universal Serial Bus) PORT [USB]
Using a USB cable, connect a PC to do the follow-
ing:
- Input modulation (p. 167)
- Remotely control the transceiver using CI-V com-
mands (p. 183)
- Send the received audio to the PC
- Send the decoded characters to the PC
(pp. 59, 167)
- Low-speed data communication in the DV mode
(p. 167)
- Cloning using the optional CS-9100
ware (p. 182)
• Two COM port numbers are assigned to the [USB] con-
nector. One of them is "USB1," used for cloning and
CI-V operation. The other one is "USB2," whose function
is selected in "USB2/DATA1 Func" (63) item of the Set
mode. (p. 167)
About the USB driver:
The USB driver and the installation guide can be
downloaded from our website.
➥ http://www.icom.co.jp/world/index.html
The following items are required:
PC
• Microsoft
® ®
Windows
®
Microsoft Windows Vista
® ®
Microsoft Windows
• A USB 1.1 or 2.0 port
Other items
• USB cable (purchase separately)
• PC software (such as optional RS-BA1 or CS-
9100)
NEVER connect the transceiver to a PC until the
USB driver installation has been completed.
About the modulation input:
Select "USB" in the Set mode item "DATA OFF
MOD" or "DATA MOD." The modulation input level
from the USB jack can be set in the Set mode item
"USB MOD Level." (p. 167)
cloning soft
XP,
®
or
7 OS
-
