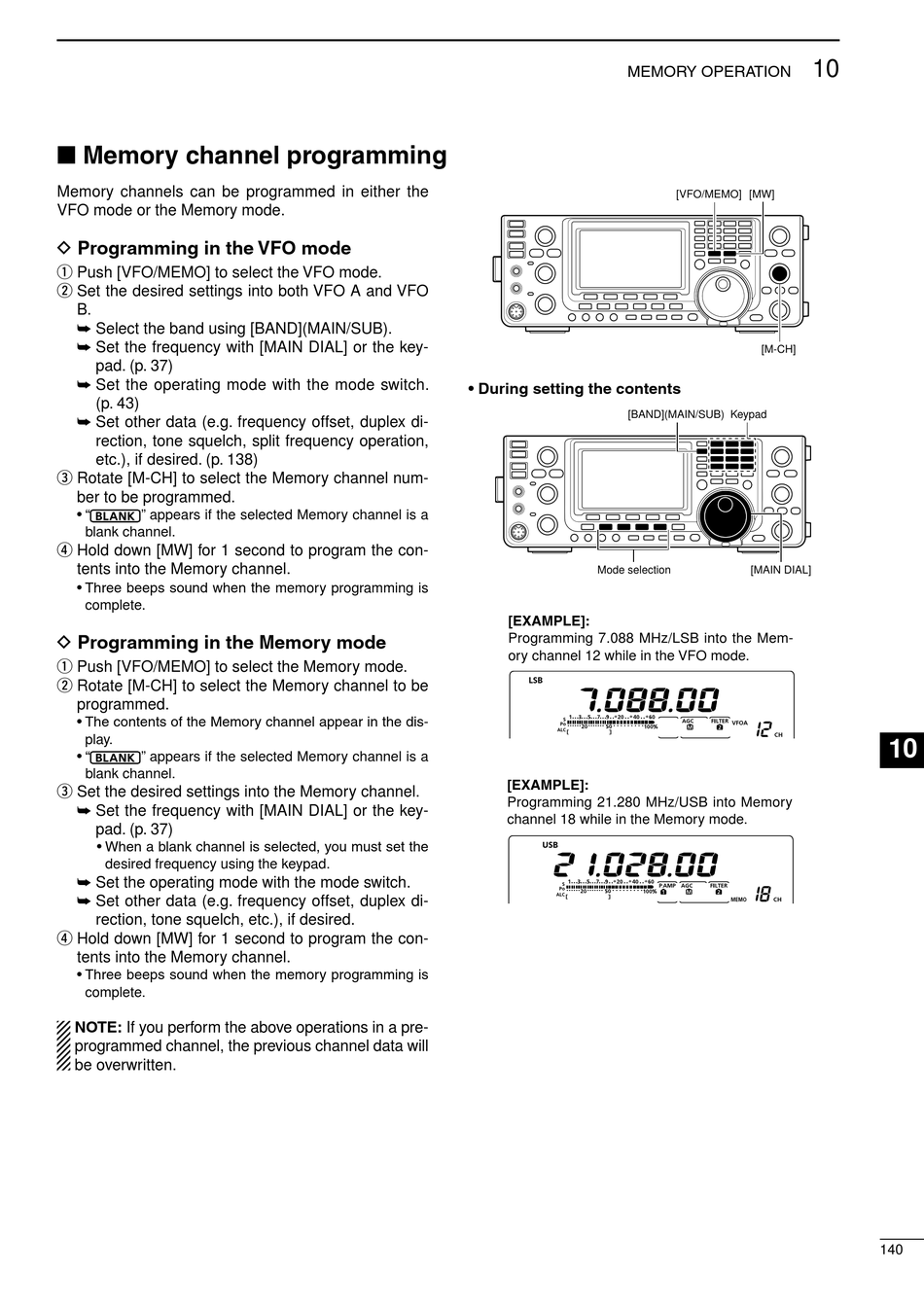

■ Memory channel programming

Memory channels can be programmed in either the
VFO mode or the Memory mode.

D Programming in the VFO mode

q Push [VFO/MEMO] to select the VFO mode.
w Set the desired settings into both VFO A and VFO
B.
➥ Select the band using [BAND](MAIN/SUB).
➥ Set the frequency with [MAIN DIAL] or the key-
pad. (p. 37)
➥ Set the operating mode with the mode switch.
(p. 43)
➥ Set other data (e.g. frequency offset, duplex di-
rection, tone squelch, split frequency operation,
etc.), if desired. (p. 138)
e Rotate [M-CH] to select the Memory channel num-
ber to be programmed.
• "
" appears if the selected Memory channel is a
blank channel.
r Hold down [MW] for 1 second to program the con-
tents into the Memory channel.
• Three beeps sound when the memory programming is
complete.

D Programming in the Memory mode

q Push [VFO/MEMO] to select the Memory mode.
w Rotate [M-CH] to select the Memory channel to be
programmed.
• The contents of the Memory channel appear in the dis-
play.
• "
" appears if the selected Memory channel is a
blank channel.
e Set the desired settings into the Memory channel.
➥ Set the frequency with [MAIN DIAL] or the key-
pad. (p. 37)
• When a blank channel is selected, you must set the
desired frequency using the keypad.
➥ Set the operating mode with the mode switch.
➥ Set other data (e.g. frequency offset, duplex di-
rection, tone squelch, etc.), if desired.
r Hold down [MW] for 1 second to program the con-
tents into the Memory channel.
• Three beeps sound when the memory programming is
complete.
NOTE: If you perform the above operations in a pre-
programmed channel, the previous channel data will
be overwritten.
MEMORY OPERATION
• During setting the contents
[BAND](MAIN/SUB)
Mode selection
[EXAMPLE]:
Programming 7.088 MHz/LSB into the Mem-
ory channel 12 while in the VFO mode.
[EXAMPLE]:
Programming 21.280 MHz/USB into Memory
M1
channel 18 while in the Memory mode.
A G C D U P C O M P T B W
M1
A G C D U P C O M P T B W
10
[VFO/MEMO] [MW]
[M-CH]
Keypad
[MAIN DIAL]
