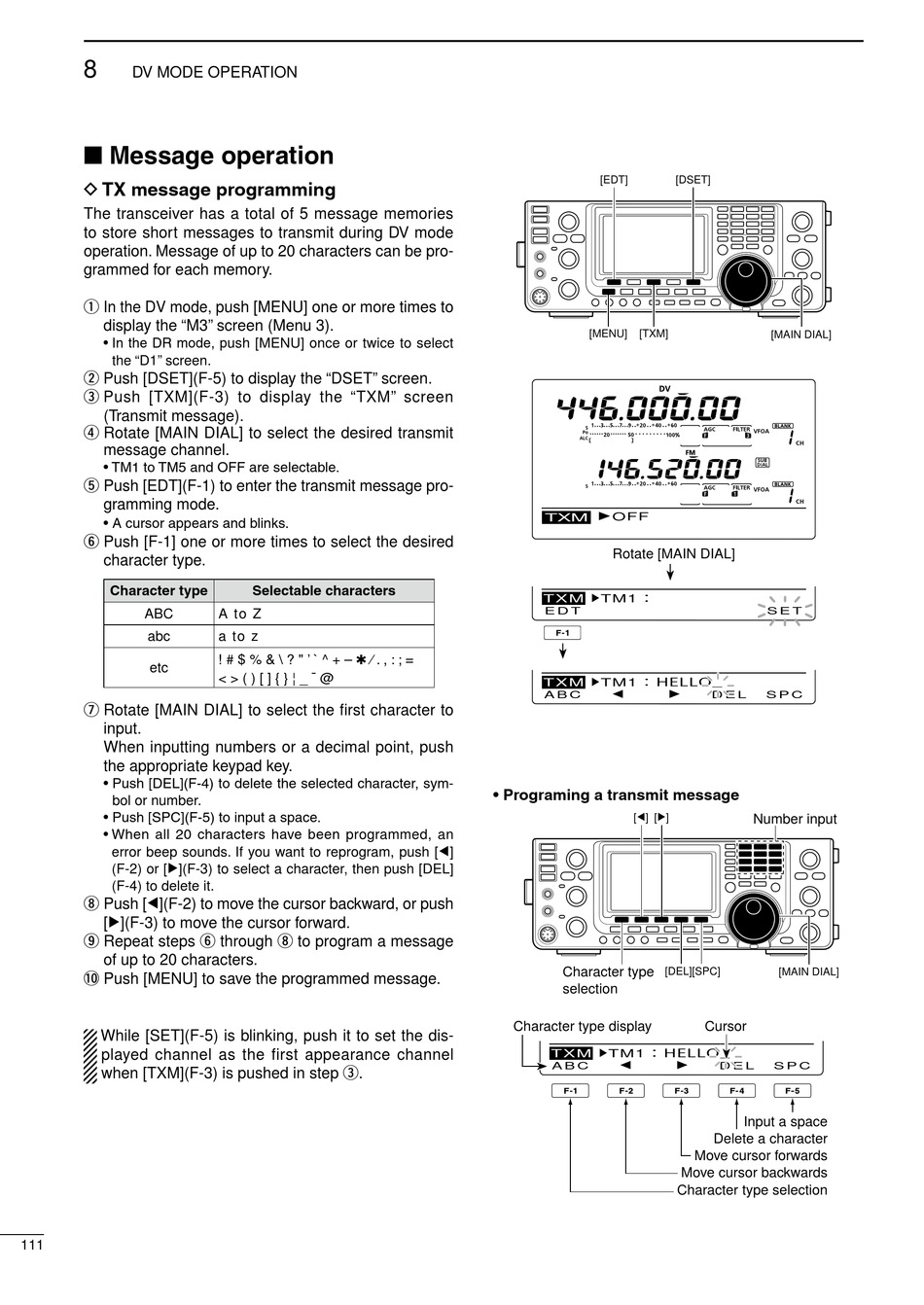

Message Operation; D Tx Message Programming - Icom i9100 Instruction Manual

8
DV MODE OPERATION

■ Message operation

D TX message programming

The transceiver has a total of 5 message memories
to store short messages to transmit during DV mode
operation. Message of up to 20 characters can be pro-
grammed for each memory.
q In the DV mode, push [MENU] one or more times to
display the "M3" screen (Menu 3).
• In the DR mode, push [MENU] once or twice to select
the "D1" screen.
w Push [DSET](F-5) to display the "DSET" screen.
e Push [TXM](F-3) to display the "TXM" screen
(Transmit message).
r Rotate [MAIN DIAL] to select the desired transmit
message channel.
• TM1 to TM5 and OFF are selectable.
t Push [EDT](F-1) to enter the transmit message pro-
gramming mode.
• A cursor appears and blinks.
y Push [F-1] one or more times to select the desired
character type.
Character type
ABC
abc
etc
u Rotate [MAIN DIAL] to select the first character to
input.
When inputting numbers or a decimal point, push
the appropriate keypad key.
• Push [DEL](F-4) to delete the selected character, sym-
bol or number.
• Push [SPC](F-5) to input a space.
• When all 20 characters have been programmed, an
error beep sounds. If you want to reprogram, push [Ω]
(F-2) or [≈](F-3) to select a character, then push [DEL]
(F-4) to delete it.
i Push [Ω](F-2) to move the cursor backward, or push
[≈](F-3) to move the cursor forward.
o Repeat steps y through i to program a message
of up to 20 characters.
!0 Push [MENU] to save the programmed message.
While [SET](F-5) is blinking, push it to set the dis-
played channel as the first appearance channel
when [TXM](F-3) is pushed in step e.
111
Selectable characters
A to Z
a to z
! # $ % & \ ? " ' ` ^ + – ✱ ⁄ . , : ; =
< > ( ) [ ] { } ¦ _ ¯ @
[EDT]
[MENU] [TXM]
≈OFF
TXM
Rotate [MAIN DIAL]
TXM ≈TM1
E D T
TXM ≈TM1
Ω
A B C
• Programing a transmit message
[Ω] [≈]
Character type
[DEL][SPC]
selection
Character type display
TXM ≈TM1
Ω
A B C
[DSET]
[MAIN DIAL]
S E T
≈
D E L S P C
Number input
[MAIN DIAL]
Cursor
≈
D E L S P C
Input a space
Delete a character
Move cursor forwards
Move cursor backwards
Character type selection
