4
RECEIVE AND TRANSMIT

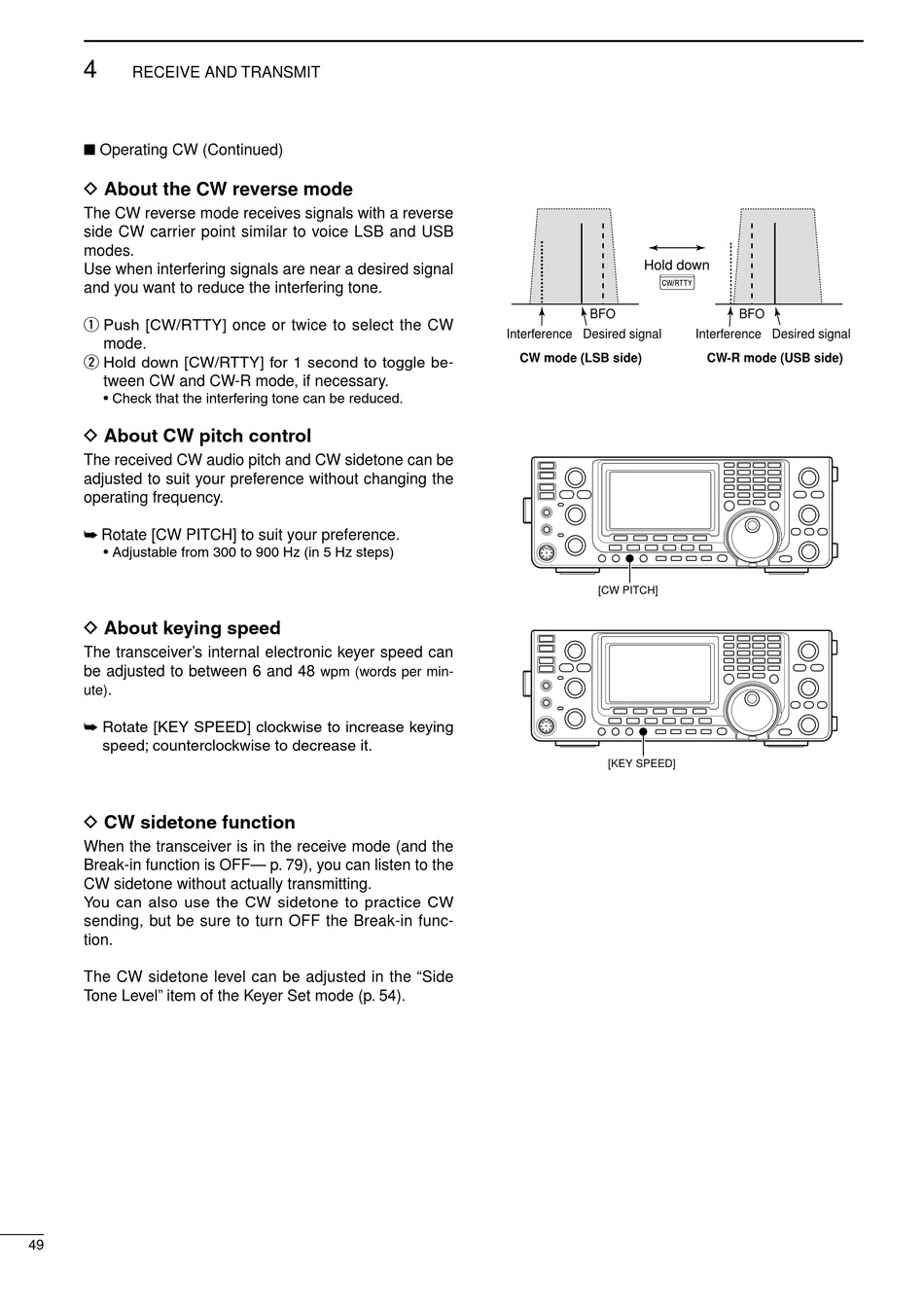

■ Operating CW (Continued)

D About the CW reverse mode

The CW reverse mode receives signals with a reverse
side CW carrier point similar to voice LSB and USB
modes.
Use when interfering signals are near a desired signal
and you want to reduce the interfering tone.
q Push [CW/RTTY] once or twice to select the CW
mode.
w Hold down [CW/RTTY] for 1 second to toggle be-
tween CW and CW-R mode, if necessary.
• Check that the interfering tone can be reduced.

D About CW pitch control

The received CW audio pitch and CW sidetone can be
adjusted to suit your preference without changing the
operating frequency.
➥ Rotate [CW PITCH] to suit your preference.
• Adjustable from 300 to 900 Hz (in 5 Hz steps)

D About keying speed

The transceiver's internal electronic keyer speed can
be adjusted to between 6 and 48
.
ute)
➥ Rotate [KEY SPEED] clockwise to increase keying
speed; counterclockwise to decrease it.

D CW sidetone function

When the transceiver is in the receive mode (and the
Break-in function is OFF— p. 79), you can listen to the
CW sidetone without actually transmitting.
You can also use the CW sidetone to practice CW
sending, but be sure to turn OFF the Break-in func-
tion.
The CW sidetone level can be adjusted in the "Side
Tone Level" item of the Keyer Set mode (p. 54).
49
wpm (words per min-
Hold down
BFO
Interference Desired signal
CW mode (LSB side)
[CW PITCH]
[KEY SPEED]
BFO
Interference Desired signal
CW-R mode (USB side)
