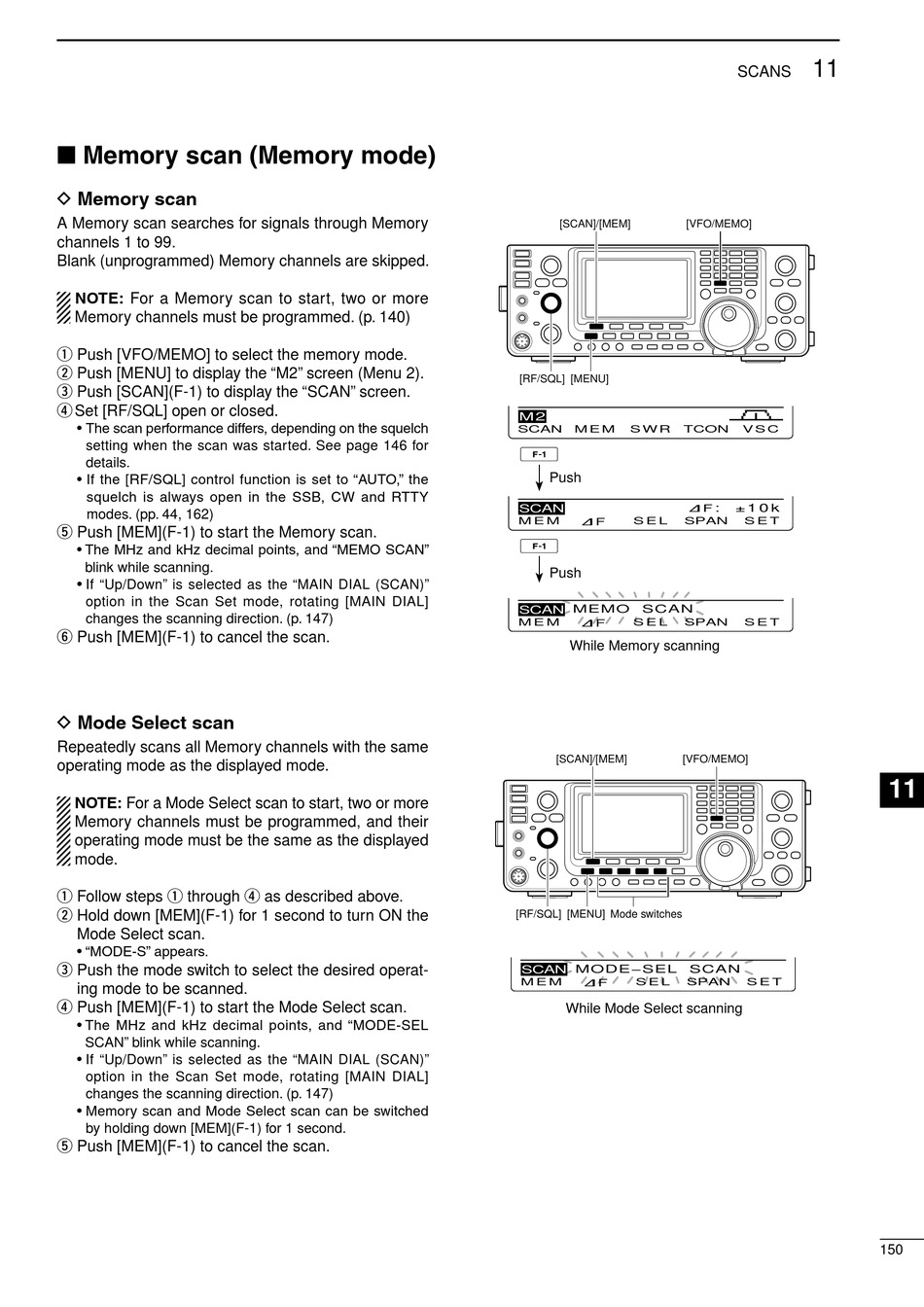

■ Memory scan (Memory mode)

D Memory scan

A Memory scan searches for signals through Memory
channels 1 to 99.
Blank (unprogrammed) Memory channels are skipped.
NOTE: For a Memory scan to start, two or more
Memory channels must be programmed. (p. 140)
q Push [VFO/MEMO] to select the memory mode.
w Push [MENU] to display the "M2" screen (Menu 2).
e Push [SCAN](F-1) to display the "SCAN" screen.
r Set [RF/SQL] open or closed.
• The scan performance differs, depending on the squelch
setting when the scan was started. See page 146 for
details.
• If the [RF/SQL] control function is set to "AUTO," the
squelch is always open in the SSB, CW and RTTY
modes. (pp. 44, 162)
t Push [MEM](F-1) to start the Memory scan.
• The MHz and kHz decimal points, and "MEMO SCAN"
blink while scanning.
• If "Up/Down" is selected as the "MAIN DIAL (SCAN)"
option in the Scan Set mode, rotating [MAIN DIAL]
changes the scanning direction. (p. 147)
y Push [MEM](F-1) to cancel the scan.

D Mode Select scan

Repeatedly scans all Memory channels with the same
operating mode as the displayed mode.
NOTE: For a Mode Select scan to start, two or more
Memory channels must be programmed, and their
operating mode must be the same as the displayed
mode.
q Follow steps q through r as described above.
w Hold down [MEM](F-1) for 1 second to turn ON the
Mode Select scan.
• "MODE-S" appears.
e Push the mode switch to select the desired operat-
ing mode to be scanned.
r Push [MEM](F-1) to start the Mode Select scan.
• The MHz and kHz decimal points, and "MODE-SEL
SCAN" blink while scanning.
• If "Up/Down" is selected as the "MAIN DIAL (SCAN)"
option in the Scan Set mode, rotating [MAIN DIAL]
changes the scanning direction. (p. 147)
• Memory scan and Mode Select scan can be switched
by holding down [MEM](F-1) for 1 second.
t Push [MEM](F-1) to cancel the scan.
[SCAN]/[MEM] [VFO/MEMO]
[RF/SQL] [MENU]
M2
SCAN M E M S W R TCON
Push
∂ F
SCAN
∂ F
M E M S E L SPAN
Push
MEMO SCAN
SCAN
∂ F
M E M S E L SPAN
While Memory scanning
[SCAN]/[MEM] [VFO/MEMO]
[RF/SQL] [MENU] Mode switches
MODE−SEL SCAN
SCAN
∂ F
M E M S E L SPAN
While Mode Select scanning
