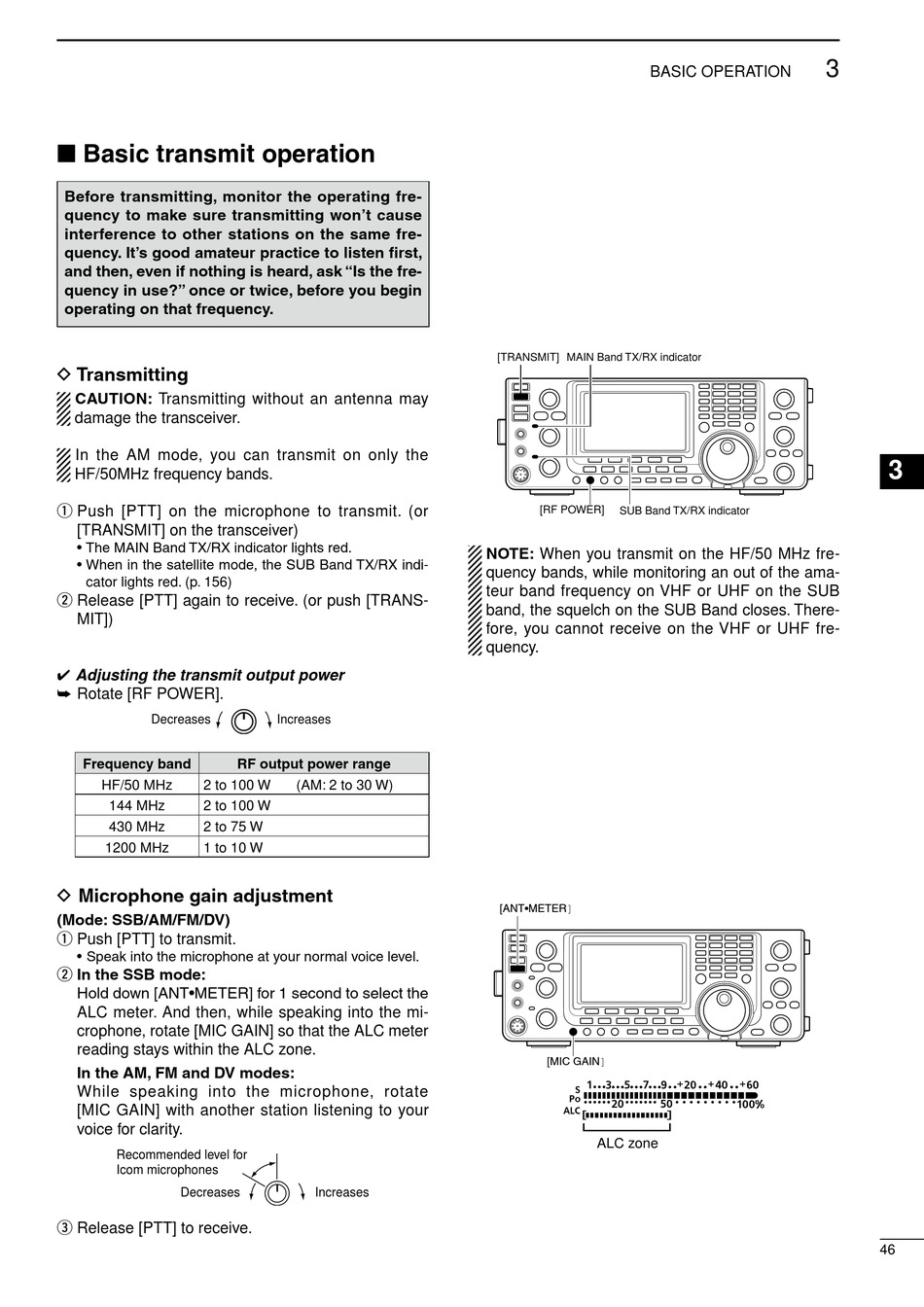

■ Basic transmit operation

Before transmitting, monitor the operating fre-
quency to make sure transmitting won't cause
interference to other stations on the same fre-
quency. It's good amateur practice to listen first,
and then, even if nothing is heard, ask "Is the fre-
quency in use?" once or twice, before you begin
operating on that frequency.

D Transmitting

CAUTION: Transmitting without an antenna may
damage the transceiver.
In the AM mode, you can transmit on only the
HF/50MHz frequency bands.
q Push [PTT] on the microphone to transmit. (or
[TRANSMIT] on the transceiver)
• The MAIN Band TX/RX indicator lights red.
• When in the satellite mode, the SUB Band TX/RX indi-
cator lights red. (p. 156)
w Release [PTT] again to receive. (or push [TRANS-
MIT])
✔ Adjusting the transmit output power
➥ Rotate [RF POWER].
Decreases
Frequency band
HF/50 MHz 2 to 100 W
144 MHz 2 to 100 W
430 MHz 2 to 75 W
1200 MHz 1 to 10 W

D Microphone gain adjustment

(Mode: SSB/AM/FM/DV)
q Push [PTT] to transmit.
• Speak into the microphone at your normal voice level.
w In the SSB mode:
Hold down [ANT•METER] for 1 second to select the
ALC meter. And then, while speaking into the mi-
crophone, rotate [MIC GAIN] so that the ALC meter
reading stays within the ALC zone.
In the AM, FM and DV modes:
While speaking into the microphone, rotate
[MIC GAIN] with another station listening to your
voice for clarity.
Recommended level for
Icom microphones
Decreases
e Release [PTT] to receive.
Increases
RF output power range
(AM: 2 to 30 W)
Increases
BASIC OPERATION
[TRANSMIT] MAIN Band TX/RX indicator
[RF POWER]
SUB Band TX/RX indicator
NOTE: When you transmit on the HF/50 MHz fre-
quency bands, while monitoring an out of the ama-
teur band frequency on VHF or UHF on the SUB
band, the squelch on the SUB Band closes. There-
fore, you cannot receive on the VHF or UHF fre-
quency.
[ANT•METER]
[MIC GAIN]
ALC zone
