INSTALLATION AND CONNECTIONS

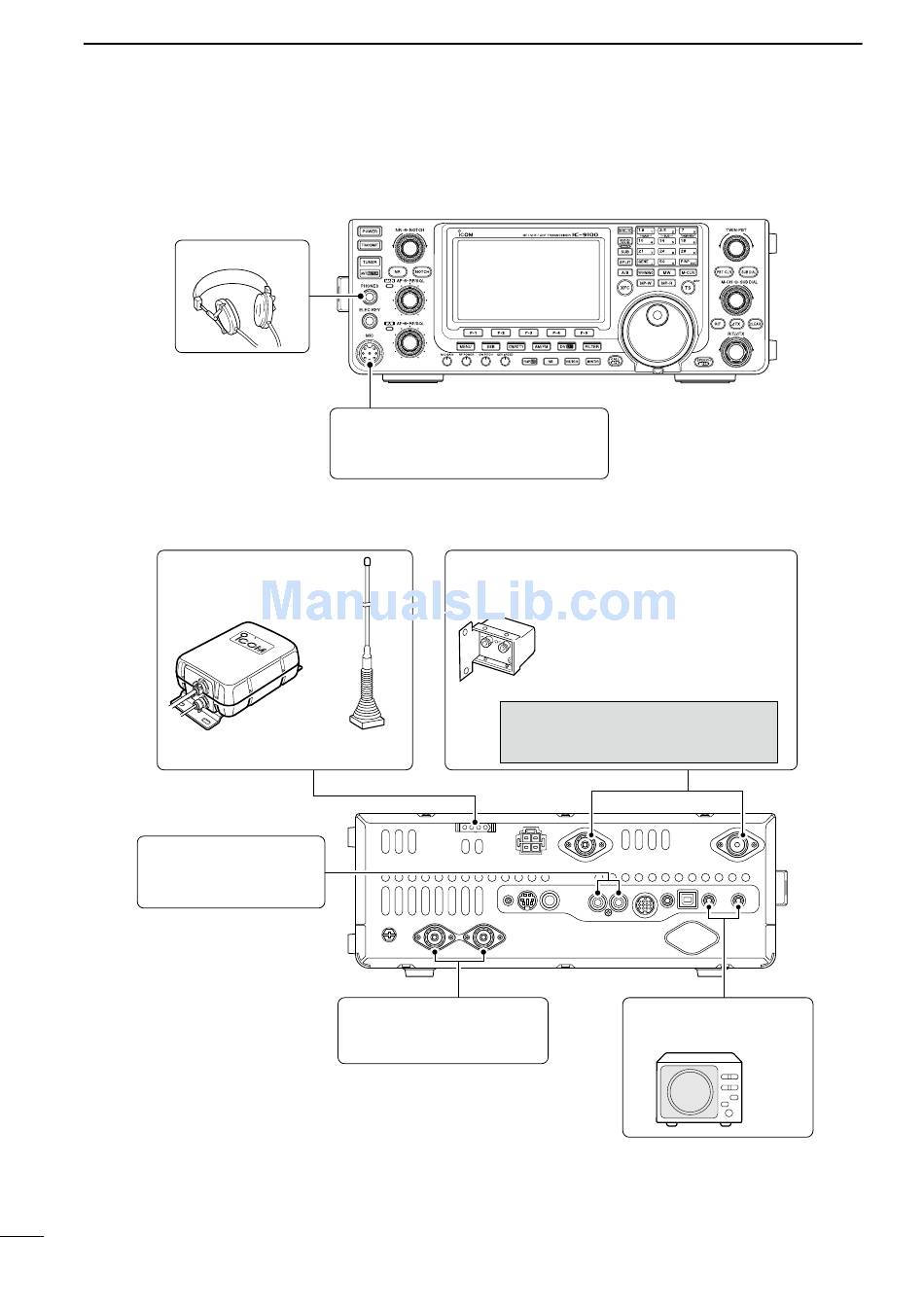

■ Advanced connections

D Front panel

HEADPHONES

D Rear panel

AH-4 (option)
(p. 29)
[ALC], [SEND] (p. 29)
Used for connecting a
non-Icom linear amplifier.
25
MIC
The AFSK modulation signal can also
be input to [MIC]. (p. 171)
PREAMP (p. 71)
(144 MHz and 430 MHz)
with
AH-2b (option)
or long wire
[ANT1], [ANT2] (pp. 28, 29)
Connect a linear amplifier,
antenna selector, etc.
144 MHz : AG-25 (option)
430 MHz : AG-35 (option)
External all-weather, mast-mounted
preamplifiers are available.
CAUTION: NEVER connect a power or
SWR meter, or other device between
the transceiver and preamplifier.
EXTERNAL SPEAKER
(MAIN/SUB)
SP-23
(option)
