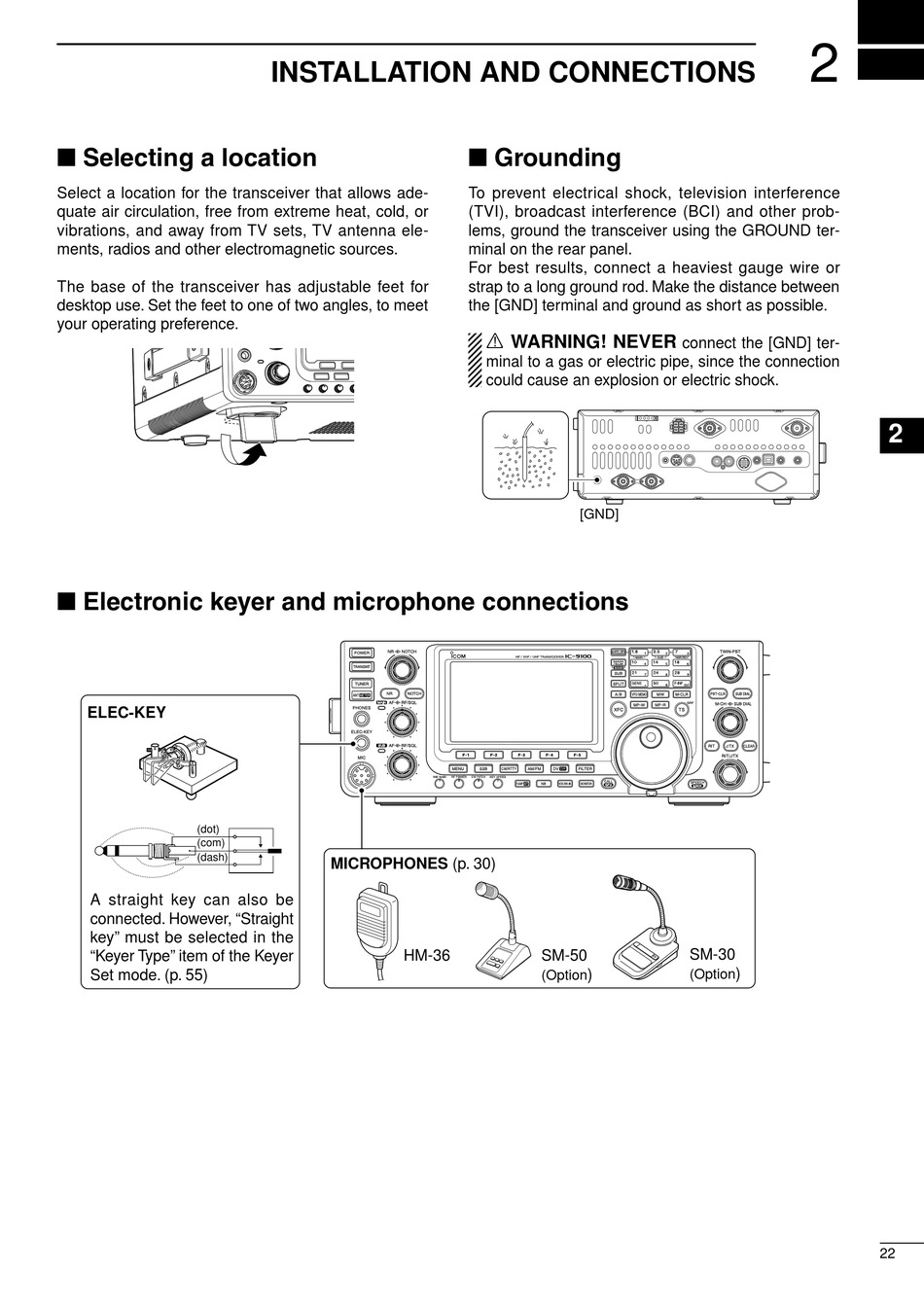

■ Selecting a location

Select a location for the transceiver that allows ade-
quate air circulation, free from extreme heat, cold, or
vibrations, and away from TV sets, TV antenna ele-
ments, radios and other electromagnetic sources.
The base of the transceiver has adjustable feet for
desktop use. Set the feet to one of two angles, to meet
your operating preference.

■ Electronic keyer and microphone connections

ELEC-KEY
(dot)
(com)
(dash)
A straight key can also be
connected. However, "Straight
key" must be selected in the
"Keyer Type" item of the Keyer
Set mode. (p. 55)

INSTALLATION AND CONNECTIONS

MICROPHONES (p. 30)
HM-36

■ Grounding

To prevent electrical shock, television interference
(TVI), broadcast interference (BCI) and other prob-
lems, ground the transceiver using the GROUND ter-
minal on the rear panel.
For best results, connect a heaviest gauge wire or
strap to a long ground rod. Make the distance between
the [GND] terminal and ground as short as possible.
R WARNING! NEVER
minal to a gas or electric pipe, since the connection
could cause an explosion or electric shock.
[GND]
SM-50
)
(Option
2
connect the [GND] ter-
SM-30
)
(Option
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
