8
DV MODE OPERATION

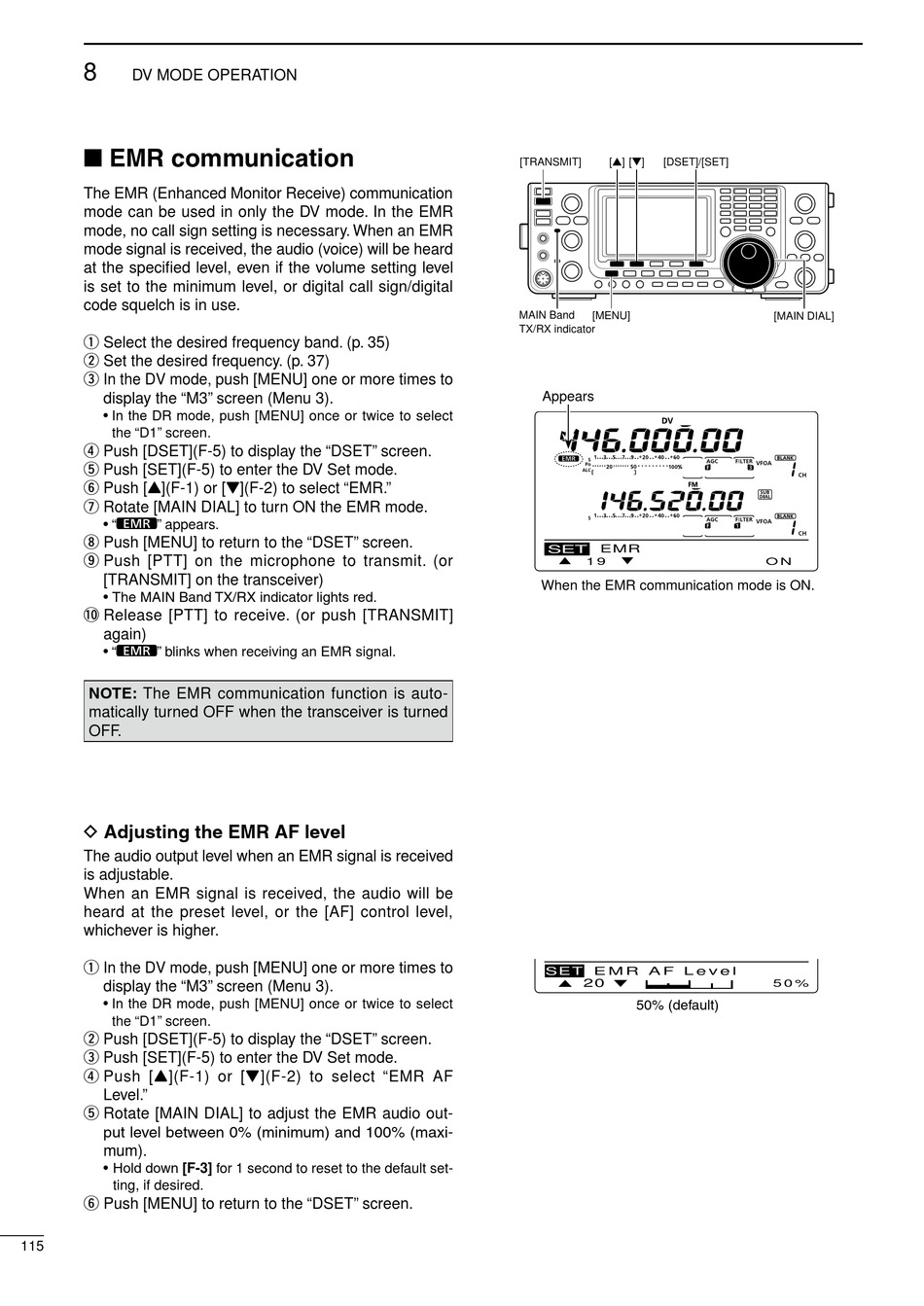

■ EMR communication

The EMR (Enhanced Monitor Receive) communication
mode can be used in only the DV mode. In the EMR
mode, no call sign setting is necessary. When an EMR
mode signal is received, the audio (voice) will be heard
at the specified level, even if the volume setting level
is set to the minimum level, or digital call sign/digital
code squelch is in use.
q Select the desired frequency band. (p. 35)
w Set the desired frequency. (p. 37)
e In the DV mode, push [MENU] one or more times to
display the "M3" screen (Menu 3).
• In the DR mode, push [MENU] once or twice to select
the "D1" screen.
r Push [DSET](F-5) to display the "DSET" screen.
t Push [SET](F-5) to enter the DV Set mode.
y Push [Y](F-1) or [Z](F-2) to select "EMR."
u Rotate [MAIN DIAL] to turn ON the EMR mode.
• "
" appears.
i Push [MENU] to return to the "DSET" screen.
o Push [PTT] on the microphone to transmit. (or
[TRANSMIT] on the transceiver)
• The MAIN Band TX/RX indicator lights red.
!0 Release [PTT] to receive. (or push [TRANSMIT]
again)
• "
" blinks when receiving an EMR signal.
NOTE: The EMR communication function is auto-
matically turned OFF when the transceiver is turned
OFF.

D Adjusting the EMR AF level

The audio output level when an EMR signal is received
is adjustable.
When an EMR signal is received, the audio will be
heard at the preset level, or the [AF] control level,
whichever is higher.
q In the DV mode, push [MENU] one or more times to
display the "M3" screen (Menu 3).
• In the DR mode, push [MENU] once or twice to select
the "D1" screen.
w Push [DSET](F-5) to display the "DSET" screen.
e Push [SET](F-5) to enter the DV Set mode.
r Push [Y](F-1) or [Z](F-2) to select "EMR AF
Level."
t Rotate [MAIN DIAL] to adjust the EMR audio out-
put level between 0% (minimum) and 100% (maxi-
mum).
• Hold down [F-3] for 1 second to reset to the default set-
ting, if desired.
y Push [MENU] to return to the "DSET" screen.
115
[TRANSMIT] [�] [�] [DSET]/[SET]
MAIN Band [MENU]
TX/RX indicator
Appears
EMR
SET
∫ √
1 9
When the EMR communication mode is ON.
SET E M R A F L e v e l
Ù Ú
20
50% (default)
[MAIN DIAL]
O N
5 0 %
