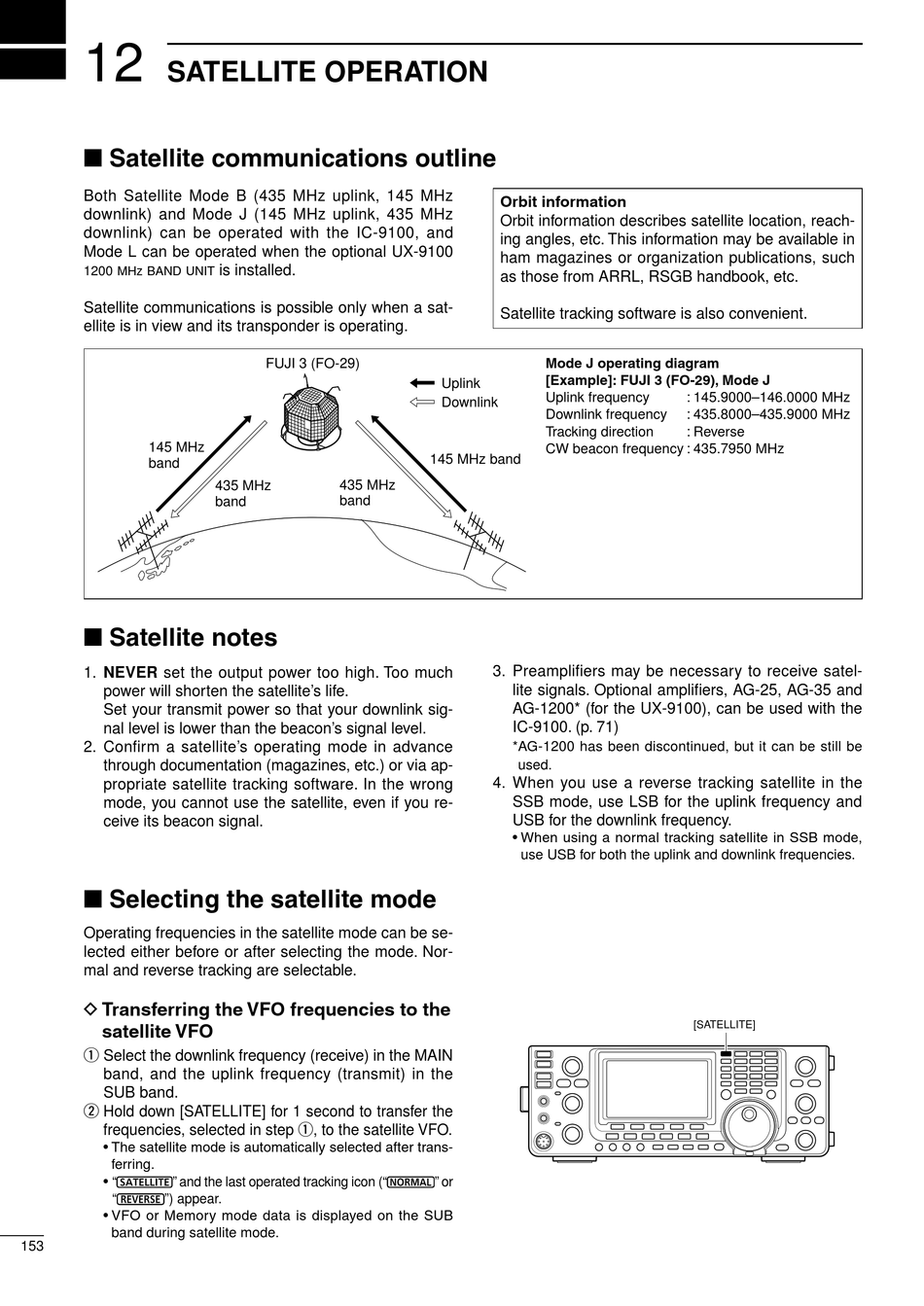

SATELLITE OPERATION

■ Satellite communications outline

Both Satellite Mode B (435 MHz uplink, 145 MHz
downlink) and Mode J (145 MHz uplink, 435 MHz
downlink) can be operated with the IC-9100, and
Mode L can be operated when the optional UX-9100
mhz band unit
1200
Satellite communications is possible only when a sat-
ellite is in view and its transponder is operating.
145 MHz
band

■ Satellite notes

1. NEVER set the output power too high. Too much
power will shorten the satellite's life.
Set your transmit power so that your downlink sig-
nal level is lower than the beacon's signal level.
2. Confirm a satellite's operating mode in advance
through documentation (magazines, etc.) or via ap-
propriate satellite tracking software. In the wrong
mode, you cannot use the satellite, even if you re-
ceive its beacon signal.

■ Selecting the satellite mode

Operating frequencies in the satellite mode can be se-
lected either before or after selecting the mode. Nor-
mal and reverse tracking are selectable.
D Transferring the VFO frequencies to the
satellite VFO
q Select the downlink frequency (receive) in the MAIN
band, and the uplink frequency (transmit) in the
SUB band.
w Hold down [SATELLITE] for 1 second to transfer the
frequencies, selected in step q, to the satellite VFO.
• The satellite mode is automatically selected after trans-
ferring.
• "
" and the last operated tracking icon ("
" ") appear.
• VFO or Memory mode data is displayed on the SUB
band during satellite mode.
153
is installed.
FUJI 3 (FO-29)
435 MHz
435 MHz
band
band
Orbit information
Orbit information describes satellite location, reach-
ing angles, etc. This information may be available in
ham magazines or organization publications, such
as those from ARRL, RSGB handbook, etc.
Satellite tracking software is also convenient.
Mode J operating diagram
[Example]: FUJI 3 (FO-29), Mode J
Uplink
Uplink frequency
Downlink
Downlink frequency
Tracking direction
CW beacon frequency : 435.7950 MHz
145 MHz band
3. Preamplifiers may be necessary to receive satel-
lite signals. Optional amplifiers, AG-25, AG-35 and
AG-1200* (for the UX-9100), can be used with the
IC-9100. (p. 71)
* AG-1200 has been discontinued, but it can be still be
used.
4. When you use a reverse tracking satellite in the
SSB mode, use LSB for the uplink frequency and
USB for the downlink frequency.
• When using a normal tracking satellite in SSB mode,
use USB for both the uplink and downlink frequencies.
" or
: 145.9000–146.0000 MHz
: 435.8000–435.9000 MHz
: Reverse
[SATELLITE]
