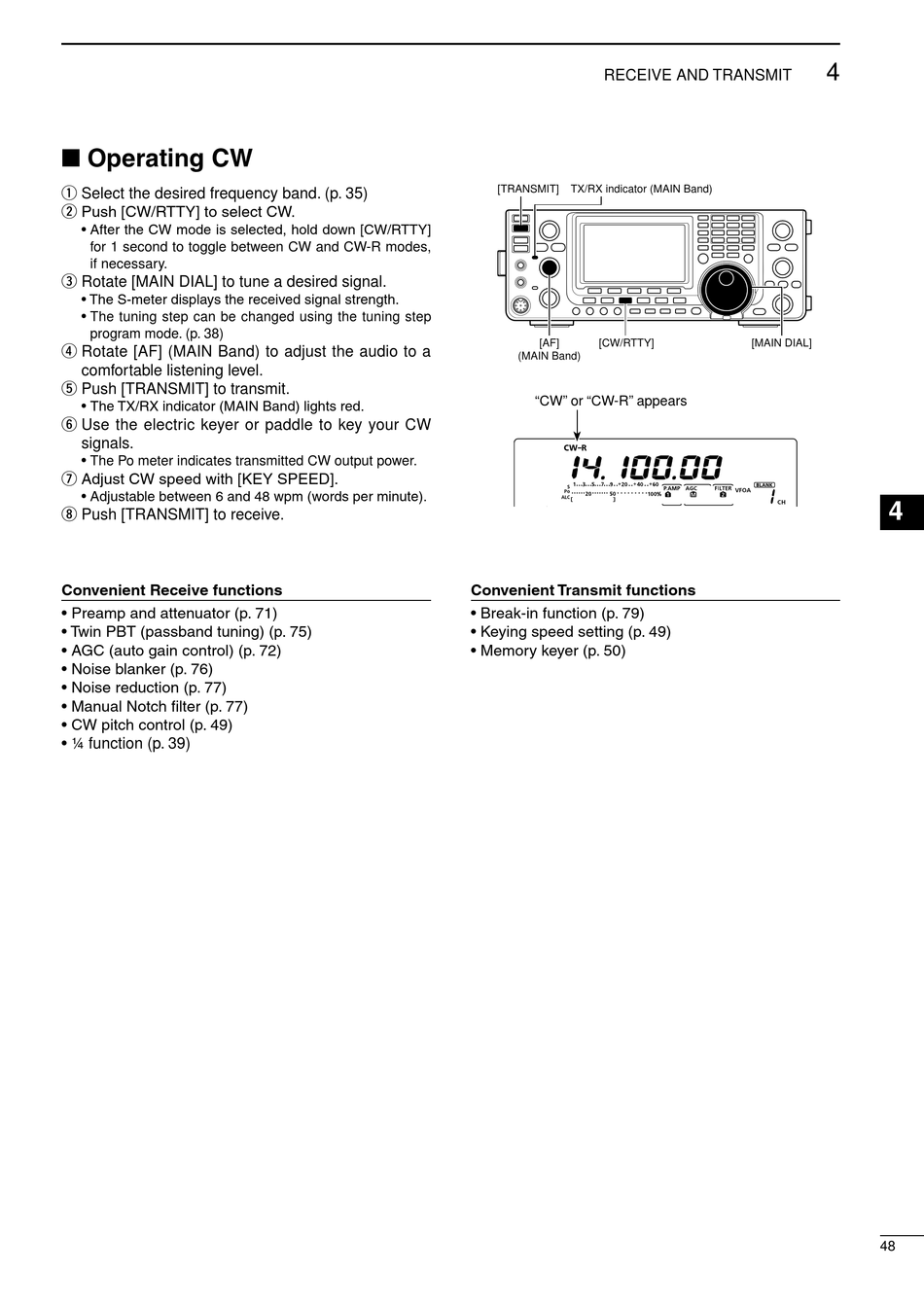

■ Operating CW

q Select the desired frequency band. (p. 35)
w Push [CW/RTTY] to select CW.
• After the CW mode is selected, hold down [CW/RTTY]
for 1 second to toggle between CW and CW-R modes,
if necessary.
e Rotate [MAIN DIAL] to tune a desired signal.
• The S-meter displays the received signal strength.
• The tuning step can be changed using the tuning step
program mode. (p. 38)
r Rotate [AF] (MAIN Band) to adjust the audio to a
comfortable listening level.
t Push [TRANSMIT] to transmit.
• The TX/RX indicator (MAIN Band) lights red.
y Use the electric keyer or paddle to key your CW
signals.
• The Po meter indicates transmitted CW output power.
u Adjust CW speed with [KEY SPEED].
• Adjustable between 6 and 48 wpm (words per minute).
i Push [TRANSMIT] to receive.
Convenient Receive functions
• Preamp and attenuator (p. 71)
• Twin PBT (passband tuning) (p. 75)
• AGC (auto gain control) (p. 72)
• Noise blanker (p. 76)
• Noise reduction (p. 77)
• Manual Notch filter (p. 77)
• CW pitch control (p. 49)
• ¼ function (p. 39)
RECEIVE AND TRANSMIT
[TRANSMIT] TX/RX indicator (MAIN Band)
[AF] [CW/RTTY]
(MAIN Band)
"CW" or "CW-R" appears
M1
Convenient Transmit functions
A G C D U P 1 / 4
• Break-in function (p. 79)
• Keying speed setting (p. 49)
• Memory keyer (p. 50)
4
[MAIN DIAL]
