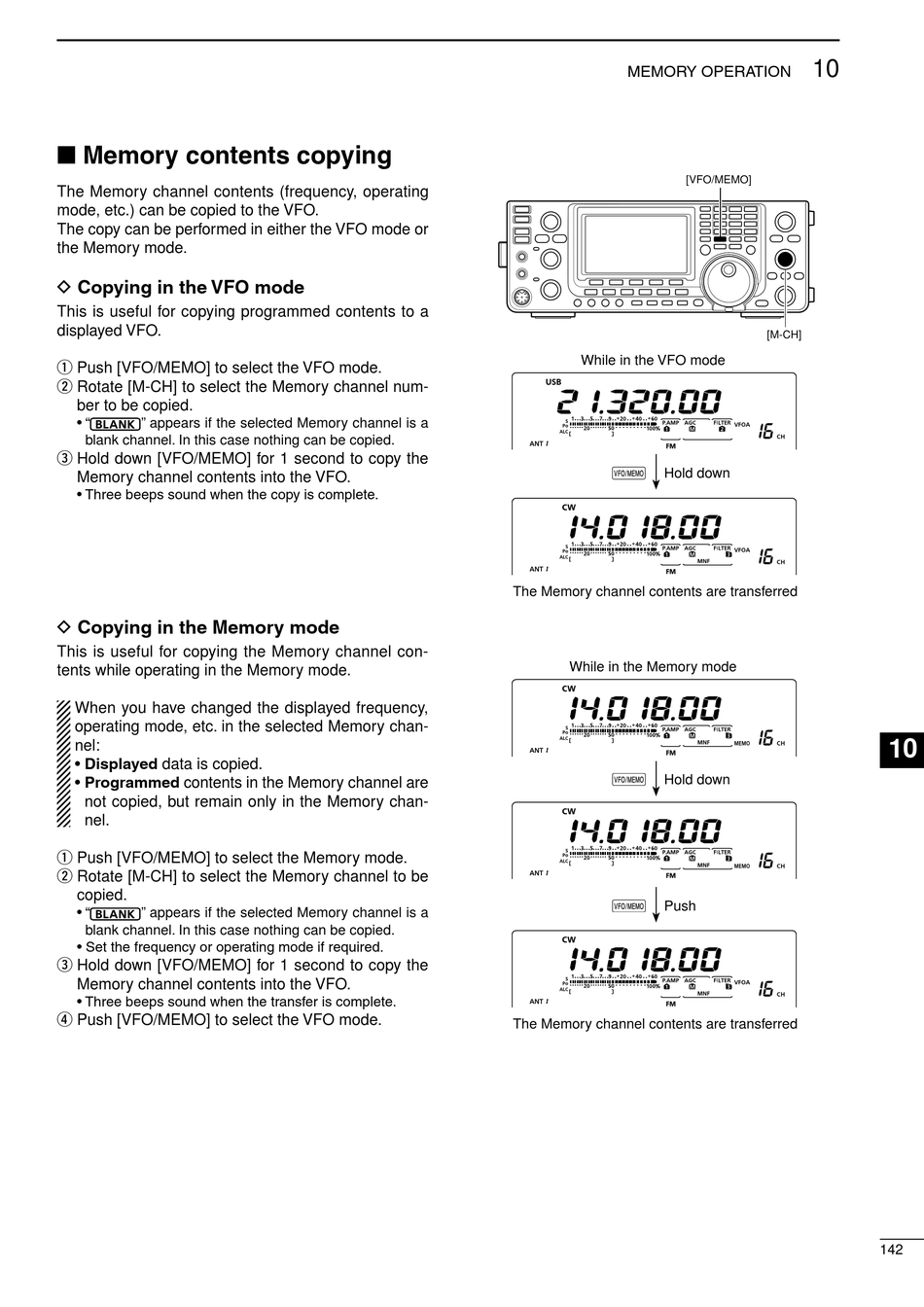

■ Memory contents copying

The Memory channel contents (frequency, operating
mode, etc.) can be copied to the VFO.
The copy can be performed in either the VFO mode or
the Memory mode.

D Copying in the VFO mode

This is useful for copying programmed contents to a
displayed VFO.
q Push [VFO/MEMO] to select the VFO mode.
w Rotate [M-CH] to select the Memory channel num-
ber to be copied.
• "
" appears if the selected Memory channel is a
blank channel. In this case nothing can be copied.
e Hold down [VFO/MEMO] for 1 second to copy the
Memory channel contents into the VFO.
• Three beeps sound when the copy is complete.

D Copying in the Memory mode

This is useful for copying the Memory channel con-
tents while operating in the Memory mode.
When you have changed the displayed frequency,
operating mode, etc. in the selected Memory chan-
nel:
• Displayed data is copied.
• Programmed contents in the Memory channel are
not copied, but remain only in the Memory chan-
nel.
q Push [VFO/MEMO] to select the Memory mode.
w Rotate [M-CH] to select the Memory channel to be
copied.
• "
" appears if the selected Memory channel is a
blank channel. In this case nothing can be copied.
• Set the frequency or operating mode if required.
e Hold down [VFO/MEMO] for 1 second to copy the
Memory channel contents into the VFO.
• Three beeps sound when the transfer is complete.
r Push [VFO/MEMO] to select the VFO mode.
MEMORY OPERATION
[VFO/MEMO]
While in the VFO mode
Hold down
M1
A G C D U P C O M P T B W
The Memory channel contents are transferred
M1
A G C D U P C O M P T B W
While in the Memory mode
Hold down
M1
A G C D U P C O M P T B W
Push
M1
A G C D U P C O M P T B W
The Memory channel contents are transferred
M1
A G C D U P C O M P T B W
10
[M-CH]
1
2
3
4
S C P
5
6
7
S C P
8
9
10
11
12
S C P
13
14
15
S C P
16
17
18
S C P
19
20
21
142
