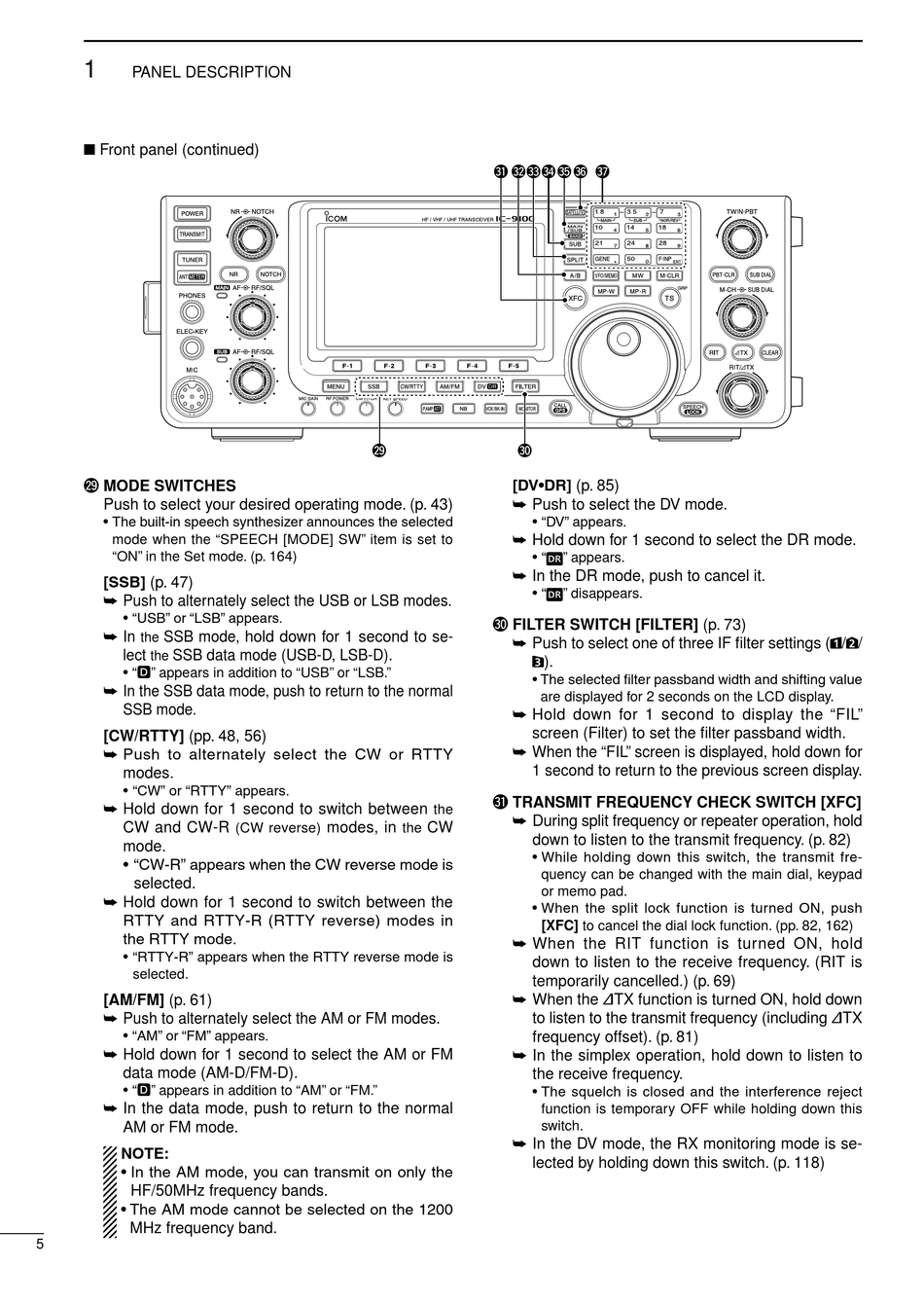

Icom i9100 Instruction Manual page 14

1
PANEL DESCRIPTION
■ Front panel (continued)
@9 MODE SWITCHES
Push to select your desired operating mode. (p. 43)
• The built-in speech synthesizer announces the selected
mode when the "SPEECH [MODE] SW" item is set to
"ON" in the Set mode. (p. 164)
[SSB] (p. 47)
➥ Push to alternately select the USB or LSB modes.
• "USB" or "LSB" appears.
➥ In
SSB mode, hold down for 1 second to se-
the
lect SSB data mode (USB-D, LSB-D).
the
• "D" appears in addition to "USB" or "LSB."
➥ In the SSB data mode, push to return to the normal
SSB mode.
[CW/RTTY] (pp. 48, 56)
➥ Push to alternately select the CW or RTTY
modes.
• "CW" or "RTTY" appears.
➥ Hold down for 1 second to switch between
CW and CW-R
mode.
• "CW-R" appears when the CW reverse mode is
selected.
➥ Hold down for 1 second to switch between the
RTTY and RTTY-R (RTTY reverse) modes in
the RTTY mode.
• "RTTY-R" appears when the RTTY reverse mode is
selected.
[AM/FM] (p. 61)
➥ Push to alternately select the AM or FM modes.
• "AM" or "FM" appears.
➥ Hold down for 1 second to select the AM or FM
data mode (AM-D/FM-D).
• "D" appears in addition to "AM" or "FM."
➥ In the data mode, push to return to the normal
AM or FM mode.
NOTE:
• In the AM mode, you can transmit on only the
HF/50MHz frequency bands.
• The AM mode cannot be selected on the 1200
MHz frequency band.
5
@9
modes, in
(CW reverse) the
#1 #2 # 3 # 4 # 5 #6 #7
#0
[DV•DR] (p. 85)
➥ Push to select the DV mode.
• "DV" appears.
➥ Hold down for 1 second to select the DR mode.
• "
" appears.
➥ In the DR mode, push to cancel it.
• "
" disappears.
#0 FILTER SWITCH [FILTER] (p. 73)
➥ Push to select one of three IF filter settings ( / /
).
• The selected filter passband width and shifting value
are displayed for 2 seconds on the LCD display.
➥ Hold down for 1 second to display the "FIL"
screen (Filter) to set the filter passband width.
➥ When the "FIL" screen is displayed, hold down for
1 second to return to the previous screen display.
#1 TRANSMIT FREQUENCY CHECK SWITCH [XFC]
the
➥ During split frequency or repeater operation, hold
CW
down to listen to the transmit frequency. (p. 82)
• While holding down this switch, the transmit fre-
quency can be changed with the main dial, keypad
or memo pad.
• When the split lock function is turned ON, push
[XFC] to cancel the dial lock function. (pp. 82, 162)
➥ When the RIT function is turned ON, hold
down to listen to the receive frequency. (RIT is
temporarily cancelled.) (p. 69)
➥ When the ∂TX function is turned ON, hold down
to listen to the transmit frequency (including ∂TX
frequency offset). (p. 81)
➥ In the simplex operation, hold down to listen to
the receive frequency.
• The squelch is closed and the interference reject
function is temporary OFF while holding down this
switch.
➥ In the DV mode, the RX monitoring mode is se-
lected by holding down this switch. (p. 118)
