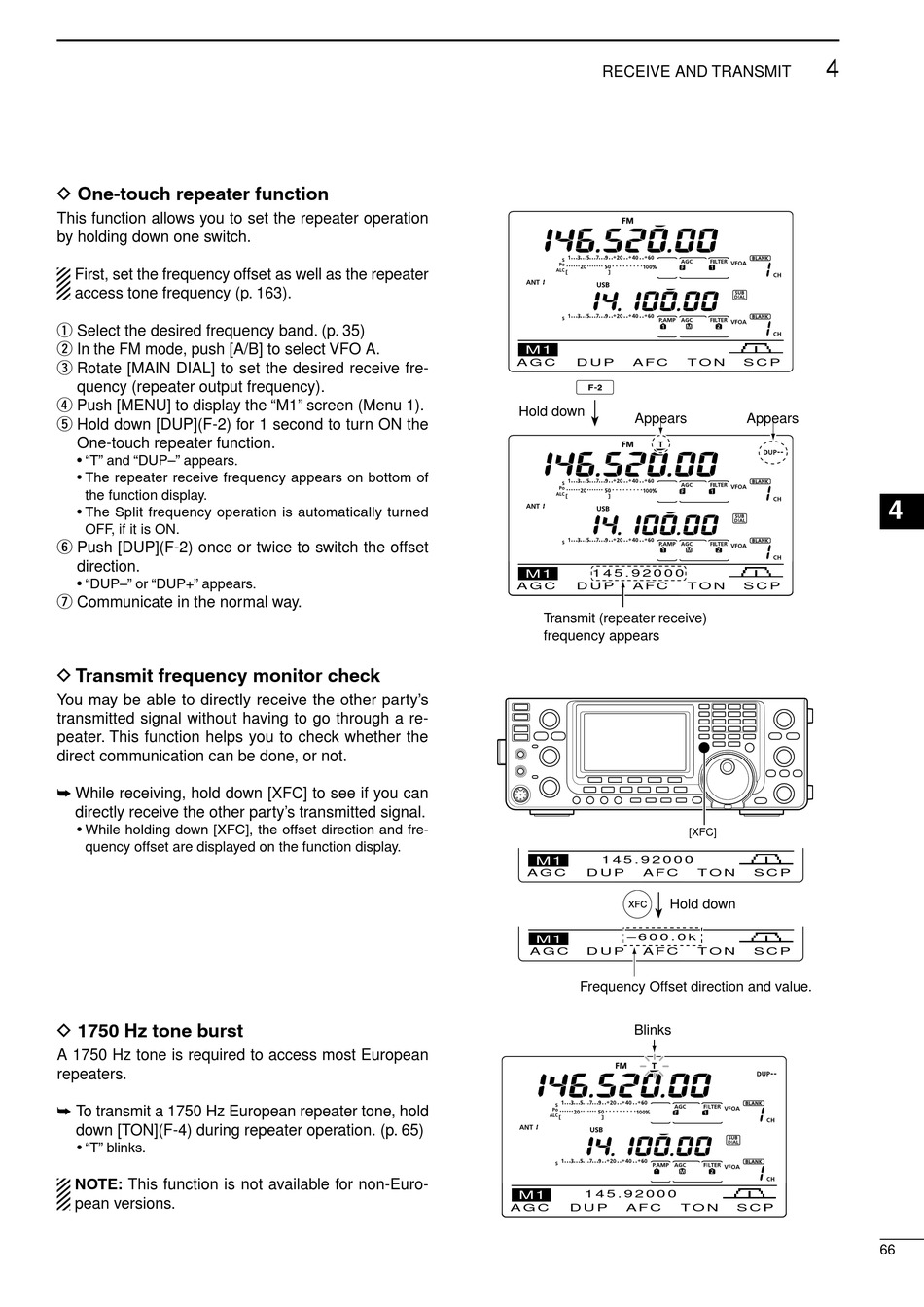

D One-touch repeater function

This function allows you to set the repeater operation
by holding down one switch.
First, set the frequency offset as well as the repeater
access tone frequency (p. 163).
q Select the desired frequency band. (p. 35)
w In the FM mode, push [A/B] to select VFO A.
e Rotate [MAIN DIAL] to set the desired receive fre-
quency (repeater output frequency).
r Push [MENU] to display the "M1" screen (Menu 1).
t Hold down [DUP](F-2) for 1 second to turn ON the
One-touch repeater function.
• "T" and "DUP–" appears.
• The repeater receive frequency appears on bottom of
the function display.
• The Split frequency operation is automatically turned
OFF, if it is ON.
y Push [DUP](F-2) once or twice to switch the offset
direction.
• "DUP–" or "DUP+" appears.
u Communicate in the normal way.

D Transmit frequency monitor check

You may be able to directly receive the other party's
transmitted signal without having to go through a re-
peater. This function helps you to check whether the
direct communication can be done, or not.
➥ While receiving, hold down [XFC] to see if you can
directly receive the other party's transmitted signal.
• While holding down [XFC], the offset direction and fre-
quency offset are displayed on the function display.

D 1750 Hz tone burst

A 1750 Hz tone is required to access most European
repeaters.
➥ To transmit a 1750 Hz European repeater tone, hold
down [TON](F-4) during repeater operation. (p. 65)
• "T" blinks.
NOTE: This function is not available for non-Euro-
pean versions.
RECEIVE AND TRANSMIT
M1
A G C D U P A F C
Hold down
Appears
M1 1 4 5 . 9 2 0 0 0
A G C D U P A F C
Transmit (repeater receive)
frequency appears
M1 1 4 5 . 9 2 0 0 0
A G C D U P A F C
Hold down
– 6 0 0 . 0 k
M1
A G C D U P A F C
Frequency Offset direction and value.
Blinks
M1
1 4 5 . 9 2 0 0 0
A G C D U P A F C T O N
4
T O N S C P
Appears
T O N S C P
[XFC]
T O N S C P
T O N S C P
