Icom i9100 Instruction Manual page 113

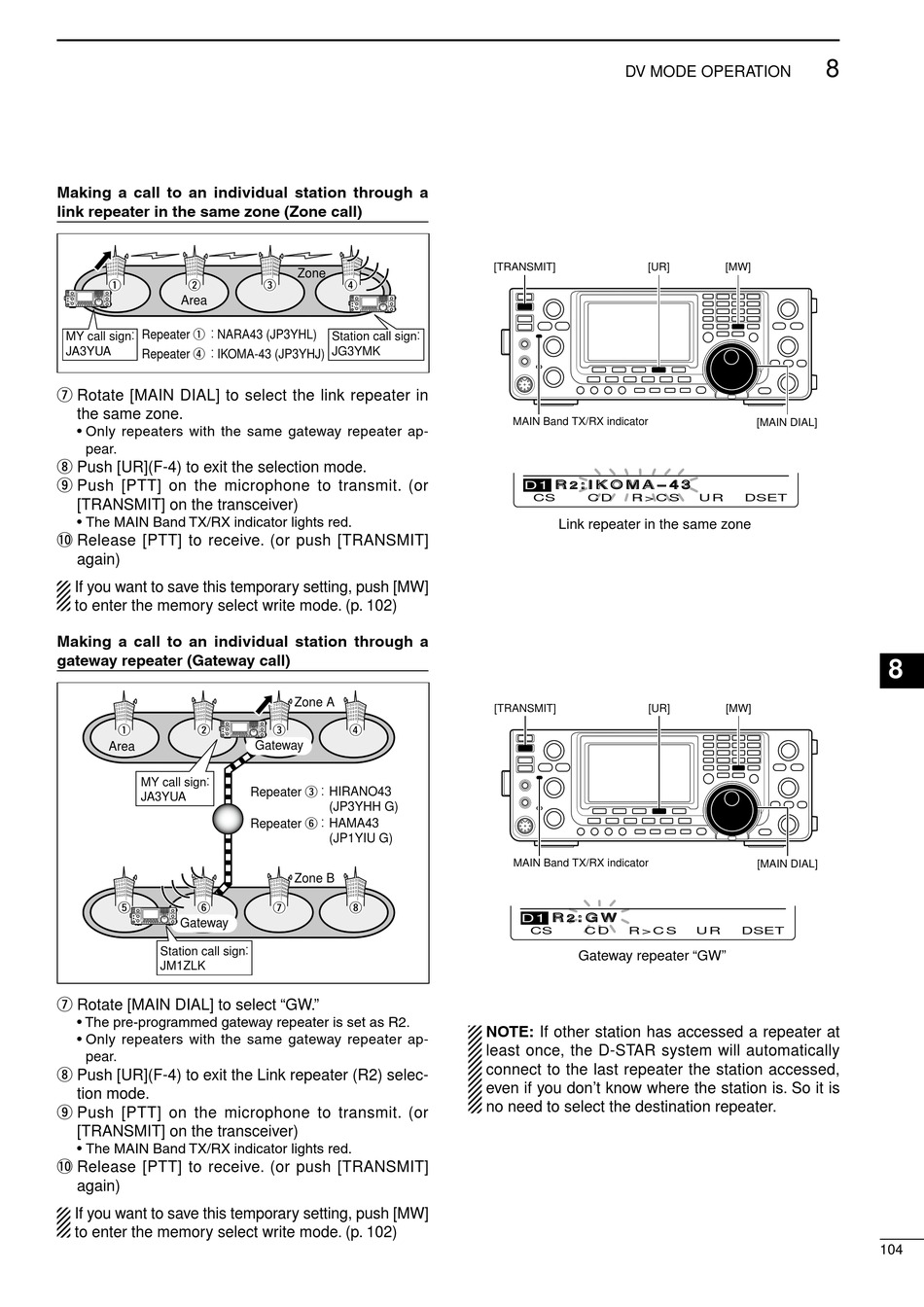

Making a call to an individual station through a
link repeater in the same zone (Zone call)
q w
Area
Repeater q NARA43 (JP3YHL)
MY call sign
JA3YUA
Repeater r IKOMA-43 (JP3YHJ)
u Rotate [MAIN DIAL] to select the link repeater in
the same zone.
• Only repeaters with the same gateway repeater ap-
pear.
i Push [UR](F-4) to exit the selection mode.
o Push [PTT] on the microphone to transmit. (or
[TRANSMIT] on the transceiver)
• The MAIN Band TX/RX indicator lights red.
!0 Release [PTT] to receive. (or push [TRANSMIT]
again)
If you want to save this temporary setting, push [MW]
to enter the memory select write mode. (p. 102)
Making a call to an individual station through a
gateway repeater (Gateway call)
q w
Area
MY call sign
JA3YUA
t y
Gateway
Station call sign
JM1ZLK
u Rotate [MAIN DIAL] to select "GW."
• The pre-programmed gateway repeater is set as R2.
• Only repeaters with the same gateway repeater ap-
pear.
i Push [UR](F-4) to exit the Link repeater (R2) selec-
tion mode.
o Push [PTT] on the microphone to transmit. (or
[TRANSMIT] on the transceiver)
• The MAIN Band TX/RX indicator lights red.
!0 Release [PTT] to receive. (or push [TRANSMIT]
again)
If you want to save this temporary setting, push [MW]
to enter the memory select write mode. (p. 102)
Zone
e r
Station call sign
JG3YMK
Zone A
e r
Gateway
Repeater e
HIRANO43
(JP3YHH G)
Repeater y
HAMA43
(JP1YIU G)
Zone B
u i
DV MODE OPERATION
[TRANSMIT] [UR]
MAIN Band TX/RX indicator
R : I K O M A − 4 3
D1 2
CS C D R > C S
Link repeater in the same zone
[TRANSMIT] [UR]
MAIN Band TX/RX indicator
R : G W
D1 2
CS C D R > C S
Gateway repeater "GW"
NOTE: If other station has accessed a repeater at
least once, the D-STAR system will automatically
connect to the last repeater the station accessed,
even if you don't know where the station is. So it is
no need to select the destination repeater.
8
[MW]
[MAIN DIAL]
U R DSET
[MW]
[MAIN DIAL]
U R DSET
