20 02 00 00* Send/read Auto DV RX status output OFF
2
01* Send/read Auto DV RX status output ON
01 see p. 194 Output DV RX status
02 see p. 194 Read DV RX status
1
* The counter can be inserted into only one channel.
2
* Output setting is automatically turned OFF after turning
the power OFF, then ON.

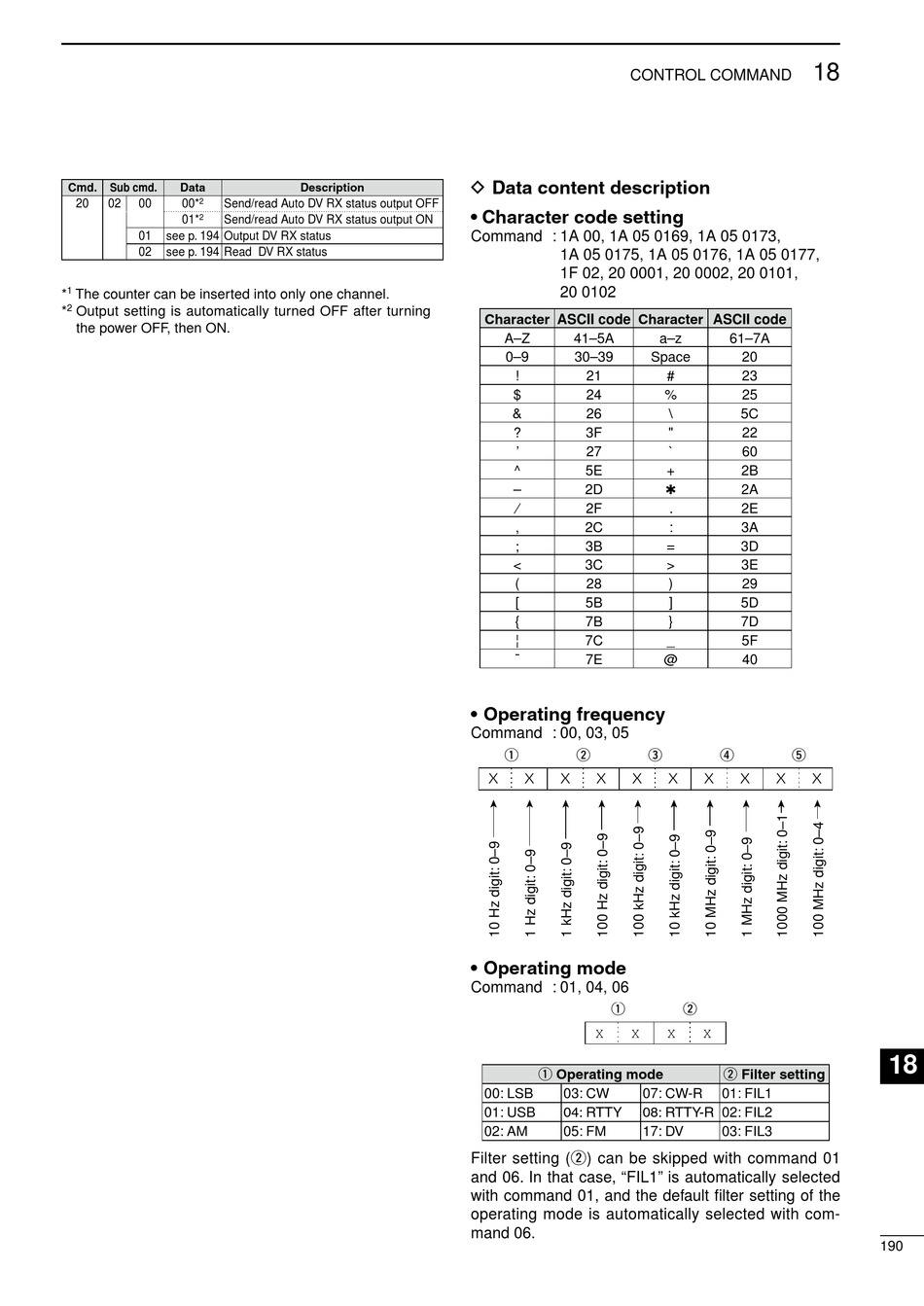

D Data content description

Description
• Character code setting
Command : 1A 00, 1A 05 0169, 1A 05 0173,
• Operating frequency
Command : 00, 03, 05
• Operating mode
Command : 01, 04, 06
Filter setting (w) can be skipped with command 01
and 06. In that case, "FIL1" is automatically selected
with command 01, and the default filter setting of the
operating mode is automatically selected with com-
mand 06.
CONTROL COMMAND
1A 05 0175, 1A 05 0176, 1A 05 0177,
1F 02, 20 0001, 20 0002, 20 0101,
20 0102
Character ASCII code Character ASCII code
A–Z 41–5A
0–9 30–39 Space
! 21
$ 24
&
26
? 3F
' 27
^ 5E
– 2D
⁄ 2F
, 2C
;
3B
< 3C
(
28
[ 5B
{
7B
¦ 7C
¯ 7E
q w e
q
X X
q Operating mode
00: LSB 03: CW 07: CW-R
04: RTTY 08: RTTY-R 02: FIL2
01: USB
02: AM 05: FM 17: DV
18
a–z 61–7A
20
# 23
%
25
\
5C
" 22
` 60
+ 2B
✱
2A
. 2E
: 3A
=
3D
> 3E
)
29
] 5D
}
7D
_ 5F
@ 40
r t
w
X X
w Filter setting
01: FIL1
03: FIL3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
