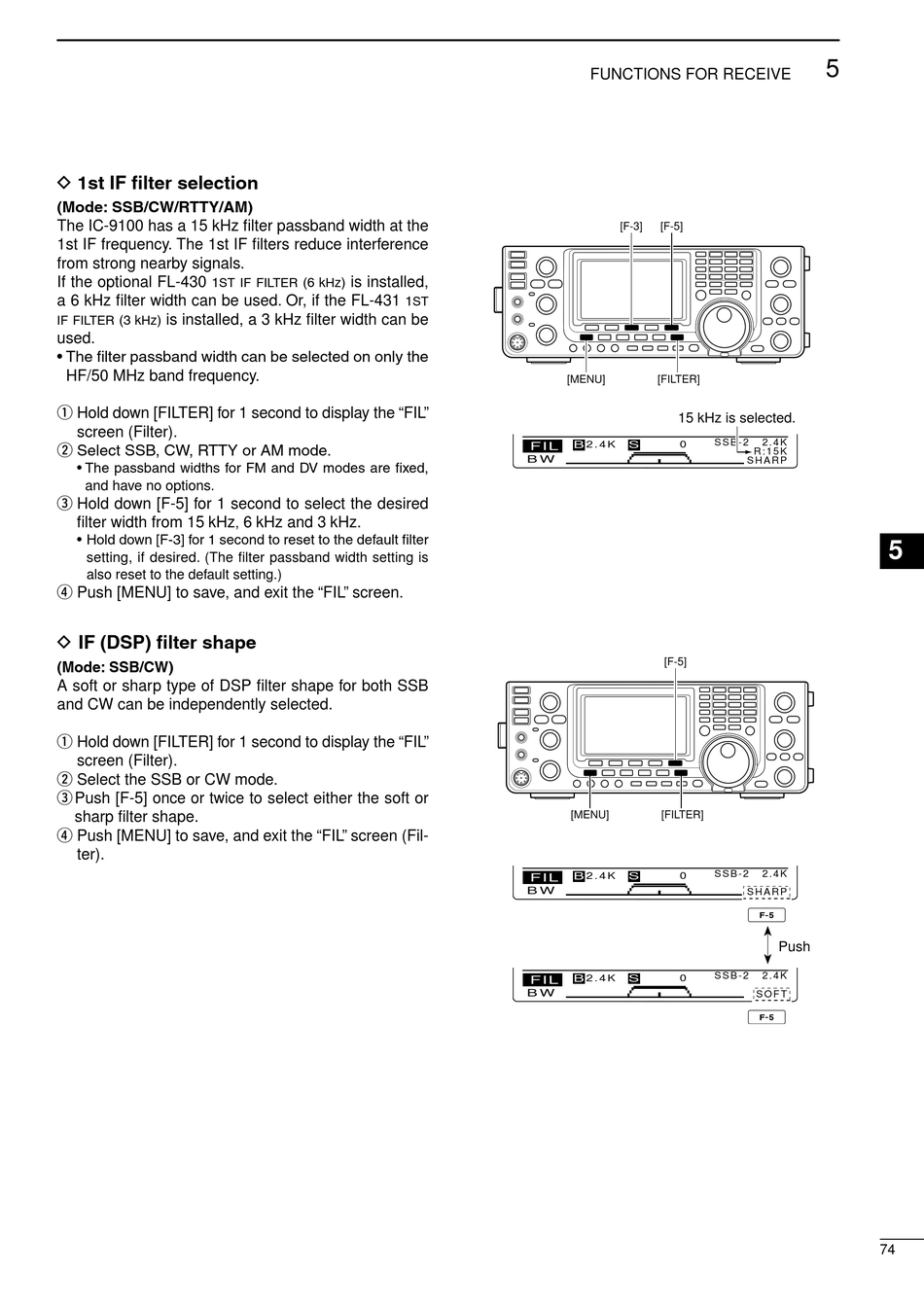

D 1st IF filter selection

(Mode: SSB/CW/RTTY/AM)
The IC-9100 has a 15 kHz filter passband width at the
1st IF frequency. The 1st IF filters reduce interference
from strong nearby signals.
1 st if filter
If the optional FL-430
a 6 kHz filter width can be used. Or, if the FL-431
(3 k
if filter h is installed, a 3 kHz filter width can be
z)
used.
• The filter passband width can be selected on only the
HF/50 MHz band frequency.
q Hold down [FILTER] for 1 second to display the "FIL"
screen (Filter).
w Select SSB, CW, RTTY or AM mode.
• The passband widths for FM and DV modes are fixed,
and have no options.
e Hold down [F-5] for 1 second to select the desired
filter width from 15 kHz
• Hold down [F-3] for 1 second to reset to the default filter
setting, if desired. (The filter passband width setting is
also reset to the default setting.)
r Push [MENU] to save, and exit the "FIL" screen.

D IF (DSP) filter shape

(Mode: SSB/CW)
A soft or sharp type of DSP filter shape for both SSB
and CW can be independently selected.
q Hold down [FILTER] for 1 second to display the "FIL"
screen (Filter).
w Select the SSB or CW mode.
e Push [F-5] once or twice to select either the soft or
sharp filter shape.
r Push [MENU] to save, and exit the "FIL" screen (Fil-
ter).
(6 k h
is installed,
z)
1
6 kHz and 3 kHz.
,
st
[MENU]
B 2 . 4 K
FIL
B W
[MENU]
B 2 . 4 K
FIL
B W
2 . 4 K
FIL B
B W
FUNCTIONS FOR RECEIVE
[F-3] [F-5]
[FILTER]
15 kHz is selected.
S S B - 2 2 . 4 K
S 0
R : 1 5 K
S H A R P
[F-5]
[FILTER]
S S B - 2 2 . 4 K
S 0
S H A R P
S S B - 2 2 . 4 K
0
S
S O F T
5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Push
16
17
18
19
20
21
74
