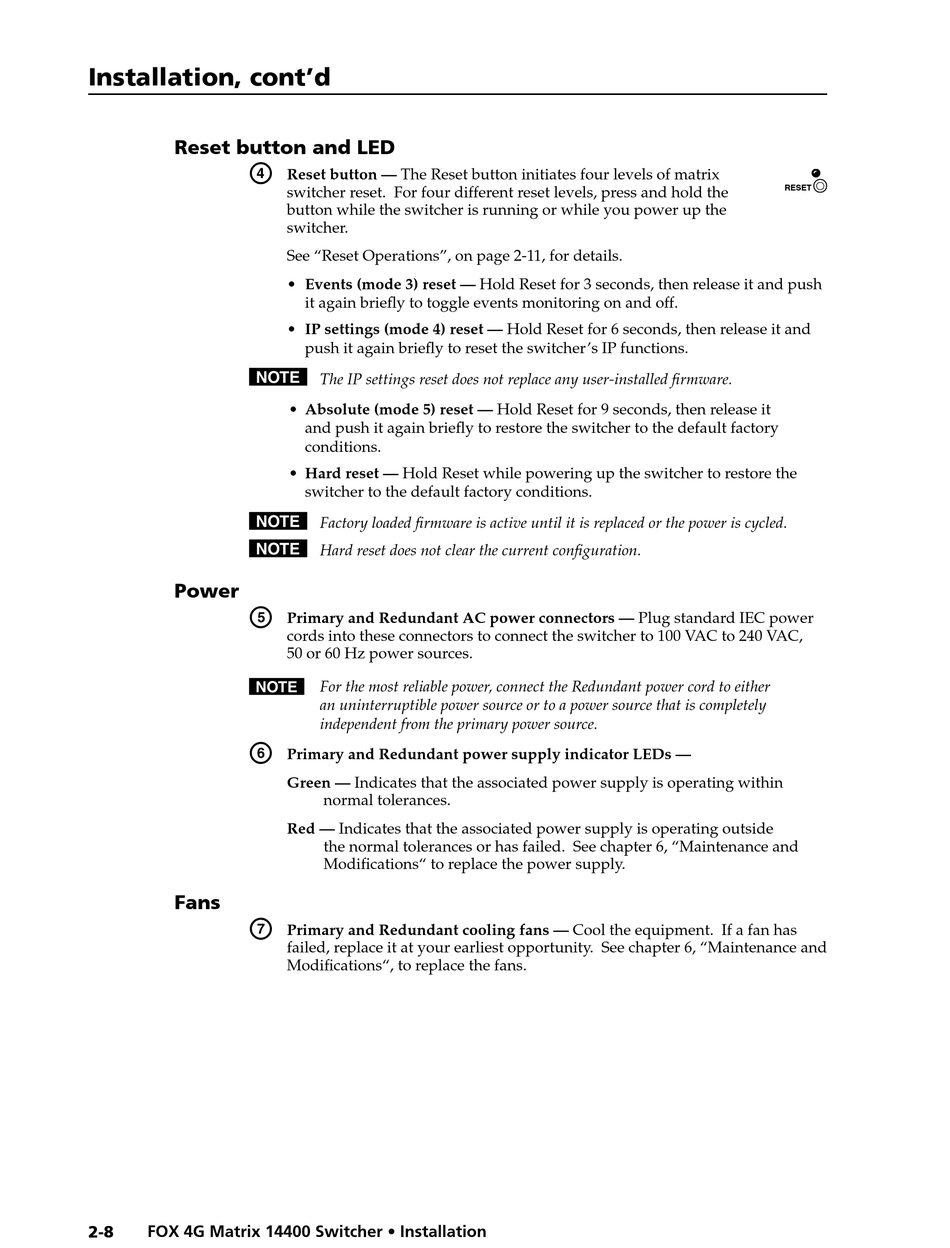

Installation, cont'd

Reset button and LED

d
N
N
N

Power

e
N For the most reliable power, connect the Redundant power cord to either
f

Fans

g
2-8 FOX 4G Matrix 14400 Switcher • Installation
Reset button — The Reset button initiates four levels of matrix
switcher reset. For four different reset levels, press and hold the
button while the switcher is running or while you power up the
switcher.
See "Reset Operations", on page 2-11, for details.
• Events (mode 3) reset — Hold Reset for 3 seconds, then release it and push
it again briefly to toggle events monitoring on and off.
• IP settings (mode 4) reset — Hold Reset for 6 seconds, then release it and
push it again briefly to reset the switcher's IP functions.
The IP settings reset does not replace any user-installed firmware.
• Absolute (mode 5) reset — Hold Reset for 9 seconds, then release it
and push it again briefly to restore the switcher to the default factory
conditions.
• Hard reset — Hold Reset while powering up the switcher to restore the
switcher to the default factory conditions.
Factory loaded firmware is active until it is replaced or the power is cycled.
Hard reset does not clear the current configuration.
Primary and Redundant AC power connectors — Plug standard IEC power
cords into these connectors to connect the switcher to 100 VAC to 240 VAC,
50 or 60 Hz power sources.
an uninterruptible power source or to a power source that is completely
independent from the primary power source.
Primary and Redundant power supply indicator LEDs —
Green — Indicates that the associated power supply is operating within
normal tolerances.
Red — Indicates that the associated power supply is operating outside
the normal tolerances or has failed. See chapter 6, "Maintenance and
Modifications" to replace the power supply.
Primary and Redundant cooling fans — Cool the equipment. If a fan has
failed, replace it at your earliest opportunity. See chapter 6, "Maintenance and
Modifications", to replace the fans.
RESET
