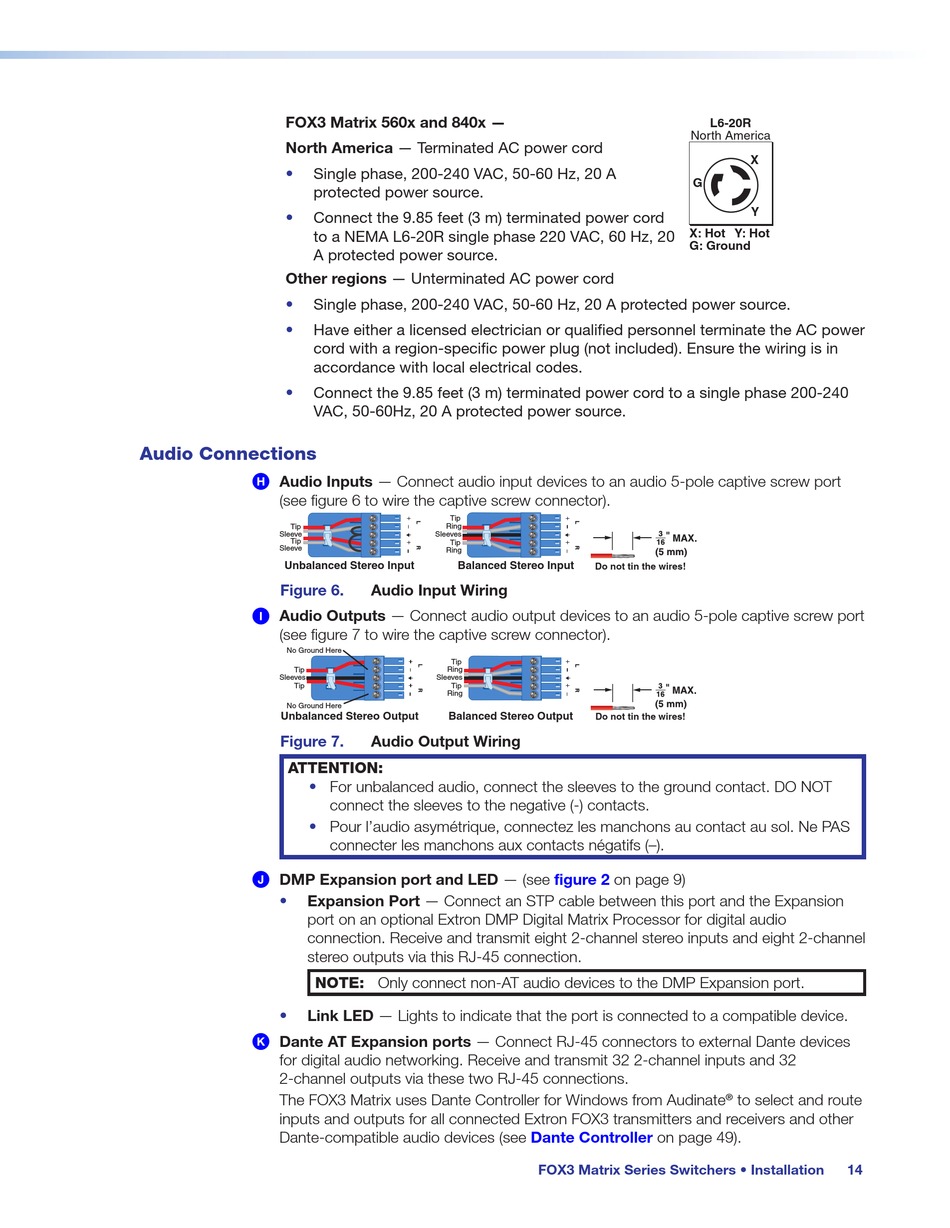

FOX3 Matrix 560x and 840x —
North America — Terminated AC power cord
• Single phase, 200-240 VAC, 50-60 Hz, 20 A
protected power source.
• Connect the 9.85 feet (3 m) terminated power cord
to a NEMA L6-20R single phase 220 VAC, 60 Hz, 20
A protected power source.
Other regions — Unterminated AC power cord
• Single phase, 200-240 VAC, 50-60 Hz, 20 A protected power source.
• Have either a licensed electrician or qualified personnel terminate the AC power
cord with a region-specific power plug (not included). Ensure the wiring is in
accordance with local electrical codes.
• Connect the 9.85 feet (3 m) terminated power cord to a single phase 200-240
VAC, 50-60Hz, 20 A protected power source.

Audio Connections

Audio Inputs — Connect audio input devices to an audio 5-pole captive screw port
H
(see figure 6 to wire the captive screw connector).
Tip
Sleeve
Tip
Sleeve
Unbalanced Stereo Input
Figure 6.
Audio Outputs — Connect audio output devices to an audio 5-pole captive screw port
I
(see figure 7 to wire the captive screw connector).
No Ground Here
Tip
Sleeves
Tip
No Ground Here
Unbalanced Stereo Output
Figure 7.
ATTENTION:
•
•
DMP Expansion port and LED — (see
J
• Expansion Port — Connect an STP cable between this port and the Expansion
port on an optional Extron DMP Digital Matrix Processor for digital audio
connection. Receive and transmit eight 2-channel stereo inputs and eight 2-channel
stereo outputs via this RJ-45 connection.
NOTE: Only connect non-AT audio devices to the DMP Expansion port.
Link LED — Lights to indicate that the port is connected to a compatible device.
•
Dante AT Expansion ports — Connect RJ-45 connectors to external Dante devices
K
for digital audio networking. Receive and transmit 32 2-channel inputs and 32
2-channel outputs via these two RJ-45 connections.
The FOX3 Matrix uses Dante Controller for Windows from Audinate
inputs and outputs for all connected Extron FOX3 transmitters and receivers and other
Dante-compatible audio devices (see
Tip
Ring
Sleeves
Tip
Ring
Balanced Stereo Input
Audio Input Wiring
Tip
Ring
Sleeves
Tip
Ring
Balanced Stereo Output
Audio Output Wiring
For unbalanced audio, connect the sleeves to the ground contact. DO NOT
connect the sleeves to the negative (-) contacts.
Pour l'audio asymétrique, connectez les manchons au contact au sol. Ne PAS
connecter les manchons aux contacts négatifs (–).
L6-20R
North America
G
X: Hot Y: Hot
G: Ground
Do not tin the wires!
Do not tin the wires!
figure 2 on page 9)
Dante Controller on page 49).
FOX3 Matrix Series Switchers • Installation
X
Y
to select and route
®
14
