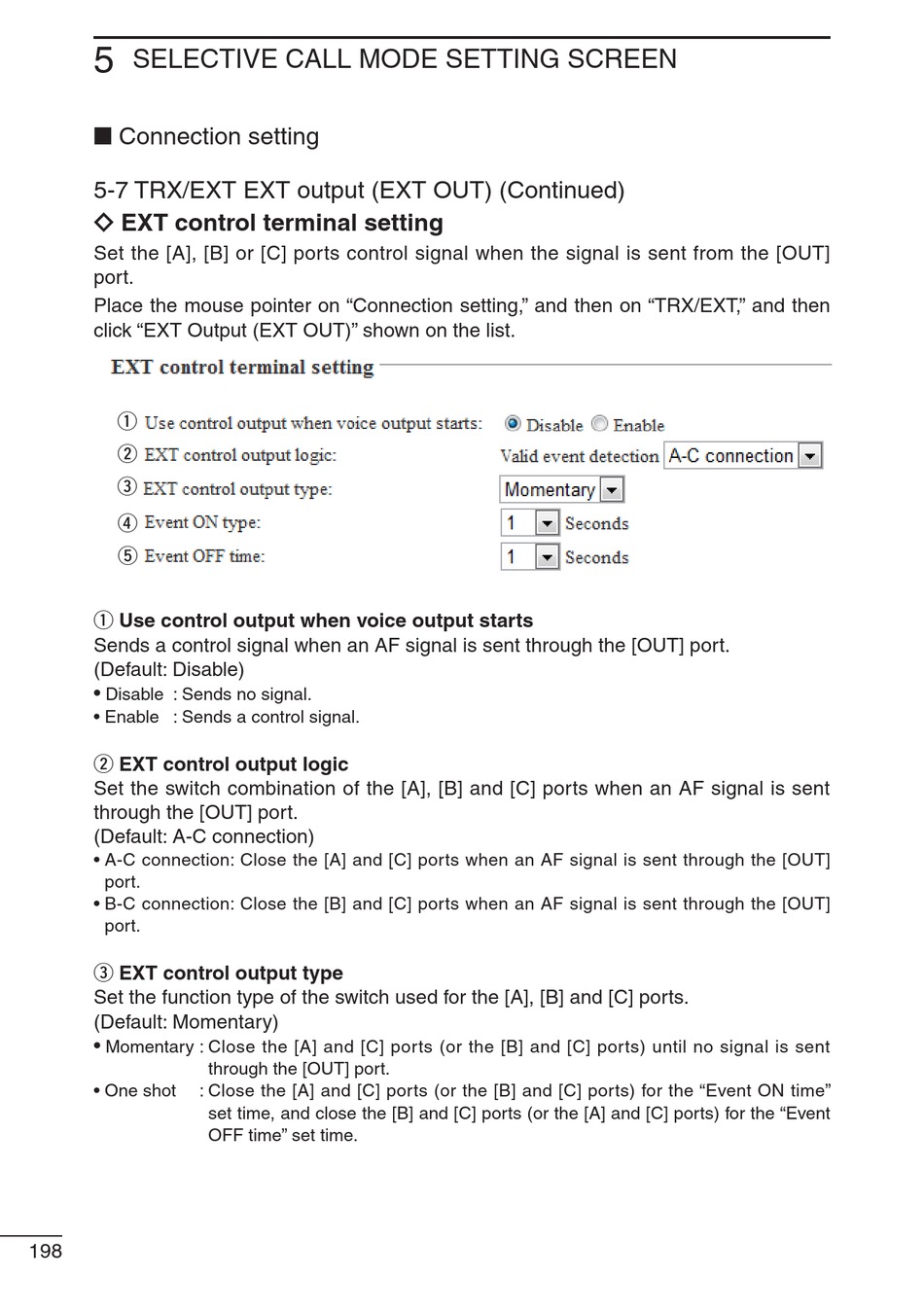

Icom VE-PG2 Instruction Manual page 198

5
SELECTIVE CALL MODE SETTING SCREEN
■ Connection setting
5-7 TRX/EXT EXT output (EXT OUT) (Continued)
ï EXT control terminal setting
Set the [A], [B] or [C] ports control signal when the signal is sent from the [OUT]
port.
Place the mouse pointer on "Connection setting," and then on "TRX/EXT," and then
click "EXT Output (EXT OUT)" shown on the list.
q
w
e
r
t
q Use control output when voice output starts
Sends a control signal when an AF signal is sent through the [OUT] port.
(Default: Disable)
•
Disable : Sends no signal.
• Enable : Sends a control signal.
w EXT control output logic
Set the switch combination of the [A], [B] and [C] ports when an AF signal is sent
through the [OUT] port.
(Default: A-C connection)
• A-C connection: Close the [A] and [C] ports when an AF signal is sent through the [OUT]
port.
• B-C connection: Close the [B] and [C] ports when an AF signal is sent through the [OUT]
port.
e EXT control output type
Set the function type of the switch used for the [A], [B] and [C] ports.
(Default: Momentary)
•
Momentary : Close the [A] and [C] ports (or the [B] and [C] ports) until no signal is sent
• One shot : Close the [A] and [C] ports (or the [B] and [C] ports) for the "Event ON time"
198
through the [OUT] port.
set time, and close the [B] and [C] ports (or the [A] and [C] ports) for the "Event
OFF time" set time.
