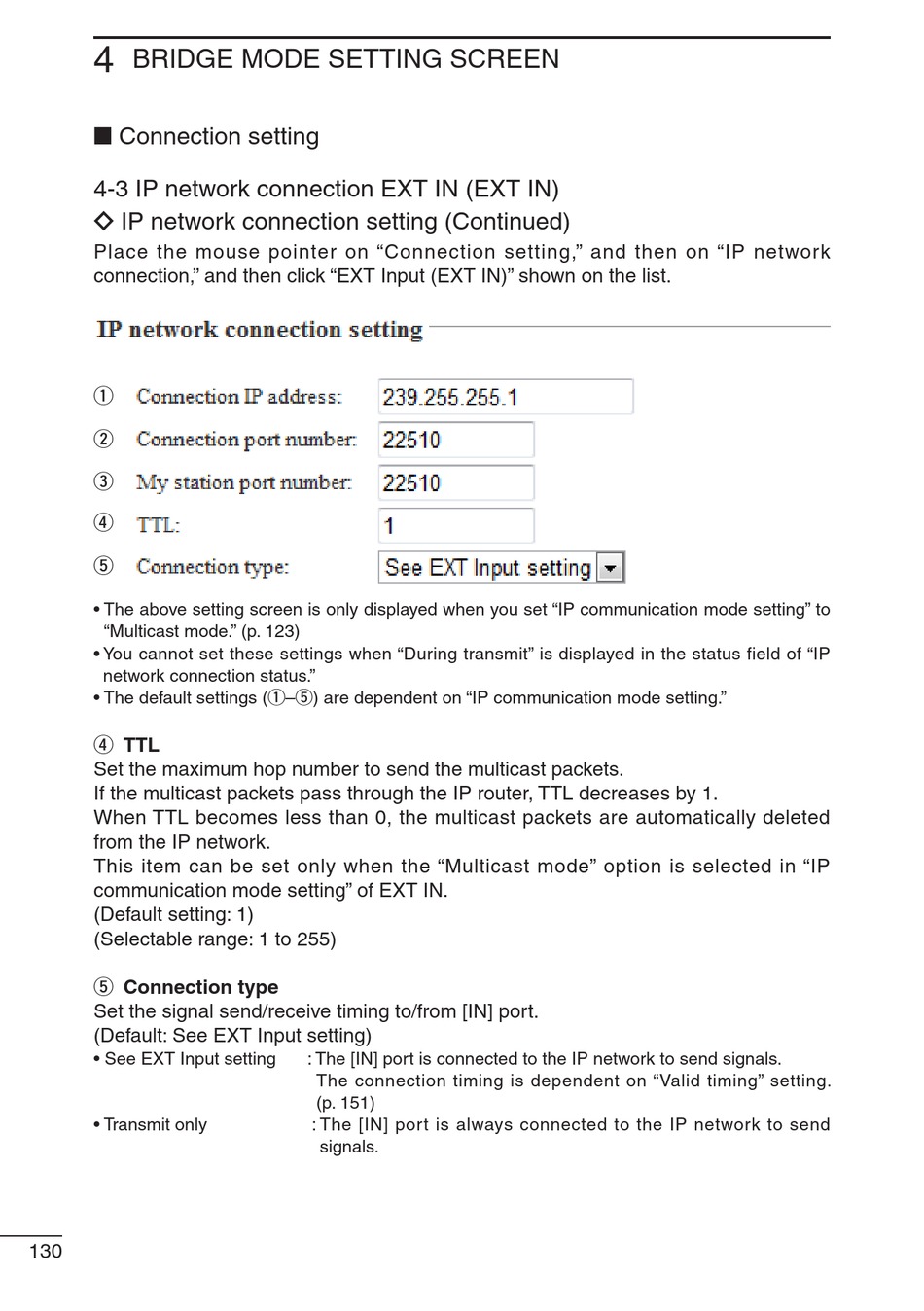

BRIDGE MODE SETTING SCREEN
■ Connection setting
4-3 IP network connection EXT IN (EXT IN)
ï IP network connection setting (Continued)
Place the mouse pointer on "Connection setting," and then on "IP network
connection," and then click "EXT Input (EXT IN)" shown on the list.
q
w
e
r
t
• The above setting screen is only displayed when you set "IP communication mode setting" to
"Multicast mode." (p. 123)
• You cannot set these settings when "During transmit" is displayed in the status field of "IP
network connection status."
• The default settings (q–t) are dependent on "IP communication mode setting."
r TTL
Set the maximum hop number to send the multicast packets.
If the multicast packets pass through the IP router, TTL decreases by 1.
When TTL becomes less than 0, the multicast packets are automatically deleted
from the IP network.
This item can be set only when the "Multicast mode" option is selected in "IP
communication mode setting" of EXT IN.
(Default setting: 1)
(Selectable range: 1 to 255)
t Connection type
Set the signal send/receive timing to/from [IN] port.
(Default: See EXT Input setting)
• See EXT Input setting
• Transmit only
130
: The [IN] port is connected to the IP network to send signals.
The connection timing is dependent on "Valid timing" setting.
(p. 151)
: The [IN] port is always connected to the IP network to send
signals.
